Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
2315394, 02315394, 002315394
2315394, 02315394, 002315394
Parts for Grove GMK 6180, Figure 2315389-ETL:

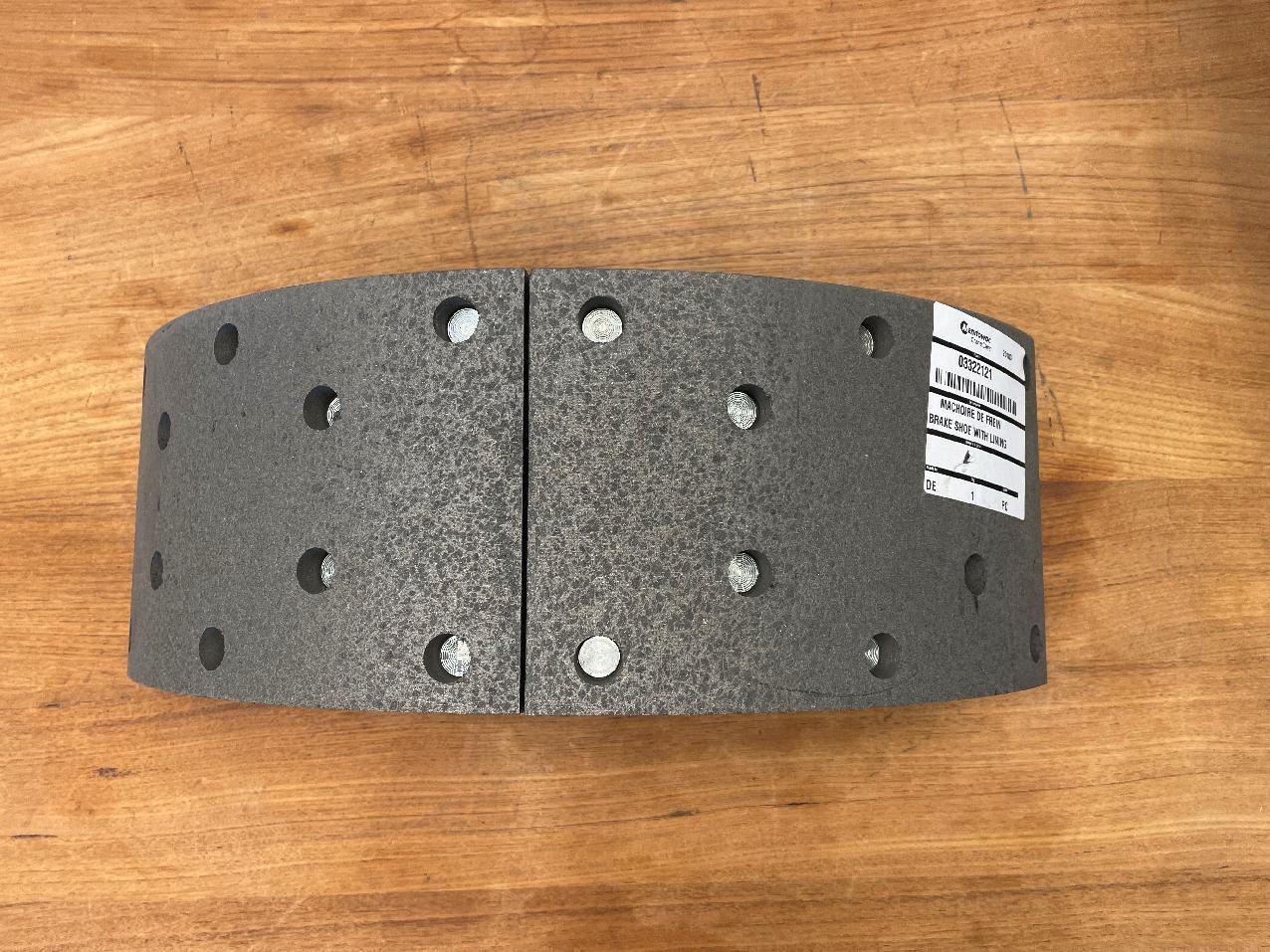

Part Number 2315394: BRAKE SHOE WITH LINING 500X160 MM
Part Number 2315394: BRAKE SHOE WITH LINING 500X160 MM
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 2315390 | SCREW PLUG | 33 |
| 2 | 2315391 | BRAKE ANCHOR PLATE | 12 |
| 3 | 2315392 | BRAKE COVER PLATE | 3.28 |
| 4 | 2315393 | TENSION SPRING | 0.13 |
| 5 | 2315394 | BRAKE SHOE WITH LINING 500X160 MM | 9.60 |
| 6 | 2315395 | EXPANDER UNIT SIMPLEX | 5.16 |
| 7 | 1927225 | NUT | 0.185 |
