Figures in which the part appears:
3143573-ETL (Grove GMK 3050-1 CHANGE-OVER GEAR)
Also known as:
2314682, 02314682, 002314682
Parts for Grove GMK 3050-1, Figure 3143573-ETL:

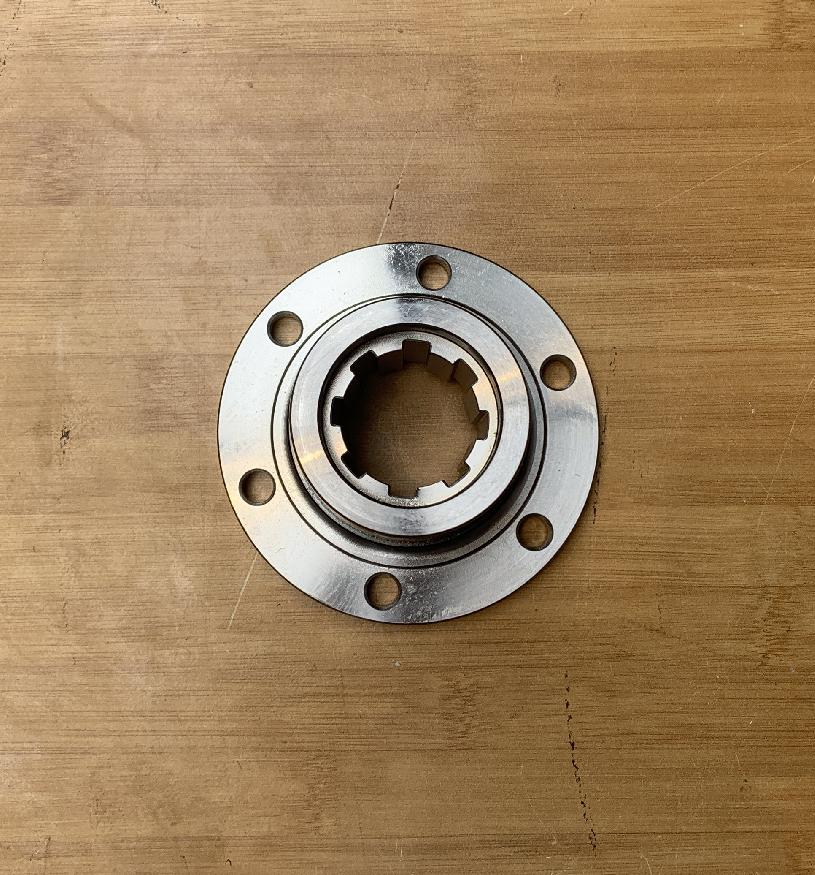

Part Number 2314682: DRIVE FLANGE
Pos nr Part number Description Weight in kg
1 3145013 CLUTCH REGULATOR CPL. 4.3
2 3319625 PRESSURE ROD 0.105
3 3145014 CLUTCH FORK
4 3144938 STOPPER
5 3324953 BALL BEARING
6 4155025 SEAL
7 3319632 SEAL 0.180
8 3328303 GEAR REGULATOR CPL. 10
9 3328398 PRESSURE REDUCING VALVE 0.445
10 3324719 BREATHER 0.045
11 4155129 COVER
12 3319634 PISTON 0.001
13 3145015 GUIDE RING 0.1
14 3319636 OUTER LAMELLA 0.11
15 3145016 INNER DISC 0.058
16 3319638 O-RING 0.005
17 3319639 ROTARY SHAFT SEAL 0.075
18 3319640 SEAL 0.005
19 3319641 PROBE 0.14
20 4155000 SYNCHRONIZATION DRIVE CPL.
21 4155002 SEALING RING
22 3325671 WASHER
23 3325670 DRIVE FLANGE
24 4155771 AIR BLEED PIECE
25 4155003 SEAL
26 3324729 FILTER ELEMENT 0.16
27 4155004 SYNCHRONIZATLON CPL.
28 4155005 ROTARY SHAFT SEAL 0.02
29 3328401 DISENGAGE FLANGE 0.001
30 3328402 SEAL 0.010
31 4155006 RELEASE SHAFT
32 4155007 HEXAGON SCREW
33 4155008 HEXAGON SCREW
34 4155009 HEXAGON SCREW
35 4155010 SHIFT FORK
36 4155011 SLIDING PAD
37 4155012 STOP BOLT
38 4155013 PRESSURE SPRING
39 4155014 HEXAGON SCREW
40 4155707 SCREW PLUG
41 4155708 O-RING 0.002
42 4155903 SCREW PLUG
43 4155902 SCREW PLUG
44 0117142 SEALING RING 0.005
45 3324954 BRAKE COVER
46 4155127 SWITCH 0.280
47 1377793 SEALING RING 0.01
48 3326960 PULSE GENERATOR 0.3
49 3324717 PISTON 0.25
50 4155901 0-OING
51 3324720 O-RING 0.170
52 1925770 RETAINING DEVICE 0.015
53 4155770 REED SWITCH 0.24
54 3141868 SLIDING SLEEVE 0.76
55 3324721 SEAL 0.005
56 4155638 END PLATE
57 2314682 DRIVE FLANGE 1
58 1372209 O-RING
59 4155377 SHAFT
60 4155402 BUSH
