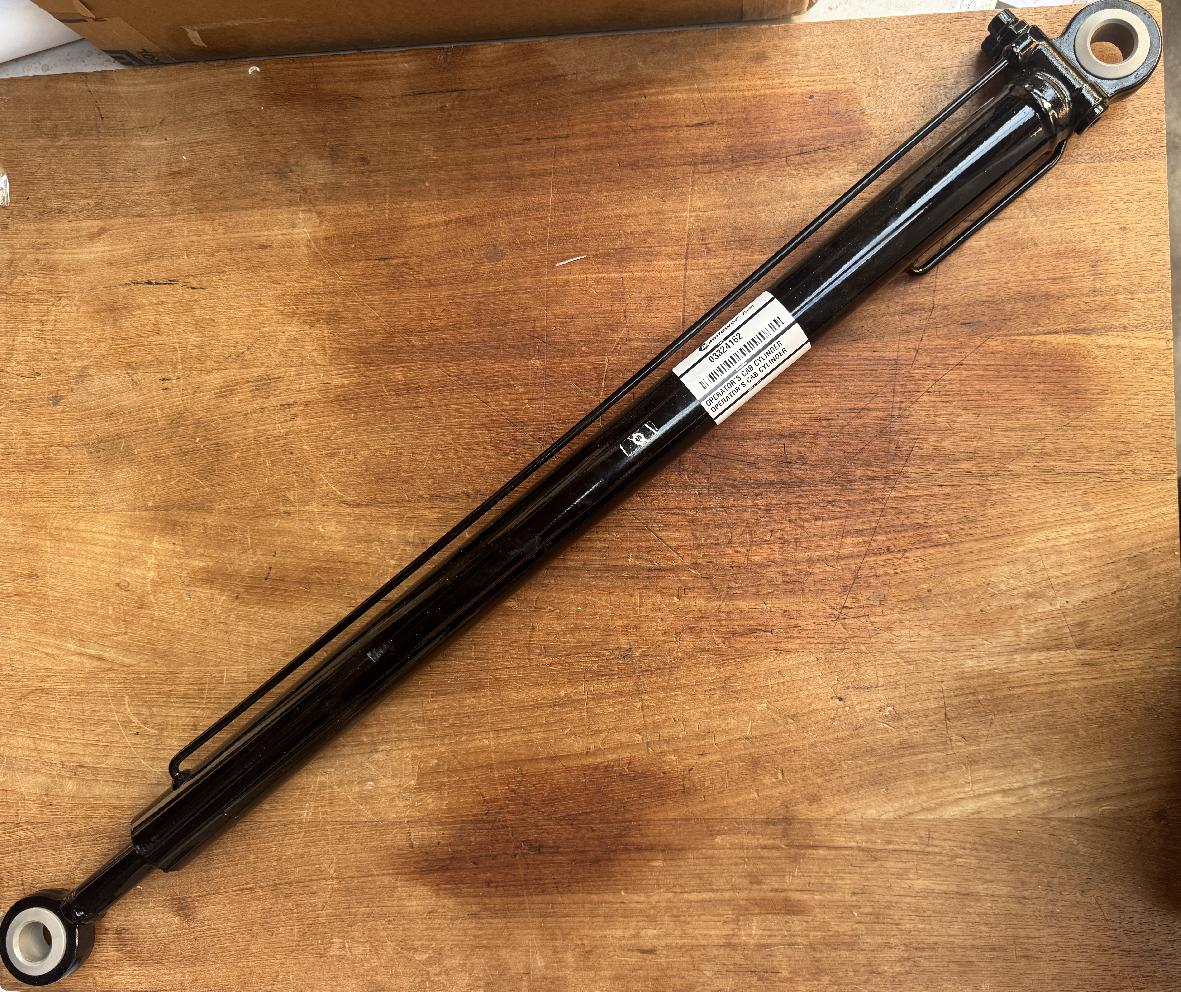

Grove 3324162 - CYLINDER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3324162, 03324162, 003324162

Parts for Grove GMK 3050-1, Figure 3206765-ETL:
Part Number 3324162: CYLINDER

Pos nr	Part number	Description	Weight in kg
1	3324162	CYLINDER	6.66
2	3325220	HAND PUMP	3.3
3	1930170	DRIVERS CAB, CLOSURE	2.6
4	0437182	HEXAGON SCREW M10X25	0.120
5	0437643	HEXAGON NUT M10	0.010
6	1368030	WASHER M10	0.005
7	0437190	HEXAGON SCREW M12X30	0.04
8	0437529	WASHER 12	0.006
9	1576173	L-CONNECTION NOZZLE
10	2310952	PRESSURE LIMITING VALVE	0.18
11	1575140	W-CONNECTION NOZZLE	0.04
12	1576170	T-NOZZLE
13	3323864	SCREW-IN FITTING
14	0437644	HEXAGON NUT M12	0.084
15	1576167	CONNECTING NOZZLE, ELBOW	0.03
16	2254329	SCREW COUPUNG
