Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3009042-ETL (Grove GMK 3055 )
3009042-ETL (Grove GMK 3050-1 COUNTERWEIGHT (7,6 t)
3252961-ETL (Grove GMK 3060 )
3253001-ETL (Grove GMK 3060 )
3009042-ETL (Grove GMK 3050-1 COUNTERWEIGHT (7,6 t)
3252961-ETL (Grove GMK 3060 )
3253001-ETL (Grove GMK 3060 )
Also known as:
3151215, 03151215, 003151215
3151215, 03151215, 003151215
Parts for Grove GMK 3060, Figure 3252961-ETL:

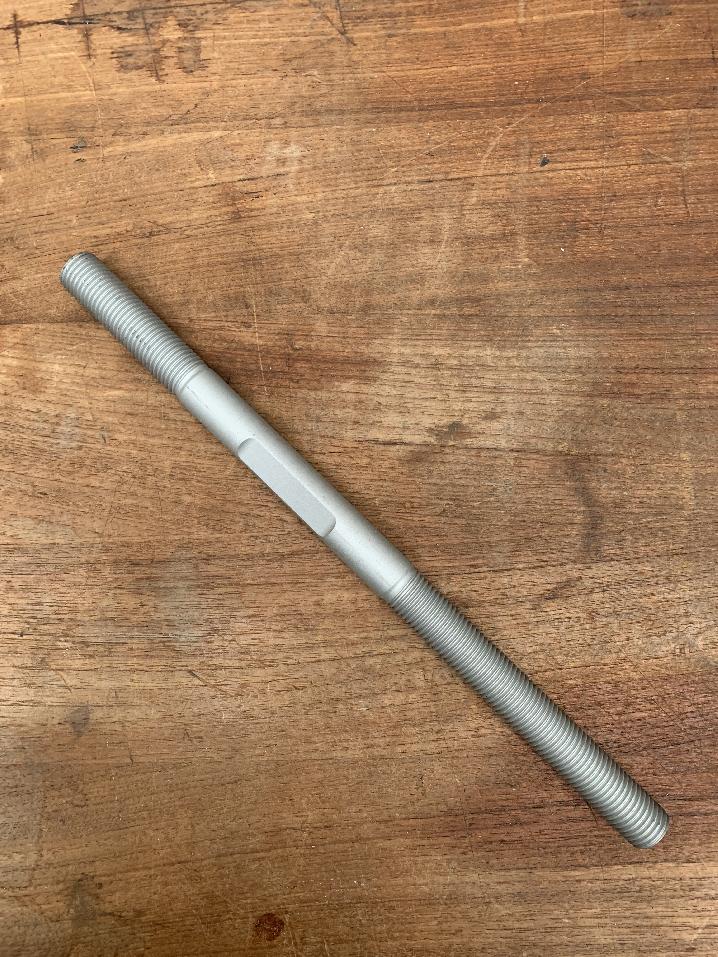

Part Number 3151215: THREADED BOLT M22X375
Part Number 3151215: THREADED BOLT M22X375
Pos nr | Part number | Description | Weight in kg |
---|---|---|---|
10 | 3252964 | COUNTER WEIGHT-PLATE 4, ASSY. | |
11 | 3082445 | COUNTERWEIGHT PLATE 2(1 T) | 1.039 |
12 | 3151214 | LOCK | |
13 | 3151215 | THREADED BOLT M22X375 | 0.97 |
14 | 3151216 | STIRRUP | |
15 | 1682004 | HEXAGON NUT | 0.001 |
16 | 0439484 | HEXAGON NUT | |
17 | 0026006 | WASHER | |
18 | 0434411 | HEXAGON SCREW | |
19 | 0439428 | HEXAGON NUT | 0.122 |
20 | 3252968 | RUBBER | |
21 | 3252969 | THREADED PIN | |
22 | 3259680 | PLATE |
