Search for Crane Part number

(click on image to open PDF document)
Figures in which the part appears:
3009042-ETL (Grove GMK 3050-1 COUNTERWEIGHT (7,6 t)
3009042-ETL (Grove GMK 3055 )
3252961-ETL (Grove GMK 3060 )
3253001-ETL (Grove GMK 3060 )
3009042-ETL (Grove GMK 3055 )
3252961-ETL (Grove GMK 3060 )
3253001-ETL (Grove GMK 3060 )
Also known as:
3151214, 03151214, 003151214
3151214, 03151214, 003151214
Parts for Grove GMK 3060, Figure 3253001-ETL:

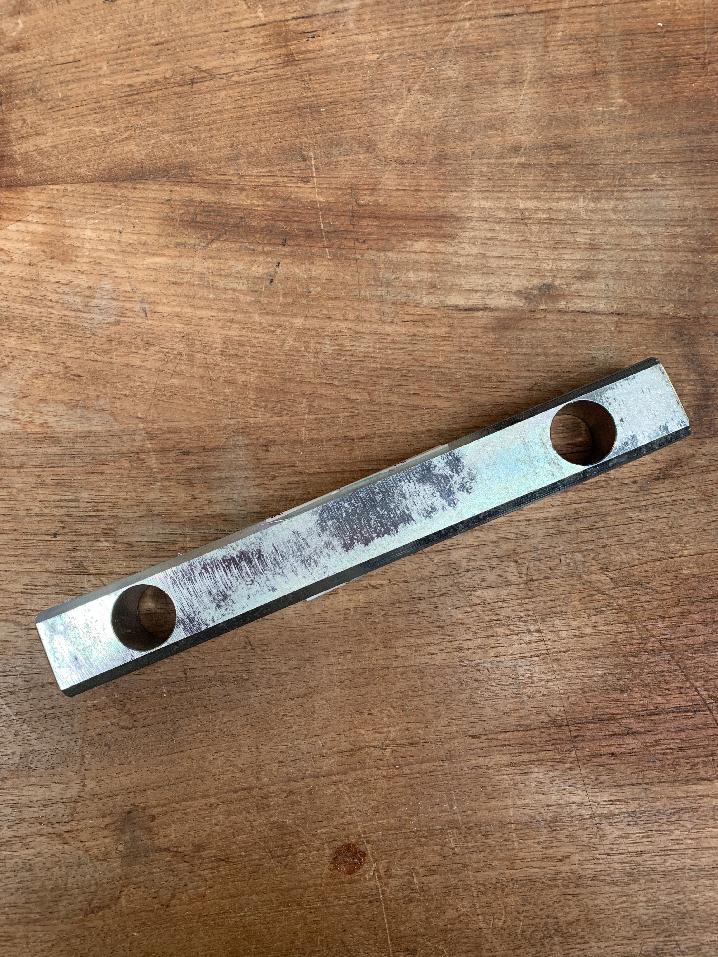

Part Number 3151214: LOCK
Part Number 3151214: LOCK
Pos nr | Part number | Description | Weight in kg |
---|---|---|---|
10 | 3253004 | COUNTER WEIGHT-PLATE | |
11 | 3082445 | COUNTERWEIGHT PLATE 2(1 T) | 1.039 |
12 | 3151214 | LOCK | 1.812 |
13 | 3151215 | THREADED BOLT M22X375 | 0.97 |
14 | 3151216 | STIRRUP | 2.030 |
15 | 1682004 | HEXAGON NUT | 0.065 |
16 | 0439484 | HEXAGON NUT | 0.072 |
17 | 0026006 | WASHER | |
18 | 2313237 | HEXAGON BOLT | 0.001 |
19 | 0439428 | HEXAGON NUT | 0.122 |
20 | 3252968 | RUBBER | |
21 | 3252969 | THREADED PIN | |
22 | 3259663 | PLATE | |
23 | 3259680 | PLATE |
