Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3057635, 03057635, 003057635
3057635, 03057635, 003057635
Parts for Grove GMK 4080-1, Figure 3090445-ETL:

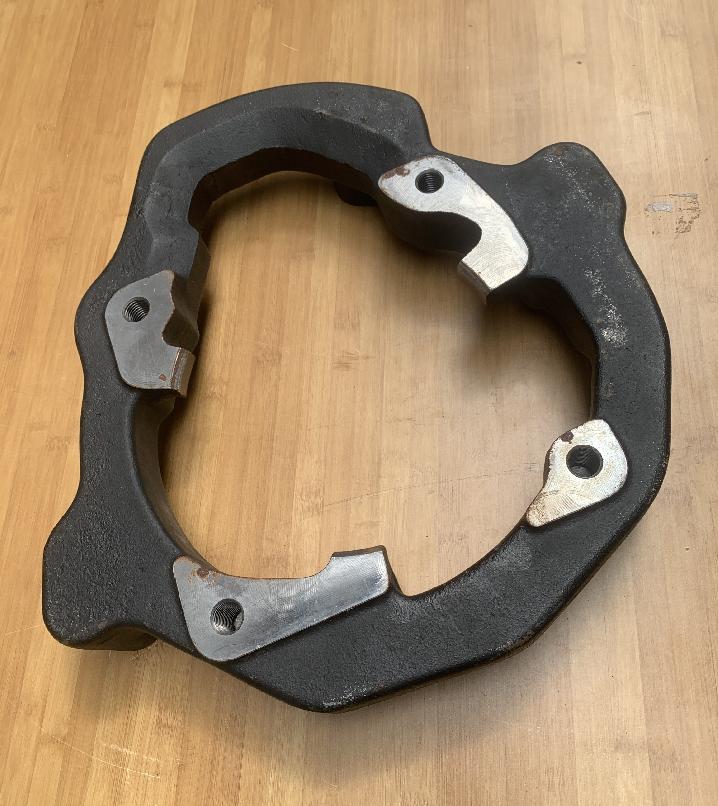

Part Number 3057635: PLATE
Part Number 3057635: PLATE
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3057581 | HUB | 9.700 |
| 3 | 3057690 | ENGINE FRAME, RIGHT | 36.300 |
| 4 | 3057572 | ENGINE FRAME, LEFT | 39.600 |
| 8 | 3057702 | SPACER SLEEVE | 0.050 |
| 11 | 3057704 | CLUTCH | 4 |
| 15 | 3057635 | PLATE | 35 |
| 17 | 3057582 | PLATE | 0.160 |
| 18 | 3057750 | FLYWHEEL | 15.400 |
| 20 | 3323933 | CLUTCH | 42 |
| 23 | 3057706 | SPACER | 0.01 |
| 57 | 1069223 | O-RING | 0.1 |
