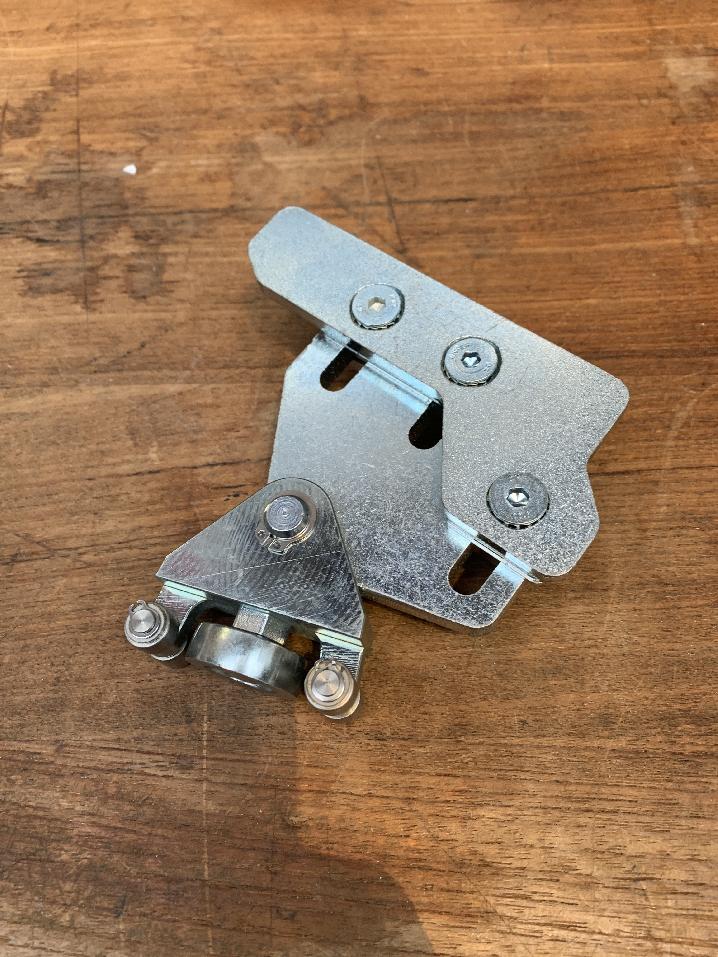

Grove 3093962 - DOOR GUIDE, REAR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3093962, 03093962, 003093962

Parts for Grove GMK 4080-1, Figure 3090627-ETL:
Part Number 3093962: DOOR GUIDE, REAR

Pos nr	Part number	Description	Weight in kg
202	3322846	DOOR PANE	5
203	3322693	SEALING STRIP (PER METER)	0.300
210	3093848	SLIDING DOOR	53
230	3093849	LOCKING	3.900
230	3093922	HANDLE MOULDING	0.07
230	3093925	PULL ROD, LONG	0.038
230	3093926	PULL ROD, SHORT	0.03
230	3326514	PULL SHACKLE	0.05
230	3326632	ROTARY LATCH LOCK, CPL.	0.57
230	3326633	DOOR HANDLE, CPL.	1.12
230	3326634	DOOR HANDLE, INSIDE, CPL.	0.07
230	3041322	HANDLE SUPER/CAB
230.01.01	1685965	ROTARY LATCH LOCK	0.428
230.15.01	3326142	DOOR HANDLE	0.360
230.15.03	3326144	LOCK	2
230.60.01	3322704	DOOR HANDLE INSIDE	0.068
250	3093850	DOOR COVERING	3.580
400	3093961	DOOR GUIDE, FRONT	1.1
400	3099535	SUPPORTING ROLLER	0.340
400	3326520	PLATE
450	3093962	DOOR GUIDE, REAR	0.191
450	3099537	SUPPORTING ROLLER	0.18
500	3322371	DOOR GUIDE, TOP	0.4
500	3322543	ROLLER	0.01
500	3322544	BEARING PIN	0.015
500	3322691	PLAIN BEARING	0.005
