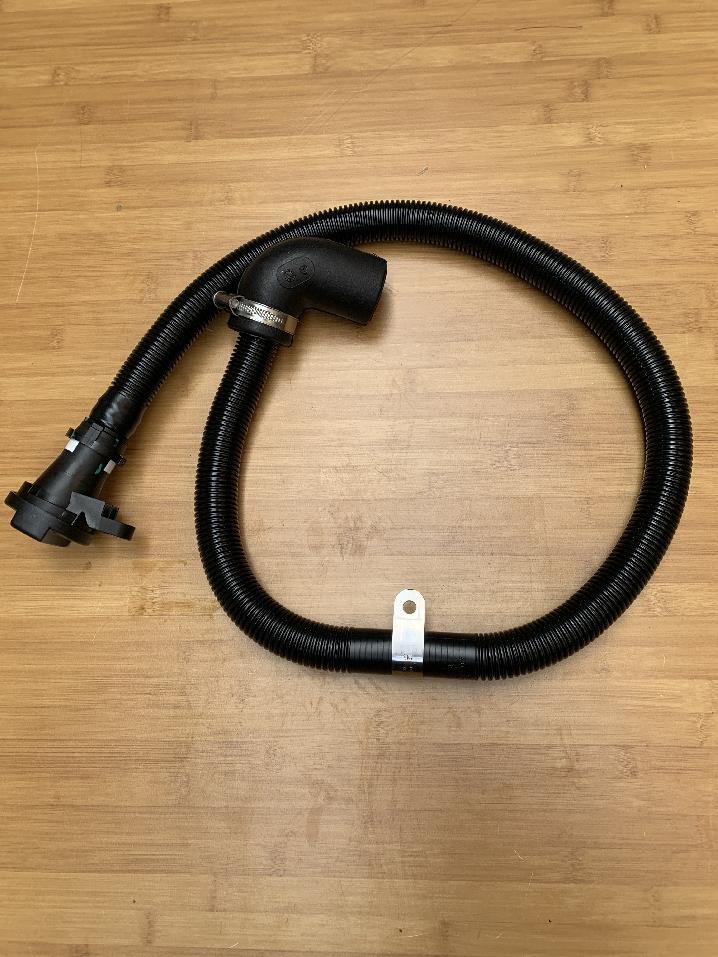

Grove 3140159 - OIL FILLER PIPE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3140159, 03140159, 003140159

Parts for Grove GMK 5110-1, Figure 3204562-ETL:
Part Number 3140159: OIL FILLER PIPE

Pos nr	Part number	Description	Weight in kg
1	3481258	DIESEL ENGINE
2	3329669	AUTOMATIC GEAR
3	3010565	LINER	3.4
4	3010566	LINER	3.4
5	1369406	HEXAGON BOLT
6	2314494	WASHER M8X20	0.180
7	1376907	HEXAGON BOLT
8	3317155	CLAMP WASHER	0.03
9	0106067	HEXAGON SOCKET HEAD CAP SCREW
10	1207283	HEXAGON SCREW
11	0103218	HEXAGON SCREW	0.103
12	0434709	HEXAGON NUT	0.03
14	0437742	HEXAGON NUT M6	0.005
16	3046204	PIPE CLAMP
17	1925033	WASHER 6	0.005
18	3317252	MOTOR BEARING	4.39
19	3041445	SHROUD	0.17
20	3317253	MOTOR BEARING	3.45
22	0438925	HEXAGON SCREW	0.07
27	3046052	BALL-COCK	1
28	1922602	SCREW-IN FITTING
29	2312503	FUNCTION NUT	0.03
30	2312354	CLAMP	0.04
31	1147202	HEXAGON SOCKET HEAD CAP SCREW
33	1571750	SUPPORT RAIL NUT	0.030
34	3329638	PIPE
35	3329555	KIT RING/HOLLOW SCREW
36	3172207	HOLDING
37	0027079	HEXAGON SCREW M8	0.014
38	1686701	WASHER	0.005
39	2255852	OIL CHANGE VALVE	0.112
40	0208008	W-CONNECTION NOZZLE	0.082
41	3140159	OIL FILLER PIPE	0.001
42	3489064	HOLDER
43	3487708	HOLDER
47	0437181	HEXAGON SCREW M10X20	0.022
