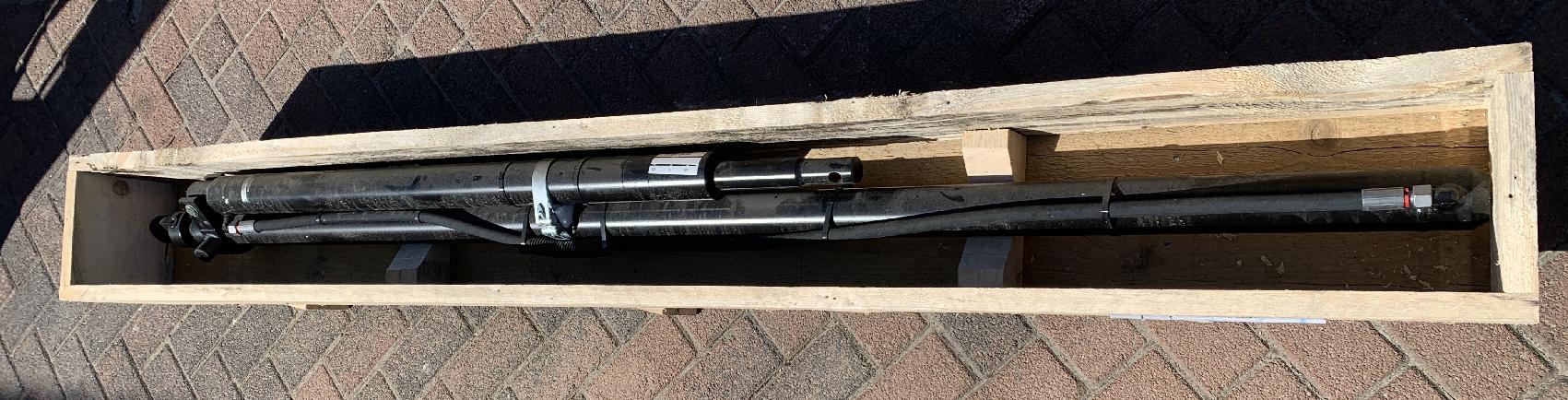

Grove 3327769 - CYLINDER CLUSTER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3327769, 03327769, 003327769

Parts for Grove GMK 5110-1, Figure 3204768-ETL:
Part Number 3327769: CYLINDER CLUSTER

Pos nr	Part number	Description	Weight in kg
1	3207559	HOSES, SUPPORT FRONT
2	3329931	OUTRIGGER CYLINDER	103
3	3327769	CYLINDER CLUSTER	88
4	2318318	CLAMP (PAIR)	0.015
5	1571750	SUPPORT RAIL NUT	0.030
6	1147651	SCREW-IN FITTING	0.042
7	1207473	HEXAGON SOCKET HEAD CAP SCREW	0.145
9	3322773	COUNTERSUNK HEAD TAPPING SCREW	0.001
12	3204770	DEPOT TROUGH CPL.	3.500
13	3320846	POWER SLAWING CHAIN	2
15	3317227	PIPE ELBOW	0.26
