Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3207552-ETL (Grove GMK 5110-1 )
3207552-ETL (Grove GMK 5130-2 )
GMK (Grove GMK )
Also known as:
3165968, 03165968, 003165968
Parts for Grove GMK 5130-2, Figure 3207552-ETL:

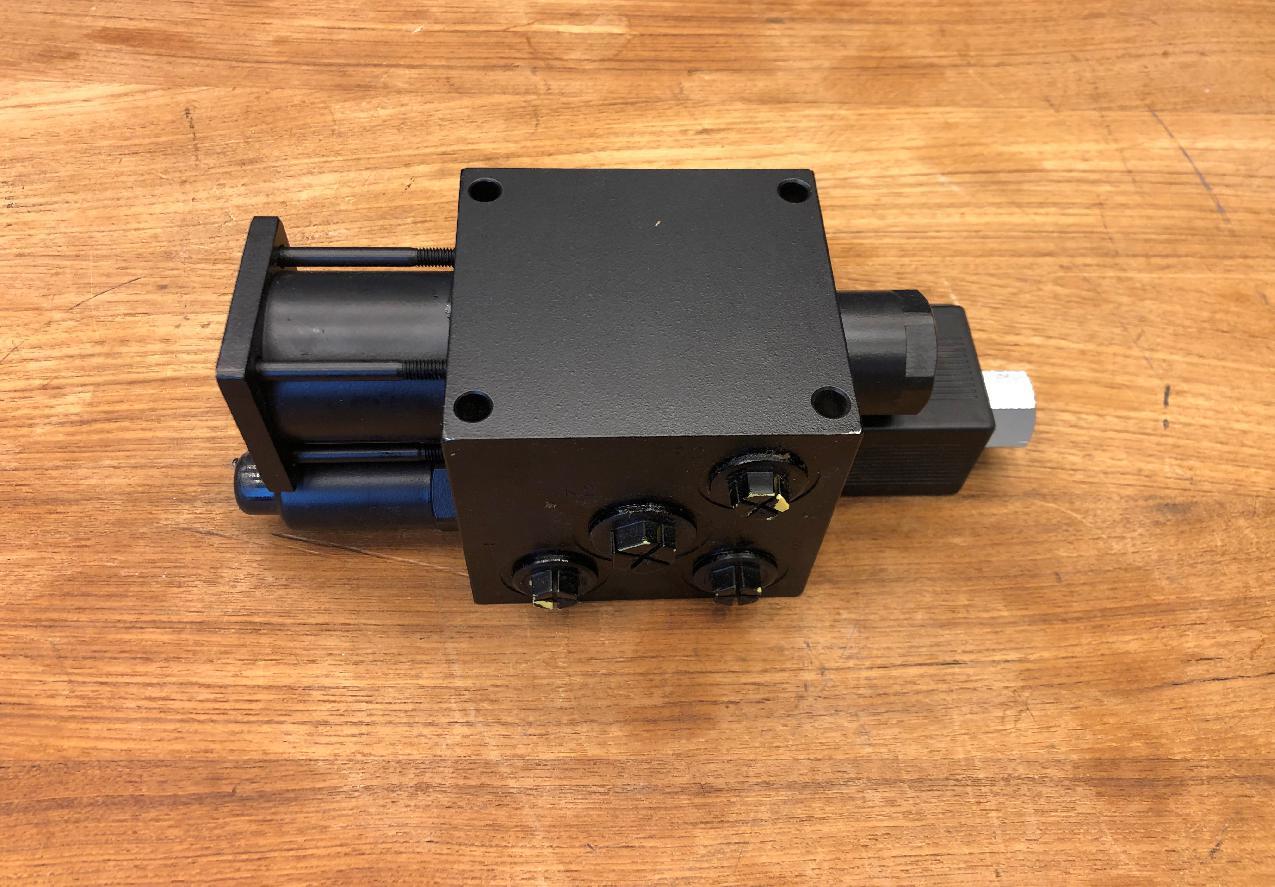

Part Number 3165968: AXLE BLOCKING VALVE, CPL.
Pos nr Part number Description Weight in kg
1 3207567 HOSES, CHASSIS
2 3206031 HYDRAULIC PUMPS
3 3207566 OIL TANK
4 3130320 HALF-BLOCK HYDRAULIC STEERING CPL
5 3207553 VALVE UNIT STEERING CHASSIS FRAME
6 3139283 STEERING CYLINDER 10.62
7 3041176 HOSE CLAMP 0.09
8 3078139 EMERGENCY-STEERING PUMP
9 3207558 HYDR SYSTEM, SUPPORT,
10 3150825 CONTROL BLOCK, SEPARATE STEERING
11 2255009 SHOCK ABSORBER 0.200
12 2211427 THREADED COUPLING 0.001
13 3113928 RESERVOIR 2.5 L 11.800
14 3327774 CONTROL BLOCK 7.940
15 3165967 AXLE BLOCKING VALVE, CPL. 9.280
16 3165970 AXLE BLOCKING VALVE, CPL. 9.6
17 3165969 AXLE BLOCKING VALVE, CPL. 9.85
18 3011141 VARIANTS STEERING CYLINDER 6
19 3011139 STEERING CYLINDER 7.6
20 3139875 SUCTION HOSE
21 3139899 SUCTION HOSE
23 3139900 SUCTION HOSE
24 3329489 DISTRIBUTOR
25 3041412 HOSE CLAMP 0.1
27 3036247 FASTENING CLAMP 0.7
36 3165968 AXLE BLOCKING VALVE, CPL. 9.9
37 0437191 HEXAGON SCREW M12X35 0.04
38 0437644 HEXAGON NUT M12 0.084
39 0206532 WASHER
41 1368191 CLAMP
43 0437286 HEXAGON SOCKET HEAD CAP SCREW M6X60 0.015
45 0438344 HEXAGON SOCKET HEAD CAP SCREW
46 1686701 WASHER 0.005
47 0437176 HEXAGON SCREW M8 0.01
48 0437642 HEXAGON NUT M8 0.003
49 0437284 HEXAGON SOCKET HEAD CAP SCREW M6X16 0.006
50 3010609 THREADED COUPLING
52 1923998 HEXAGON NUT M6 0.005
53 0437285 HEXAGON SOCKET HEAD CAP SCREW 0.005
60 1575152 SCREW-IN FITTING 0.15
61 1921883 SCREW-IN FITTING 0.300
62 2253015 SCREW-IN FITTING 0.044
63 0208008 W-CONNECTION NOZZLE 0.082
64 2212061 STRAIGHT REDUCING PIPE UNION
65 1147651 SCREW-IN FITTING 0.042
66 0314830 SCREW-IN FITTING 0.01
67 3325304 PRESSURE LIMITING VALVE 0.001
68 1575153 SWI VEL COUPLING
69 0208013 L-CONNECTION NOZZLE 0.094
70 3041992 WASHER M10 0.100
* Selected parts are automatically added to your RFQ list *
3165968 Grove GMK 5130-2 AXLE BLOCKING VALVE, CPL.
