3166609-ETL (Grove GMK 3050-1 ANGULAR UNIT, MAIN-JIB)
3155938-ETL (Grove GMK 3055 )
3197734-ETL (Grove GMK 3060 )
4184462-ETL (Grove GMK 4080-3 )
3221453-ETL (Grove GMK 4100-L )
3155931-ETL (Grove GMK 5130-2 )
3155931-ETL (Grove GMK 5170 )
3165656-ETL (Grove GMK 5170 )
3155931-ETL (Grove GMK 5220 )
3197734-ETL (Grove GMK 5250L )
GMK (Grove GMK )
03155931 (Grove RT 9150E )

Also known as:
3155923, 03155923, 003155923

Parts for Grove GMK 5250L, Figure 3197734-ETL:

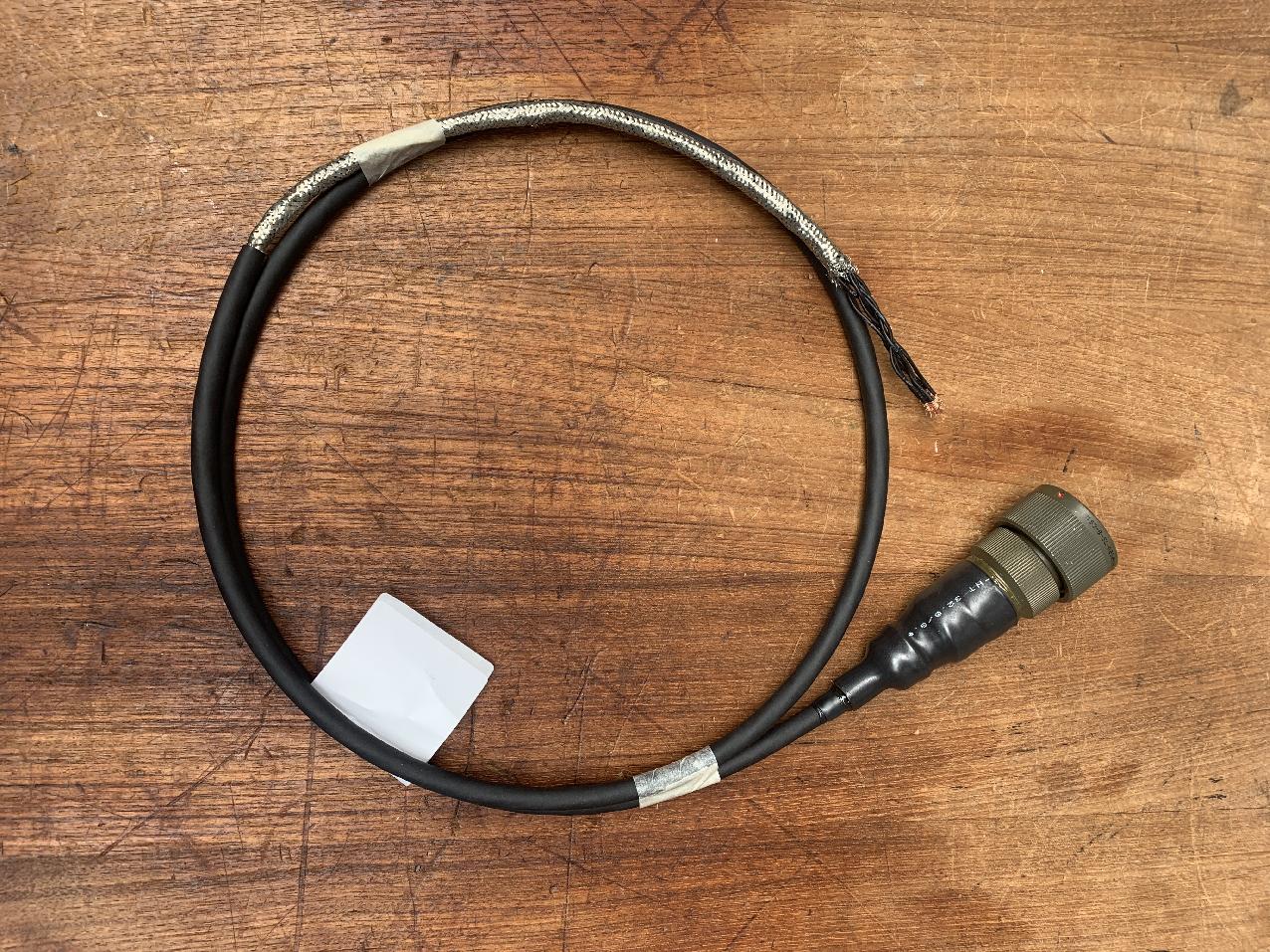

Part Number 3155923: CABLE HARNESS, DRUM MAIN BOOM-ANGLE UNIT

Pos nr	Part number	Description	Weight in kg
1	3297458	TERMINAL BOX
2	3099903	MOUNTING PLATE
3	3207671	E.- PARTS, ANGLE SENSOR	0.105
4	1148154	CABLE EYE	0.001
5	3324495	CABLE EYE
6	2214703	CABLE (PER METER)	0.01
7	3142315	PLUG
8	3143863	LOCKING CAP
11	1374654	HEXAGON SOCKET HEAD CAP SCREW	0.001
13	1146676	SPRING WASHER	0.005
15	1204343	RIVET	0.001
16	1926022	ASSY. RAIL	0.500
17	3323139	THROUGH TERMINAL	0.01
18	1205297	END CLAMP	0.005
19	3323141	END PLATE	0.005
20	3323265	AIR BLEED SCREW	0.015
21	3323260	CABLE CONNECTION	0.03
23	3324210	REDUCER	0.160
25	3323264	BLIND PLUG WITH O-RING	0.001
26	2210979	RESISTOR	0.001
28	1374327	PVC-CABLE STRAND
29	3325477	CABLE FLRY-A 0,5 YE (PER METER)
30	1374329	PVC-CABLE STRAND	0.014
31	1374328	PVC-CABLE STRAND
35	3155923	CABLE HARNESS, DRUM MAIN BOOM-ANGLE UNIT	0.260
36	3155924	CABLE HARNESS, CABLE REEL MAIN BOOM	0.565
38	3204493	ANGULAR UNIT , ASSY.
39	1374657	HEXAGON SOCKET HEAD CAP SCREW	0.005
40	1923997	HEXAGON NUT M5	0.1
41	1923999	WASHER M5	0.1
