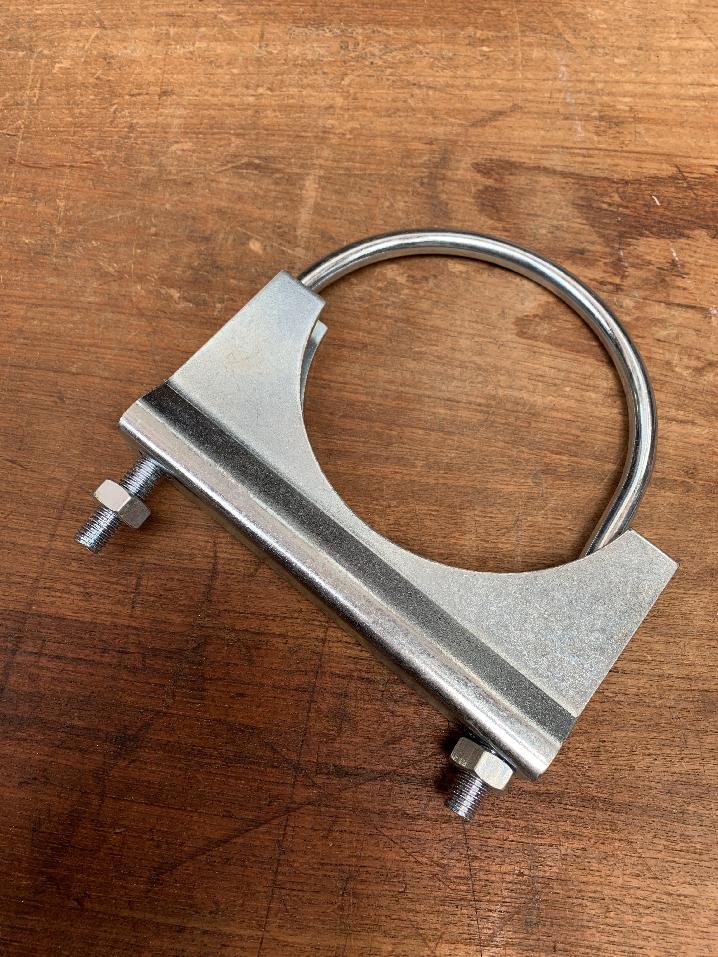

Grove 3318700 - CLAMP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

3057457-ETL (Grove GMK 4075 )
3057457-ETL (Grove GMK 4080-1 )
3204564-ETL (Grove GMK 5130-2 )
3224161-ETL (Grove GMK 5250L )
3295131-ETL (Grove GMK 6300L )

Also known as:
3318700, 03318700, 003318700

Parts for Grove GMK 5250L, Figure 3224161-ETL:
Part Number 3318700: CLAMP

Pos nr	Part number	Description	Weight in kg
1	4218270	KIT EXHAUST AFTER TREATMENT T4F
2	3247885	TUBE
4	3205625	CLAMP
5	3140202	HEAT PROTECTOR
8	3224155	EXHAUST TAIL PIPE
9	4218263	EXHAUST TUBE
10	3318700	CLAMP	0.500
11	3140201	HEAT PROTECTOR
12	3219773	BRACKET
13	0027079	HEXAGON SCREW	0.014
14	1686862	WASHER M12	0.006
15	3205627	PIPE CLAMP WITH TUBE	3
16	0437189	HEXAGON SCREW	0.035
17	3239184	FASTEMNG
18	3239194	PLATE
19	3324218	EXHAUST CLAMP	0.32
20	3321161	CLAMP	0.19
21	1686701	WASHER	0.005
22	0437642	HEXAGON NUT	0.003
23	3324559	WASHER
24	1574147	HEXAGON NUT	0.001
25	1574160	HEXAGON SCREW
26	3143847	CLAMP STRAP
27	3143848	SEAL
28	3143859	SEAL	1
29	0437742	HEXAGON NUT	0.005
30	3247888	PLATE
32	1147437	HEXAGON SCREW
36	3274061	HEAT PROTECTION MAT
37	1373875	HEXAGON SCREW
