Grove 3318699

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3318699, 03318699, 003318699

Parts for Grove GMK 5250L, Figure 3224165-ETL:

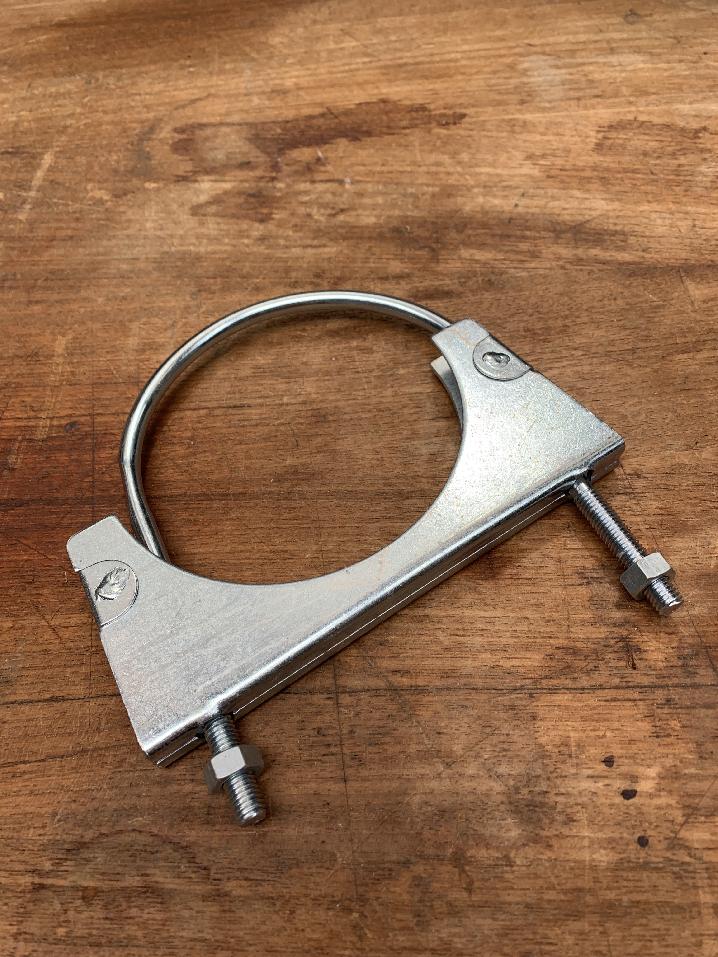

Part Number 3318699: CLAMP

Pos nr	Part number	Description	Weight in kg
1	3240030	SUBASSEMBLY WATER RADIATOR
2	3240015	SUBASSEMBLY CHARGE AIR COOLER
4	3303505	COOLING-WATER PIPE
5	3303506	COOLING-WATER PIPE	1
6	3224187	CHARGE AIR PIPE
7	3227425	CHARGE AIR PIPE
8	3247931	CHARGE AIR PIPE
9	3250104	HOSE SLEEVE
10	3224196	ELBOW
11	4156602	PRESSURE HOSE	0.35
12	3250096	HOSE	0.150
13	3272804	ELBOW
14	4185028	SHAPED HOSE	0.3
15	2315686	COMPRESSOR HOSE	0.500
16	3299236	PLATE
17	3299238	PLATE
18	3041858	HOSE CLAMP	0.12
19	1925398	HOSE CLAMP	0.050
20	2312099	SHAPED HOSE	1.2
21	2254969	SHAPED HOSE
25	3320244	CLAMP	0.17
26	4162321	VALVE
27	3301132	NOZZLE
28	3299223	NOZZLE
29	1571479	CLAMP (PAIR) WITH SCREWS
30	1571750	SUPPORT RAIL NUT	0.030
31	1147818	HEXAGON SOCKET HEAD CAP SCREW M6X30	0.100
34	3251661	PLATE
35	3251667	PLATE
36	3318699	CLAMP
37	4162323	OIL SERVICE VALVE WITH ROPE
38	4156768	HOSE CLAMP
41	4162273	PLUG SOCKET
42	3272801	PLUG SOCKET
43	3258832	PLATE
44	3275954	PLATE
45	1925395	HOSE CLAMP	0.04
47	2217171	HOSE CLAMP	0.026
48	0437169	HEXAGON SCREW	0.005
49	1925033	WASHER 6	0.005
50	4156538	PLUG SOCKET	0.005
51	0437191	HEXAGON SCREW	0.04
52	0437644	HEXAGON NUT	0.084
53	1686862	WASHER M12	0.006
55	0437642	HEXAGON NUT	0.003
56	0027079	HEXAGON SCREW	0.014
57	1686701	WASHER	0.005
58	2257308	SPIRAL HOSE	0.001
59	3299206	PLATE
60	3278299	HEXAGON SOCKET BUTTON HEAD SCREW
61	1923998	HEXAGON NUT M6	0.005
62	4184990	PLATE	4
63	0437177	HEXAGON SCREW	0.014
64	1929220	WASHER M8
