Parts for Grove GMK 5250L, Figure 3225340-ETL:

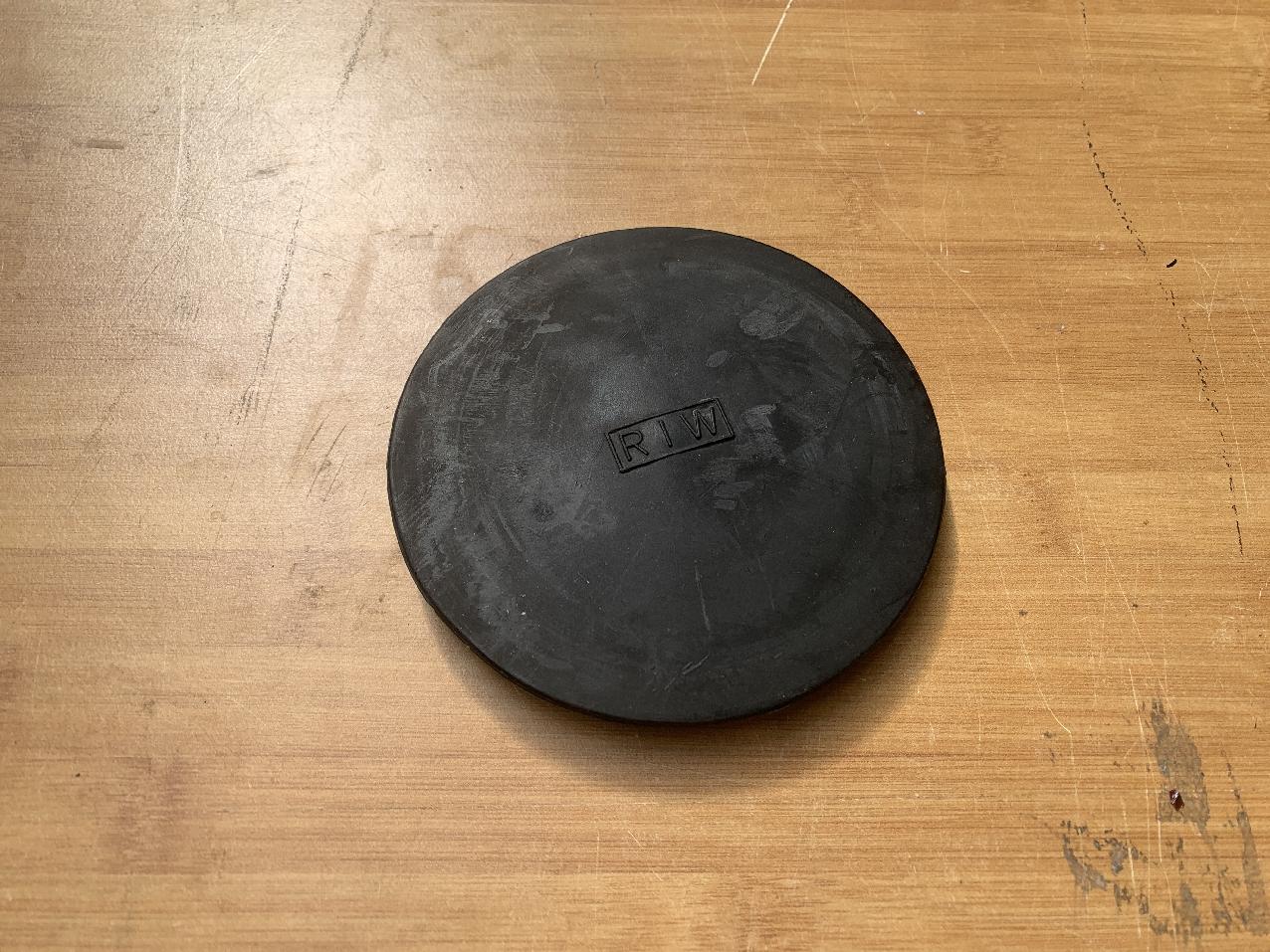

Part Number 1070326: RUBBER CLOSING PLUG
Pos nr Part number Description Weight in kg
1 3225350 TURNTABLE STEEL STRUCTURE WELOMENTS
2 3246578 COVERING
3 3246579 FLAPS
4 3225352 FRAME
5 3239662 BRACKET
6 3239699 FRAME
7 3266806 HOLDER
8 3128431 AXLE FOR FOOT OF DERRICKING CYLINDER ,
9 3246586 BRACKET
10 3382234 HOLDER
11 3259678 PLATE
12 3214999 PIN
13 0436833 COTTER PIN
14 3214997 PLATE
15 3214998 PLATE
16 3246580 BRACKET 2.037
17 3246584 RUBBER BUFFER 0.390
18 3396444 SHIM 0.37
19 3396104 PIN
20 0028525 RETAINING RING 0.030
21 3293427 PLATE
22 3293428 PLATE
23 3293429 PLATE
24 4162001 GAS SPRING
25 3246789 AXLE
26 3247961 FASTENING
27 3247965 BRACKET
28 3219447 HOLDER
29 3163009 HOLDER
30 2315113 WASHER M8 0.005
31 3247968 LOCKING PIN
32 3215021 PLATE
33 3215022 PLATE
34 3297056 MIRROR, SUPPORTING OPERATION CONTROL
35 0437180 HEXAGON SCREW M10X16 0.020
36 3218725 SLEEVE
37 0103222 BOLT 0.001
38 1146946 HEXAGON SOCKET HEAD CAP SCREW 0.04
39 0437644 HEXAGON NUT M12 0.084
40 3041992 WASHER M10 0.100
41 0437183 HEXAGON SCREW M10X30 0.026
42 3259679 PLATE
43 0437643 HEXAGON NUT M10 0.010
44 3323507 WASHER M12 0.005
45 0439547 HEXAGON SCREW
46 1207223 HEXAGON NUT M12
47 2316923 FENDER WASHER D=8,4/25X1,5 0.014
48 0027079 HEXAGON SCREW M8 0.014
49 0437642 HEXAGON NUT M8 0.003
50 0437170 HEXAGON SCREW M6X16 0.005
51 0107521 COUNTERSUNK SCREW 0.01
52 2311769 PIN 0.060
53 1147344 COTTER PIN 0.054
54 1686862 WASHER M12 0.006
55 1207922 HEXAGON SOCKET HEAD CAP SCREW M12X50 0.050
56 0437191 HEXAGON SCREW M12X35 0.04
57 1147653 HEXAGON SCREW
58 0558701 PIN 0.25
59 0437531 WASHER 0.017
60 0439145 COTTER PIN 0.007
61 0437710 WASHER
62 0118623 HEXAGON BOLT
63 3322991 HEXAGON NUT
64 1070326 RUBBER CLOSING PLUG
65 1576650 BALL 0.005
66 1682437 PRESSURE SPRING 0.005
67 0437190 HEXAGON SCREW M12X30 0.04
68 3252988 PLATE
69 3252987 PLATE
70 1147793 WASHER
71 0437195 HEXAGON SCREW
72 4176720 BARRIER BELT 0.495
73 3140312 HEXAGON SOCKET BUTTON HEAD SCREW
74 1207980 WASHER
75 4001947 COTTER PIN
76 3252990 ROPE PROTECTTON
77 2314494 WASHER M8X20 0.180
78 1685832 HEXAGON NUT 0.015
79 2347516 YXCYXC
80 0118444 HEXAGON SOCKET HEAD CAP SCREW 0.090
81 1577656 HEXAGON SCREW 0.005
82 1147323 COUNTERSUNK SCREW
83 4176286 PLATE
