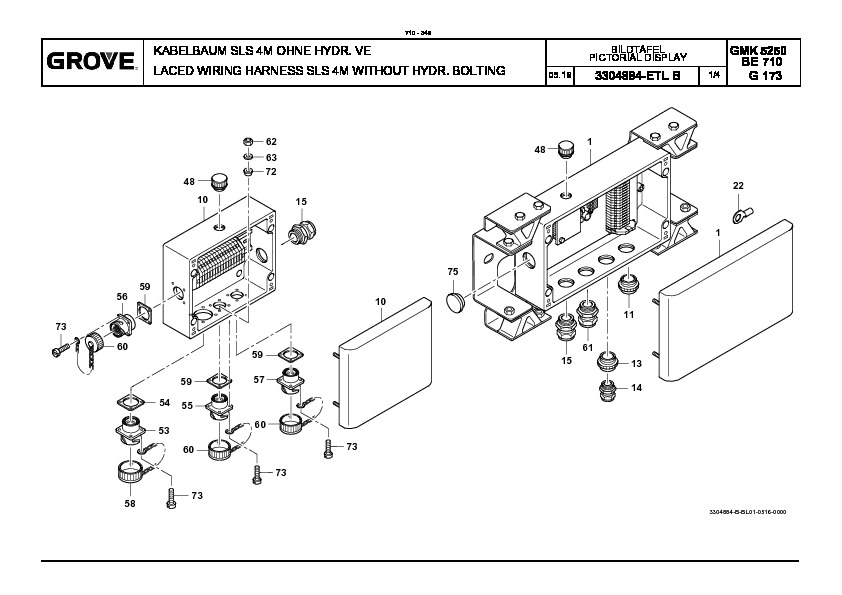

Parts for Grove GMK 5250L, Figure 3304884-ETL:
Part Number 3323504: SEAL
Pos nr Part number Description Weight in kg
1 3298378 ANGULAR UNIT ISS
2 3327945 SOCKET CONTACT 0.001
3 3140331 HOUSING
4 3323862 SOCKET INSERT 0.045
5 3327944 SOCKET CONTACT
6 3041720 TIMER HOUSING 0.04
7 3041215 JUNIOR POWER TIMER CONTACT 0.004
8 3041216 SINGLE-LINE SEAL 0.01
9 3143942 ADAPTER 0.001
10 3297301 E.- PARTS TERMINAL BOX HEAVY JIB 2M
11 3324211 REDUCER
12 3143247 HOSE CONNECTION 0.001
13 3324210 REDUCER 0.160
14 3323260 CABLE CONNECTION 0.03
15 3320737 CABLE CONNECTION
16 3325476 CABLE FLRY-A 0,5 GN(PER METER)
17 3325477 CABLE FLRY-A 0,5 YE (PER METER)
18 2214703 CABLE (PER METER) 0.01
19 2318261 CABLE FLRY-B 0,5 BN (PER METER) 0.085
20 1374328 PVC-CABLE STRAND
21 2212604 CONTROL LINE (PER METER)
22 3324495 CABLE EYE
23 3041961 ANGLE TRANSMITTER 0.980
24 3276563 CABLE
25 1375640 CABLE CONNECTION 0.03
26 4162176 PLUG 0.14
27 4162177 PLUG BOX
30 3143304 CABLE
31 3138565 PROTECTION CAP MALE PLUG
32 3138566 PROTECTION CAP FEMALE PLUG
34 4156675 Y-MANIFOLD
35 0550388 RECTIFIER-DIODE 0.001
37 3323505 T-CONNECTION
38 3317930 CORRUGATED TUBE 1.204
39 3317996 CORRUGATED TUBE
40 3317929 CORRUGATED HOSE (PER METER) 0.001
41 3320725 CORRUGATED HOSE (PER METER)
42 3317926 CORRUGATED HOSE (PER METER)
43 3320690 T-CONNECTION
44 3143866 REDUCER
45 3320727 REDUCER
46 3323500 REDUCER
47 2214704 CABLE (PER METER) 1
48 3323265 AIR BLEED SCREW 0.015
49 3317069 SHRINK HOSE (PER METER) 0.090
50 2314534 SHRINK HOSE 0.001
51 3321643 SHRINK HOSE 0.07
52 3328033 FUSION TAPE 0.
53 1573460 PLUG BOX 0.600
54 1573449 SEAL 0.005
55 3143166 WALL PLUG BOX
56 3041586 PLUG BOX 0.02
57 3143167 WALL PLUG BOX
58 1574294 DUST CAP 0.030
59 1576520 SEAL 0.1
60 0559292 DUST CAP 0.016
61 3320738 CABLE CONNECTION
62 1923996 HEXAGON NUT M3 0.01
63 3315225 WASHER
64 1370458 CABLE (PER METER) 0.060
66 3328528 CABLE
67 3327946 SOCKET CONTACT
68 3317942 T-CONNECTION 0.015
70 3323504 SEAL 0.001
71 3319396 SHRINK HOSE (PER METER)
72 3320111 CIRCLIP 0.005
73 1374639 HEXAGON SOCKET HEAD CAP SCREW 0.001
74 4162200 SHRINK HOSE 0.080
75 3322319 BLIND PLUG WITH O-RING 0.015
76 4162178 DUST HOOD 0.3
