Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3010601-ETL (Grove GMK 6220L )
3010601-ETL (Grove GMK 6300 )
Also known as:
2315788, 02315788, 002315788
Parts for Grove GMK 6220L, Figure 3010601-ETL:

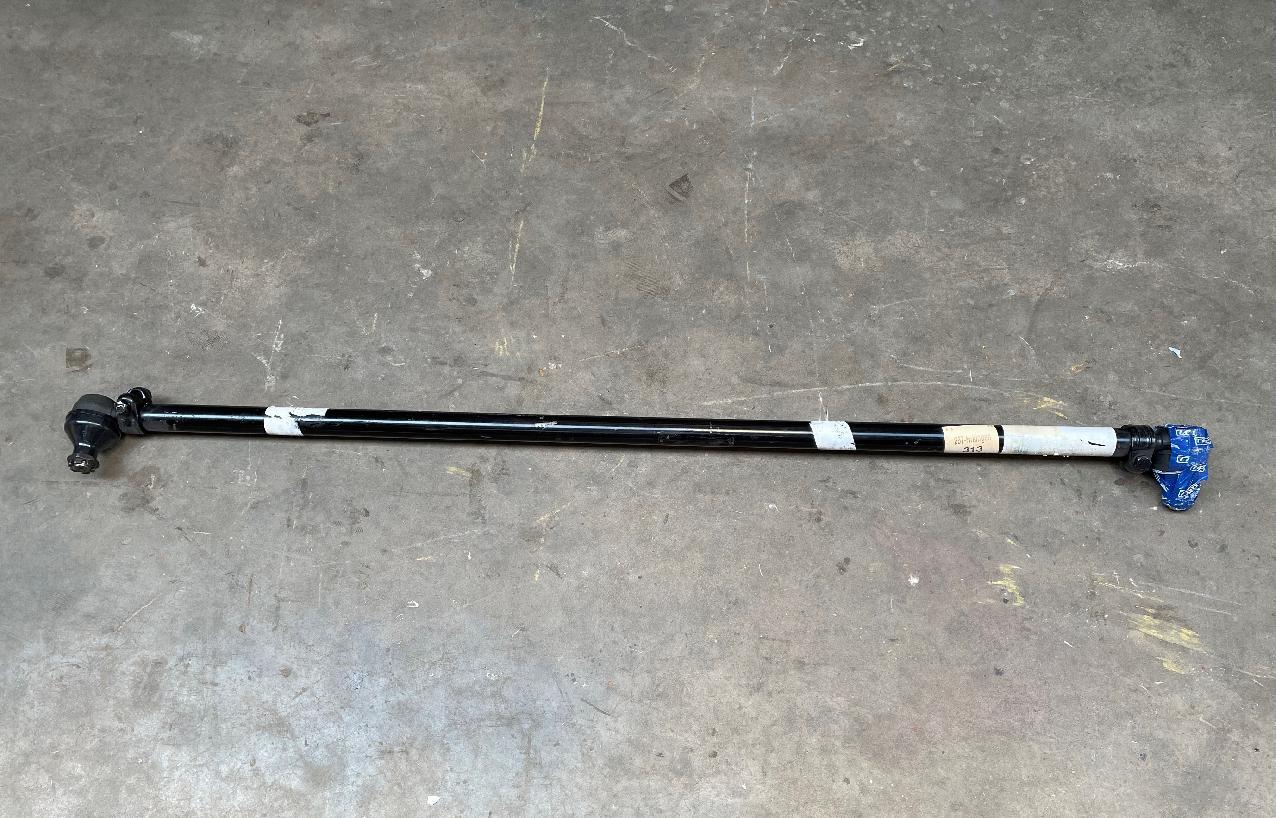

Part Number 2315788: STEERING LEVER
Pos nr Part number Description Weight in kg
1 3006581 STEERING ROD 161
1.01 3008005 SHIFT LEVER 161
2 3006583 STEERING ROD 162
2.01 3008007 SHIFT LEVER 162
3 3006585 STEERING ROD 163
3.01 3008009 SHIFT LEVER 163
4 3006587 STEERING ROD 164
4.01 3008011 SHIFT LEVER 164
5 3006589 STEERING ROD 165
5.01 3008013 SHIFT LEVER 165
6 3006591 STEERING ROD 166
6.01 3008015 SHIFT LEVER 166
7 3006593 STEERING ROD 167
7.01 3008017 SHIFT LEVER 167
8 3006595 STEERING ROD 168
8.01 3008019 SHIFT LEVER 168
9 3006597 STEERING ROD 169
9.01 3008021 CHANGE-OVER LEVER
10 3006599 STEERING ROD 170
10.01 3008023 CHANGE-OVER LEVER
11 3008001 STEERING ROD 171
11.01 3008025 SHIFT LEVER 171
11.02 2255404 RETAINING RING 2.65
11.05 2251465 SPLIT SEAL 0.002
12 3008003 STEERING ROD 172
12.01 3008027 SHIFT LEVER 172
13 3008031 SHIFT LEVER 9.1
14 3010600 ALL-WHEEL STEERING 47.5
15 1925392 UNIVERSAL JOINT 0.980
16 2212202 BALL PIVOT 2.400
17 1066826 BALL PIVOT 3.28
22 2314945 STEERING LEVER
23 2315787 STEERING LEVER
24 1575943 STEERING ROD
25 2315789 STEERING LEVER
26 1371131 STEERING LEVER
27 3041846 STEERING LEVER 50
28 2214214 STEERING LEVER 17.400
28.01 1686516 BALL PIVOT, RIGHT 3.5
28.02 1686517 BALL PIVOT, LEFT 3.5
29 1929957 STEERING LEVER
31 2315788 STEERING LEVER 11
31.03 1065009 BALL PIVOT, RIGHT 1.620
31.04 1064245 BALL PIVOT, LEFT 1.620
32 1929958 STEERING LEVER
33 1929955 STEERING LEVER
35 2257887 BEARING BUSH 1.72
38 1369316 END DISK 0.71
39 2257888 PLAIN BEARING BUSH 0.360
40 2257889 GROOVED RING 0.018
48 3011903 SWITCH ARM
50 3010856 GABLE HARNESS, ANGLE TRANSMITTER 0.62
50.01 3041961 ANGLE TRANSMITTER 0.980
51 2318373 CLAMP
52 3317200 ANGLE JOINT 0.05
