Parts for Grove GMK 6220L, Figure 3065545-ETL:

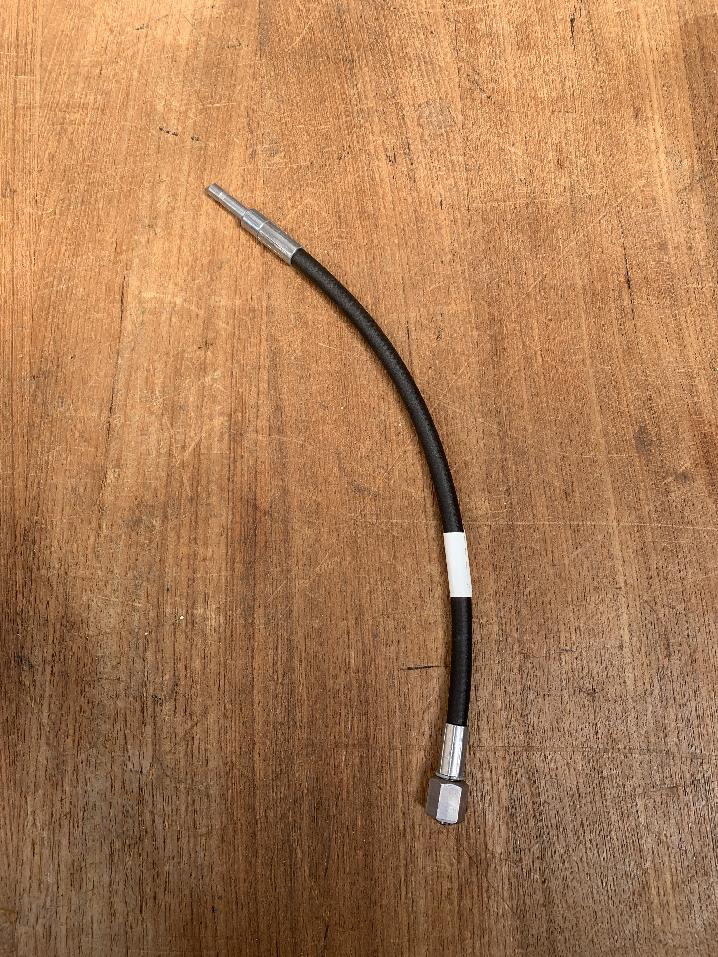

Part Number 3078107: LUBRICANT HOSE
Pos nr Part number Description Weight in kg
1 3007562 SHEAVE CPL. 12.6
1.01 3007595 SHEAVE 484 4
1.02 1677155 CYLINDRICAL ROLLER BEARING 4.700
2 3004132 HEAD SHEAVE AXLE
3 3012350 AXLE 11.9
4 1206263 SPACER RING 0.46
5 3005868 COVER 2.755
6 1206271 SPACER RING, OUTSIDE 0.200
7 1206233 SPACER RING, INSIDE 0.300
8 2318388 SPACER RING
9 2318389 SPACER RING 1.05
10 2316985 SPACER RING 0.06
11 3055542 PIN 0.3
12 1923296 PIN 1.7
13 3012213 SLIDING PIECE 1.7
16 3012254 HOLDING PLATE
18 3012334 STRIPT= 10
38 3012296 LOCK
39 3012210 SLIDING PIECE 2.3
42 3012252 HOLDING PLATE
43 3078621 MOUNTING PIECE
44 3012323 STRIPT= 10 0.7
55 3012207 SLIDING PIECE 2.565
58 3012250 HOLDING PLATE
60 3012312 STRIP T=10 5.5
75 3012467 SLIDING PIECE 0.070
91 3012460 SLIDING PIECE 0.28
103 3012263 SLIDING PIECE 3.2
104 3063851 SLIDING PIECE 3.4
105 3012259 SLIDING PIECE 4.5
106 3063853 SLIDING PIECE 4
109 3004192 GUIDE PIN 0.024
110 3012288 GUIDE
110.01 3012289 GUIDING PIPE
110.02 3012290 GUIDING PIN
110.03 2312535 O-RING 0.005
110.06 2318390 THREADED PIN
110.07 0550309 GASKET
111 3012285 GUIDE
111.01 3012286 GUIDING PIPE
111.02 3012287 GUIDING PIN
111.06 3316681 THREADED PIN
112 3012282 GUIDE
112.01 3012283 GUIDING PIPE
112.02 3012284 GUIDING PIN
113 3012279 GUIDE
113.01 3012280 GUIDING PIPE
113.02 3012281 GUIDING PIN
115 3012229 GUIDING PIPE
116 3012230 GUIDING PIPE
117 3012231 GUIDING PIPE
118 3012232 GUIDING PIPE
120 3067892 LOCKING PIN
121 3067893 LOCKING PIN
122 3067894 LOCKING PIN 4
123 3067895 LOCKING PIN
124 3067890 LINK 0.82
125 3012244 SLIDER 0.730
142 3012270 ROLLER
142.01 3012272 ROLLER
142.02 3012274 AXLE
142.03 3006009 BUSH
142.04 3041852 GROOVED BALL-BEARING
143 3006012 ROLLER 8.3
143.01 3006016 ROLLER L 860 4.3
143.02 3006020 AXLE
144 3012269 ROLLER
144.01 3012271 ROLLER 4.700
144.02 3012273 AXLE
151 3012463 MOUNTING PIECE
152 3012465 MOUNTING PIECE
153 3012466 MOUNTING PIECE
160 2253329 ADJUSTMENT PLATE
166 3007472 SHACKLE 0.7
167 2304349 LIFTING LIMIT SWITCH, WEIGHT 6.750
168 2316988 PRESSURE SPRING 1.35
175 1678177 ROLLER TYP NOZZLE 0.490
176 3004102 MOUNTING PIECE 0.53
178 3004103 COVER
227 3078117 LUBRICANT HOSE 0.06
228 3078106 LUBRICANT HOSE 0.058
229 3078107 LUBRICANT HOSE 0.050
230 3078118 LUBRICANT HOSE
231 2311780 ANGLE MALE COUPLING 0.140
232 2251403 EXTENSION PIECE 0.01
235 3007456 END COVER
241 3004144 SLIDING PIECE 0.28
248 3055174 GUIDE PLATE 0.33
261 3055172 GUIDE PIN 0.026
262 3055173 GUIDE PIN L=27; T=10 0.020
305 3055101 GUIDE PIN L=24; T=7 0.024
306 3055102 GUIDE 0.004
307 3055103 GUIDE PIN L=22; T=5 0.015
310 3055127 HOLDING PLATE
311 3055128 HOLDING PLATE
312 3055129 HOLDING PLATE
314 3055547 SLIDING PIECE 1.75
315 3055546 SLIDING PIECE 2.5
502 3315548 SLIDING PIECES, PARTS FOR ATTACHCHING THE BOOM 0.001
503 3315549 SLIDING PIECES, PARTS FOR ATTACHCHING THE BOOM 0.001
