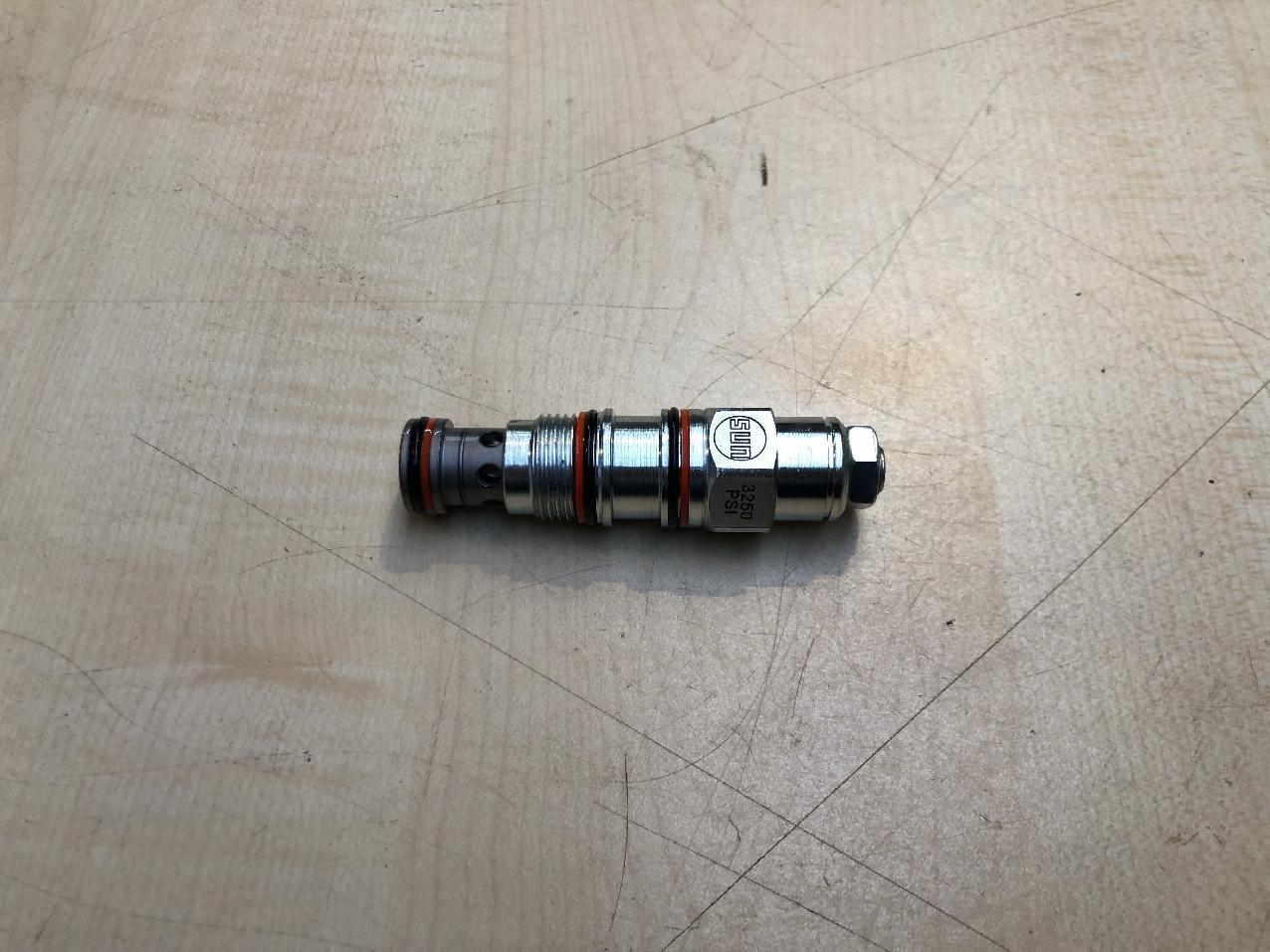

Grove 3324829 - BRAKE VALVE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3324829, 03324829, 003324829

Parts for Grove GMK 6300L, Figure 3136231-ETL:
Part Number 3324829: BRAKE VALVE

Pos nr	Part number	Description	Weight in kg
1	3141946	SET OF SEALS, CPL.	0.001
2	3324829	BRAKE VALVE	3
3	2313312	NON-RETURN VALVE	0.16
4	3141947	GUIDE HEAD
5	3324456	RING MAGNET	0.003
6	3141948	PISTON ROD CPL.
7	3141949	LENGTHS MEASURING SYSTEM	0.730
8	3137079	SPACER BUSH	0.004
9	3141950	PISTON
10	1921550	BALL	0.001
11	3141952	CYLINDRICAL PIN
12	3141000	CIRCLIP
13	1929808	HEXAGON SOCKET HEAD CAP SCREW
14	1368729	SCREW PLUG	0.005
15	1680394	SCREW PLUG	0.200
16	3141953	THREADED PIN
17	0027364	CAP NUT
18	1147322	HEXAGON SOCKET HEAD CAP SCREW
19	0028506	CIRCLIP	0.650
