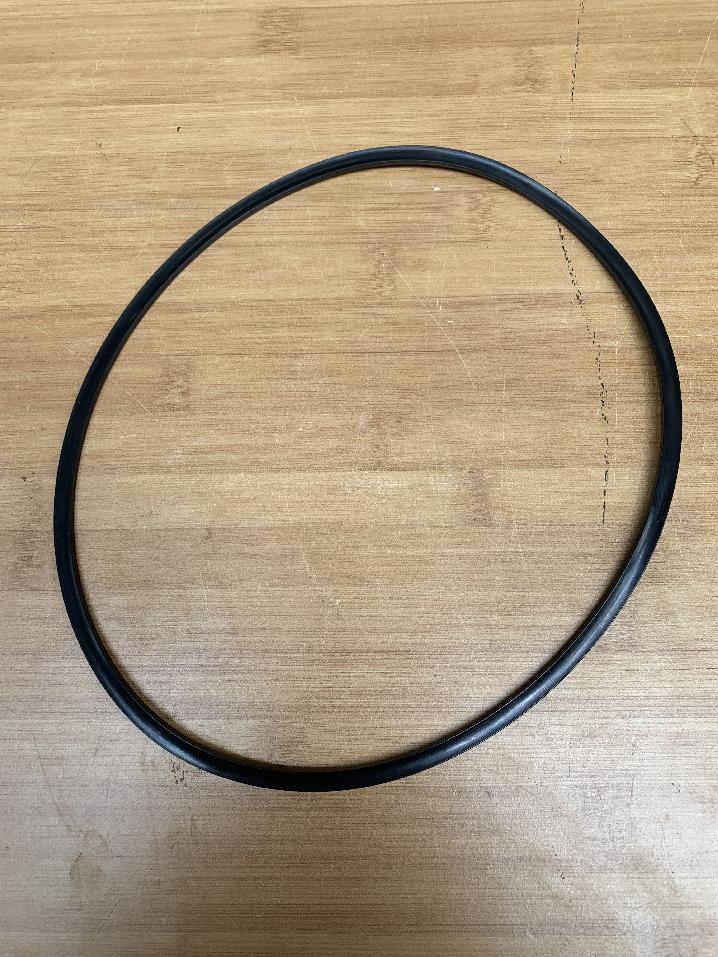

Grove 7755445609 - BACK UP RING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7755445609, 07755445609, 007755445609

Parts for Grove AT 750 BE, Figure 6372004194:
Part Number 7755445609: BACK UP RING

Pos nr	Part number	Description	Weight in kg
1	9752100863	KIT, REPAIR	1.416
1	6372004194	CYLINDER ASSEMBLY - LIFT
1	6372003622	CYL BARREL WELD - 10.00 DIA
2	6701000902	PISTON, CYLINDER
3	7785160802	SET SCREW	0.011
4	7794000566	SEAL	0.450
5	7753000746	RING	0.130
6	7754000203	O-RING, LOW TEMPERATURE	0.030
7	7755445609	BACK UP RING	0.014
8	6910012028	SPACER
9	6763002600	ROD ASSY INCLUDES NBR 203
10	6372003570	HEAD, CYLINDER
11	7753000282	PISTON WEAR RIN	16.800
12	7754000151	LOW TEMP "O" RI	0.035
13	7755448609	RING, BACK-UP	0.016
14	7794000565	BUFFER SEAL ASS	0.050
15	7794000709	8.00" DIA DEEP	0.450
16	7753000484	WIPER RING	0.098
17	7926001793	COMPLETE ASSY	3
18	7709000026	SCREW PLUG	0.163
19	7709000029	O RING & PLU	5.440
20	7440000000	GREASE NIPPLE	0.006
21	7709000028	PLUG 721-FSO-1/4"	0.160
103	7199002062	BUSHING
