Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT parts (Grove )
6974003 (Grove AT 750 BE )
Also known as:
9752100129, 09752100129, 009752100129
Parts for Grove AT 750 BE, Figure 6974003:

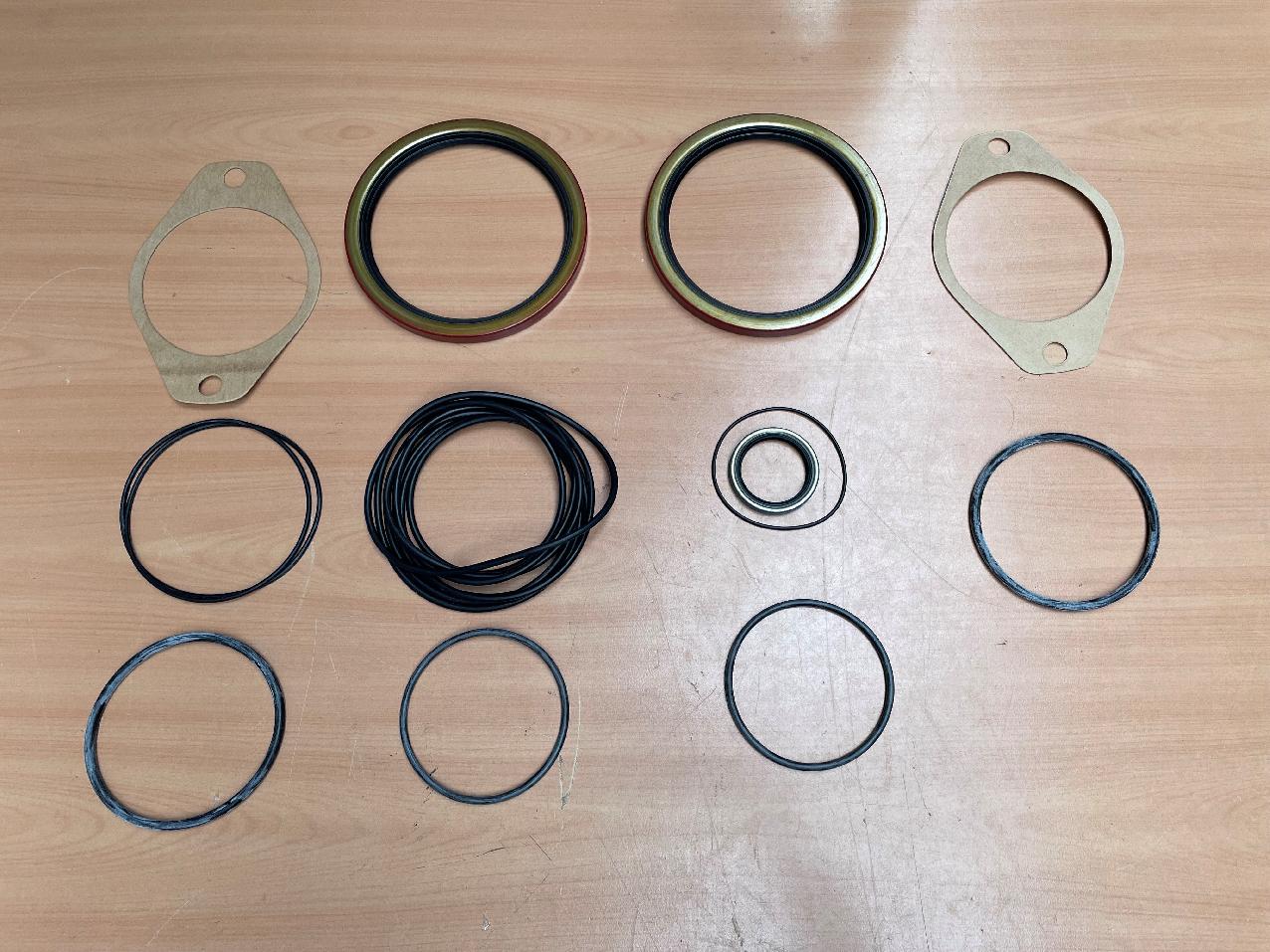

Part Number 9752100129: REPAIR KIT
Pos nr Part number Description Weight in kg
1 7069000168 CONE, BEARING 1.764
1 9752100129 REPAIR KIT 0.82
1 6974000953 COMPLETE ASSY
2 7794000240 CUP, BEARING 0.772
3 6547000082 HOUSING
4 7069000133 BALL BEARING 0.400
5 7753000153 SNAP RING
6 6910000476 SPACER, BEARING
7 7069000134 BEARING
8 6490000043 PINION 3.800
9 7755391000 O RING 0.048
10 6258000282 COVER, RIGHT HAND END
12 7569000009 KEY 0.040
13 7115202050 CAPSCREW
14 7316000005 WHEEL 7.870
15 6910001246 SPACER
16 7949000211 WASHER
17 7949000161 LOCKWASHER
18 7659000057 LOCKNUT 0.098
19 7490000032 GEAR, DRIVE
20 7444060031 PLUG, PIPE
21 7115161050 HEX HD BOLT 0.103
22 7690142024 PIN, DOWEL
23 7794000326 OIL SEAL 0.024
24 7794000486 OIL SEAL 0.300
25 7490000030 PINION, DRIVING
26 7069000132 BEARING, BALL 0.435
28 7115201650 CAP SCREW,
31 7115161650 CAPSCREW 0.032
32 7950200020 LOCKWASHER 5/3 HEAVY
33 7709000060 PLUG, PLASTIC
52 6250000011 PLANET CAGE 45.454
53 6490000033 GEAR RING 20.410
54 6547000083 HOUSING
57 7753000152 SNAP RING
58 6547000128 HOUSING, THRUST BEARING
59 6258000208 COVER, LEFT HAND END
60 7069000303 BEARING, BALL 0.140
61 6659000196 NUT, RETAIN ING
63 7490000029 GEAR, PINION
65 6910000478 RETAINER, BEARING
67 7950160050 LOCK WASHER 3/8" PEG 0.080
68 6810000999 SHAFT, GEAR
69 7490000031 GEAR, PLANET
71 7115162450 CAPSCREW, 0.045
72 7069000135 BEARING, NEEDLE 0.150
73 7690152045 PIN; SLOTTED SPRING, .313X1.25 0.04
77 7705001965 SHIM (.005")
78 7705001966 SHIM (.007")
79 7705001967 SHIM (.020")
91 6810001602 SHAFT, MAIN
92 6400000136 CABLE DRUM WELD (16")
93 6547000080 HOUSING, CENTER
102 7632000135 MOTOR ASSEMBLY HYDRAULIC 28.500
103 6188000162 BRAKE ASSY INCLUDES NBR
105 6958000001 WEDGE
109 7755275000 O RING 0.012
110 6794000172 SEAL 0.160
111 7115201450 CAP SCREW
112 7115160850 BOLT HEX 3/R-16 HC X 1" - CR0 5 0.018
* Selected parts are automatically added to your RFQ list *
9752100129 Grove AT / RT / GMK REPAIR KIT
