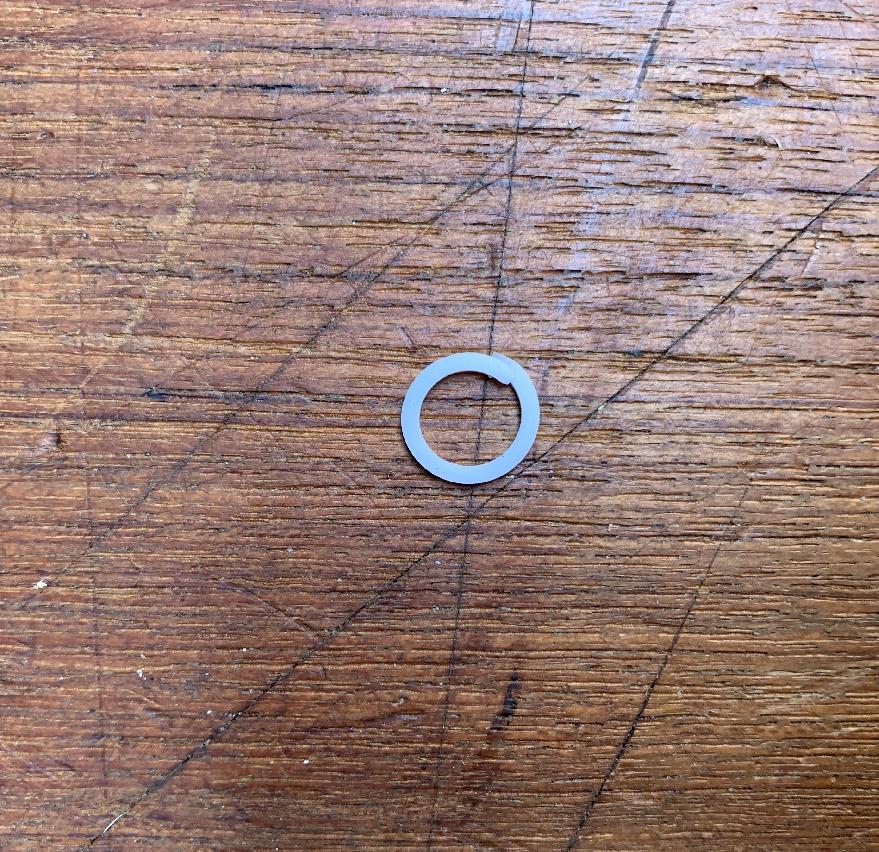

Grove 9926104801 - B/U RING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9926104801, 09926104801, 009926104801

Parts for Grove AT 750 BE, Figure 7926002127:
Part Number 9926104801: B/U RING

Pos nr	Part number	Description	Weight in kg
1	7926002127	VALVE ASSEMBLY PRESSURE
1	9752100351	REPAIR KIT
1	9926106948	VALVE INCLUDES
2	9926106949	VALVE INCLUDES
3	9926107050	VALVE INCLUDES NBR 301-317, 401-410
4	9926106951	BRACKET
5	7755113000	O-RING	0.005
6	9926106953	ROD, TIE
7	9926100585	NUT
8	9926103518	WASHER
8	9926103513	WASHER
102	9926102562	PISTON
103	9926102902	SLEEVE
104	7755019000	O-RING	0.001
105	7755019609	RING, BACK-UP	0.050
106	7755912000	O-RING	0.010
107	9926102899	SPRING
108	9926102681	END
109	9926102903	PLUG
110	9926105566	PLUG
111	7755906000	O-RING
112	9926106952	RING, GLYD
113	9926106950	PLUG, SEAL
114	7755010000	O-RING	0.050
114	9752100849	KIT REPAIR
202	9926107080	CARTRIDGE ASSY
203	7755902000	O-RING
206	7755114609	BACK UP RING
207	7755114000	ORING	0.010
208	9926105415	PLUG
209	7755115000	O-RING	0.050
210	7755115609	BACKUP RING
211	7755116000	O-RING	0.110
212	7755116609	RING
213	7755119000	O-RING
214	9926106955	SOLENOID KIT REPAIR INCLUDES
214	9752100864	SOLENOID
302	9926107081	CARTRIDGE ASSY
401	9926106459	CARTRIDGE SUB-A
402	9926107054	COIL
403	9926106457	ROD, TIE
404	9926106843	CAP
405	9926106460	NUT
406	7755908000	O-RING	0.004
407	7755012000	O-RING	0.001
408	7755012609	BACK-UP RING	0.001
409	7755011000	O-RING	0.002
410	9926104801	B/U RING	0.001
