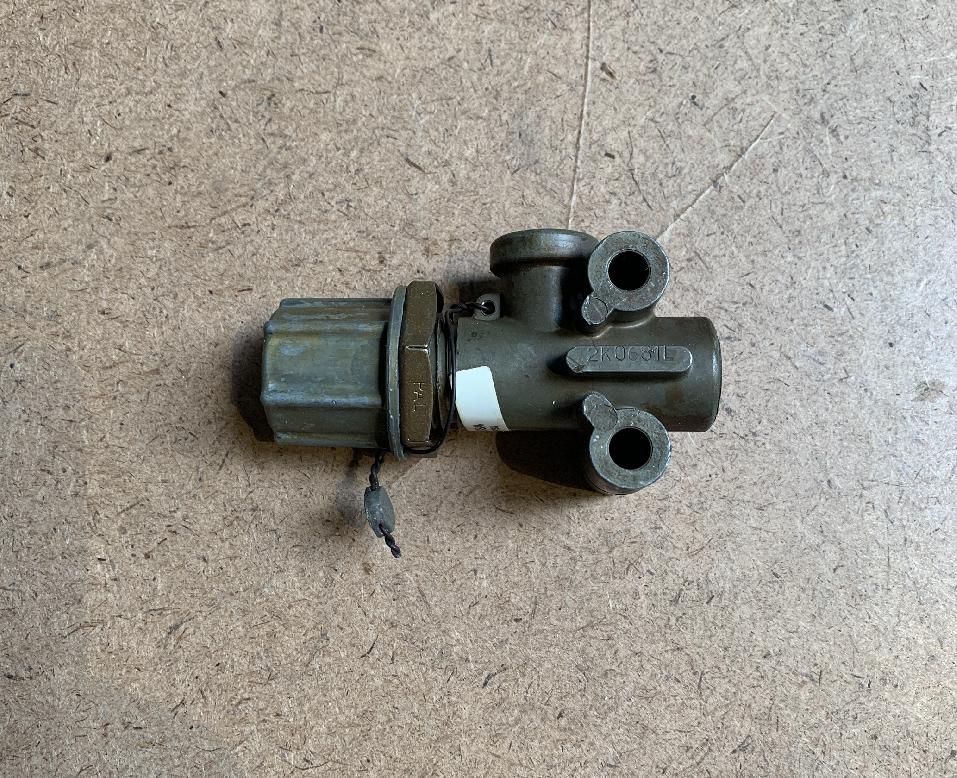

Grove 7926001959 - AIR PRESS RED VALVE (47 PSI)

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7926001959, 07926001959, 007926001959

Parts for Grove AT 422, Figure 2140100152:
Part Number 7926001959: AIR PRESS RED VALVE (47 PSI)

Pos nr	Part number	Description	Weight in kg
1	7880000018	RESERVOIR, AIR
2	7444060256	BUSHING, HEX REDUCING
3	7926000209	VALVE, DRAIN	0.554
4	7880000019	RESERVOIR, AIR
5	7444030256	BUSHING, REDUCER
6	7926000273	COCK, DRAIN	2
7	7184000189	BRACKET, RESERVOIR
8	7880000020	AIR RESERVOIR
9	7515000047	DRYER ASSEMBLY - AIR	12.340
10	7926001228	VALVE, DOUBLE CHECK	0.300
11	7926000487	VALVE, PRESSURE PROTECTION	2
12	7926001918	VALVE ASSY AIR
13	7926001896	VALVE AIR
14	7926001397	VALVE, RELAY	1.480
15	7926000608	VALVE ASSEMBLY -	0.916
16	7950160141	WASHER, 3/8" PLAIN NARROW	0.004
17	7950140050	LOCK WASHER	0.006
18	7660140000	NUT. HEX 114	0.004
19	7950180141	FLATWASHER 1/2" I.D.	0.009
20	7950160050	LOCK WASHER 3/8" PEG	0.080
21	7660160000	NUT, HEX	0.018
22	7950100050	#10 DIA HELICAL	0.005
23	7102100415	SCREW
24	7112150850	BOLT, HEX S/16"-10 HC I 1" - GRD 2
25	7950150050	LOCK WASHER 5116" RED	0.002
26	7660150000	HEX NUT	0.006
27	7926001959	AIR PRESS RED VALVE (47 PSI)	1
28	7445120450	BUSHING, REDUCER
29	7445040449	PIPE NIPPLE
30	7445040453	ELBOW, 90 DEGREE
31	7112160850	REPLACED BV 7115160850
32	7926001960	VALVE AIR PRESS
