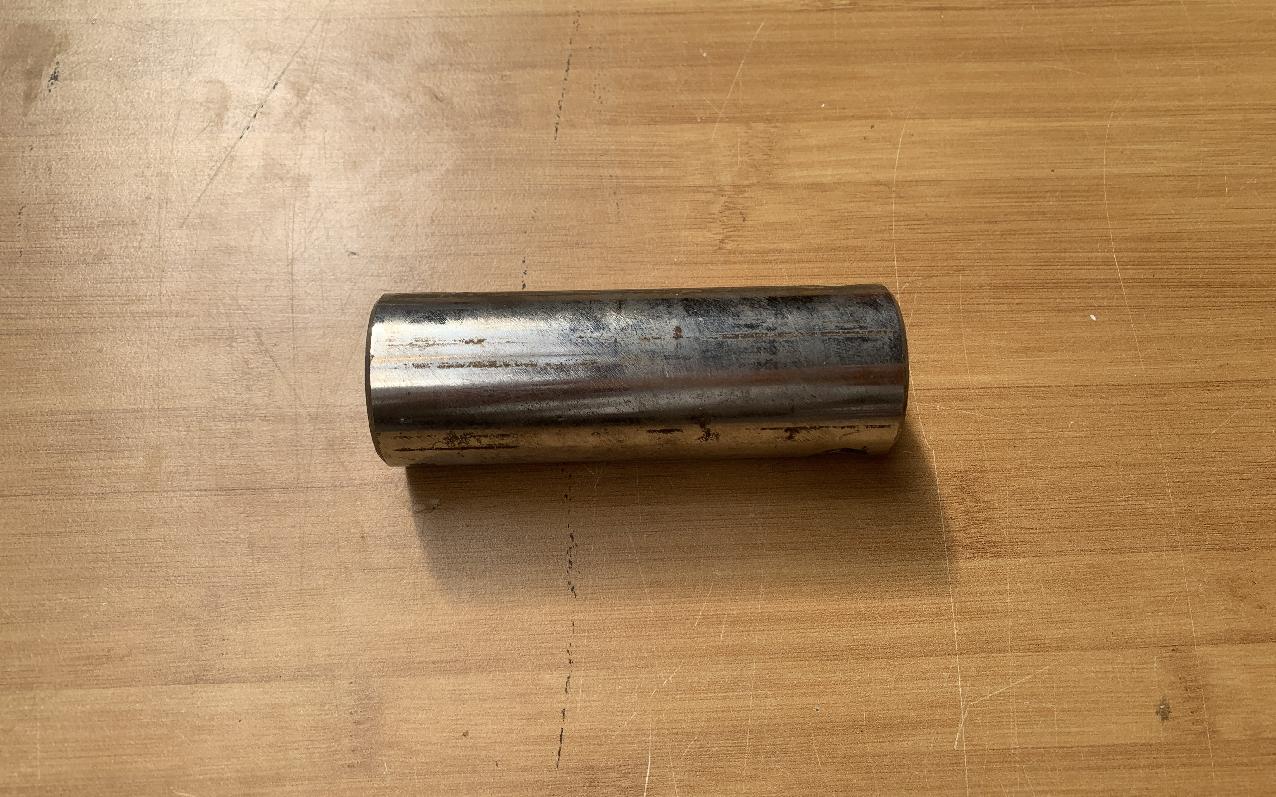

Grove 6689000873 - RETAINING PIN

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
6689000873, 06689000873, 006689000873

Parts for Grove AT 422, Figure SK881752:
Part Number 6689000873: RETAINING PIN

Pos nr	Part number	Description	Weight in kg
2	7372003059	CYLINDER STEERING	7.66
3	7364001574	BALL JOINT
4	7834000197	SPRING ASSY	113.636
5	7009000026	BRAKE ACTUATOR	1
7	4140100284	PLATE TOP
8	7199001364	BUSHING
9	7099000554	HEX HEAD BOLT 3/4-10 X 15 LG
10	7949000236	WASHER	0.027
11	7126242450	HEX BOLT M16-I X 85 LG
12	7661241103	LOCKNUT
14	7949000581	WASHER
15	7709000236	PLUG
16	7304000105	GREASE NIPPLE	0.015
17	7872000640	SWITCH	0.300
18	7659000246	NUT LUG
19	7659000261	LOCKNUT-BRAKE CHAMBER
20	6009000039	COMPLETE ASSY
21	7689000907	DOWEL PIN
22	7864000187	STUD
23	7660221603	LOCKNUT, HEX	0.180
30	6049000961	AXLE ASSY
32	6689000873	RETAINING PIN	4
33	7690184810	COTTER PIN
34	7115171650	BOLT	0.050
35	7950170141	WASHER, 71161
36	7660171600	NUT
37	7118184850	SCREW
38	6200080733	BUSHING
39	7949000235	WASHER 1/2 ID	0.006
40	6207140402	BUSHING	0.018
41	7118244450	HEX HEAD CAP SCREW
42	7949000237	WASHER 7/8" I.D.	0.503
43	7660241603	7/8" N.C. GR C
44	7364001692	STEEL CUP
45	7834000205	HOLLOW RUBBER SPRING	1.320
47	7950180161	FLATWASHER 1/2" I.D.	0.014
48	7950180050	WASHER, LOOK 1/2" I.D.	0.006
49	7660180000	NUT, HEX 1/2"-13 DC - GPO A	0.016
50	6184001604	BRACKET
51	7950160050	LOCK WASHER 3/8" PEG	0.080
52	7660160000	NUT, HEX	0.018
53	7690052410	COTTER PIN
54	6705009730	PLATE
55	7660181601	LOCKNUT, HEX	0.350
56	7950160141	WASHER, 3/8" PLAIN NARROW	0.004
101	7049000955	AXLE DRIVE STEER REAR
