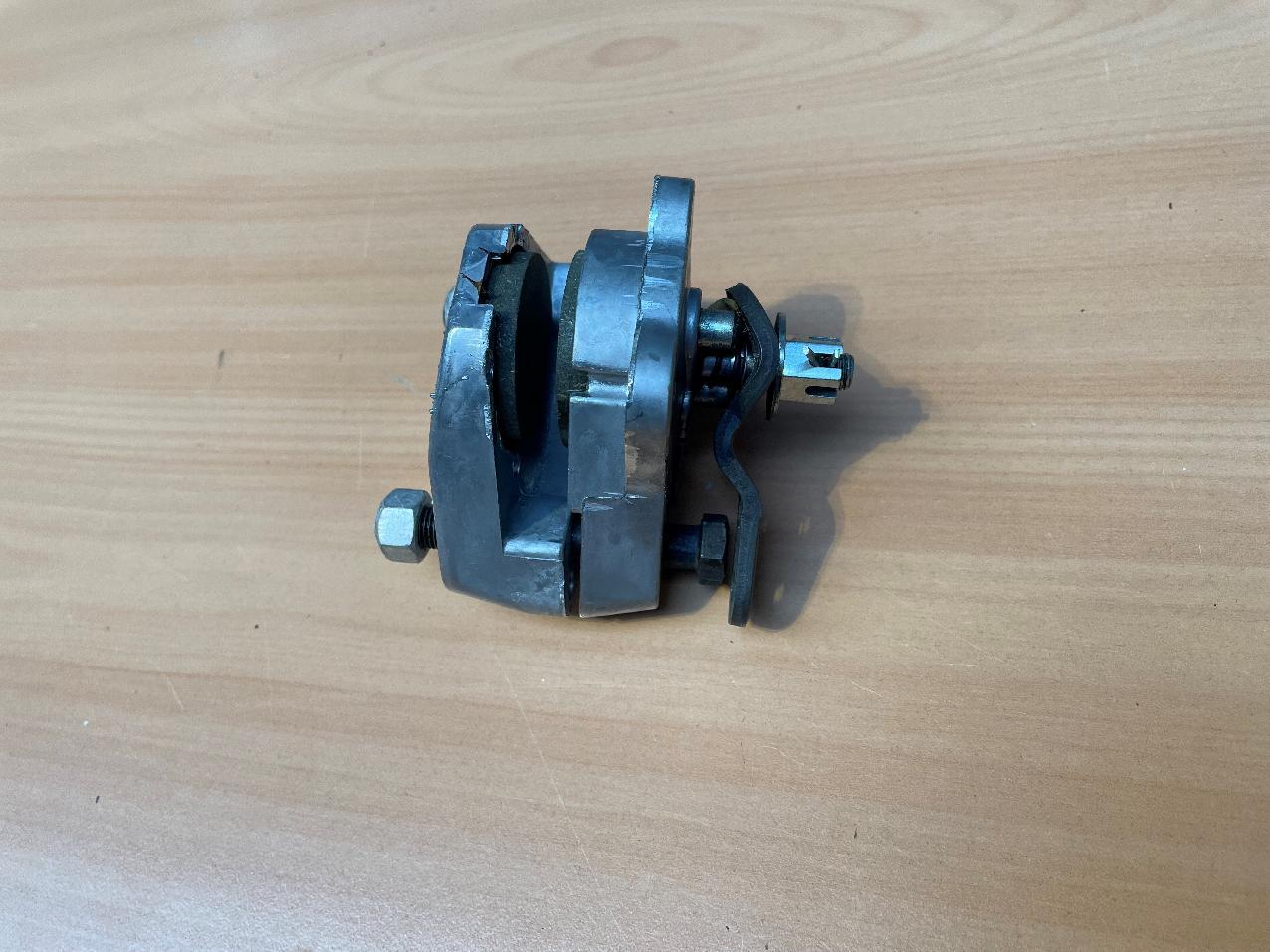

Grove 7188000024 - DISK BRAKE S

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7188000024, 07188000024, 007188000024

Parts for Grove RT 60S, Figure 6188000049:
Part Number 7188000024: DISK BRAKE S

Pos nr	Part number	Description	Weight in kg
1	7188000024	DISK BRAKE S
2	6372000839	ASSY SWING BRAKE CYL
4	6705002677	BOTTOM MTG PLATE WELDMT
5	6184000337	BRACKET
6	6570241200	KEY
7	6601000056	LINK WELD.
8	6099000153	BOLT
9	6705002678	TOP MTG PLATE WELD
10	7115160650	BOLT, HEX 3/811-16 HC X 3/4" - GPO S	0.014
11	7950160050	LOCK WASHER 3/8" PEG	0.080
12	7105162250	SCREW
13	7950120161	FLATWASHER
14	7690001210	PIN, COTTER
17	7111141010	SCREW, MACHINE
18	7660140200	NUT, HEX JAM
19	7110201206	HEX SOC HD SHOULDER SCREW
20	6593000078	BRAKE LEVER WELD LH
21	7950160141	WASHER, 3/8" PLAIN NARROW	0.004
27	6864000094	SHOULDERED STUD
28	7660141600	LOCKNUT, HEX
