Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT parts (Grove )
6974000202 (Grove RT 60S )
Also known as:
7632000032, 07632000032, 007632000032
Parts for Grove RT 60S, Figure 6974000202:
Part Number 7632000032: HYDRAULIC MOTOR
Pos nr Part number Description Weight in kg
1 6810001043 SHAFT, INPUT
4 6910001261 SPACER
5 7755275000 O RING 0.012
6 6794000262 GASKET 0.006
7 7110160805 CAPSCREW 3/811-16 HC X 1"
8 6069000179 BEARING RETAINER 2.000
9 7755259000 O RING 0.010
10 7709000058 PLUG, PLASTIC
11 6705001969 PLATE, PRESSURE 2.230
12 6372000833 CYLINDER, BRAKE
13 7834000075 COMP SPRING 0.082
14 6547000069 HOUSING, BRAKE
15 7755427002 SEAL 0.020
16 7110181005 CAPSCREW 0.046
17 6701000097 BRAKE PISTON
18 7569000012 KEY 0.008
19 6810001040 SHAFT, MAIN 0.940
20 7755115000 O-RING 0.050
21 7753000223 SNAP RING
22 6910000948 SPACER
23 7753000225 SNAP RING
24 7755154000 O-RING 0.050
25 7755347002 O-RING 0.090
26 7069000178 BEARING, BALL 0.26
27 7316000010 CLUTCH|ASSY 0.001
28 7388000046 DISC BRAKE 0.001
29 7388000039 DISC 1.090
30 7115161050 HEX HD BOLT 0.103
31 7950160050 LOCK WASHER 3/8" PEG 0.080
32 7794000265 OIL SEAL 0.014
33 6548000053 END, RH DRUM
34 6547000067 HOUSING, RIGHT HAND END
35 7794000264 OIL SEAL 0.120
36 7115180950 CAP SCREW,
37 7950180050 WASHER, LOOK 1/2" I.D. 0.006
38 6400000053 DRUM END RH 16.060
39 7069000194 BALL BEARING 1.110
40 7490000047 GEAR REDUCTION ASSEMBLY
41 7440030031 PLUG,PIPE
42 6400000054 DRUM END 2.950
43 6547000065 HOUSING ASSY, CENTER
44 6400000089 DRUM, CABLE
45 6547000068 HOUSING, LEFT HAND END
46 7632000032 HYDRAULIC MOTOR 24.040
47 7069000219 ROLLER BRG 0.570
48 6364000389 COUPLING
49 7115181250 CAPSCREW 0.045
50 6794000263 GASKET-SAE C 4-BOLT 0.010
50 6974000276 TUBING INSTALLATION
51 7753000420 SNAP RING INTERNAL
52 6958000005 WEDGE 0.001
53 7753000171 RING, SNAP 0.160
54 7755246000 O-RING 0.006
56 6705002402 NAMEPLATE
57 7790040404 SCREW 0020 0.011
58 7110180805 CAPSCREW,
59 6705002946 PLATE, BACKING
61 7115161250 CAPSCREW 0.023
62 7794000394 SEAL 0.091
63 7069000220 INNER RACE 0.625
65 7690162024 DOWEL PIN
66 7785140670 SETSCREW
67 9752100158 REPAIR KIT 3.750
* Selected parts are automatically added to your RFQ list *

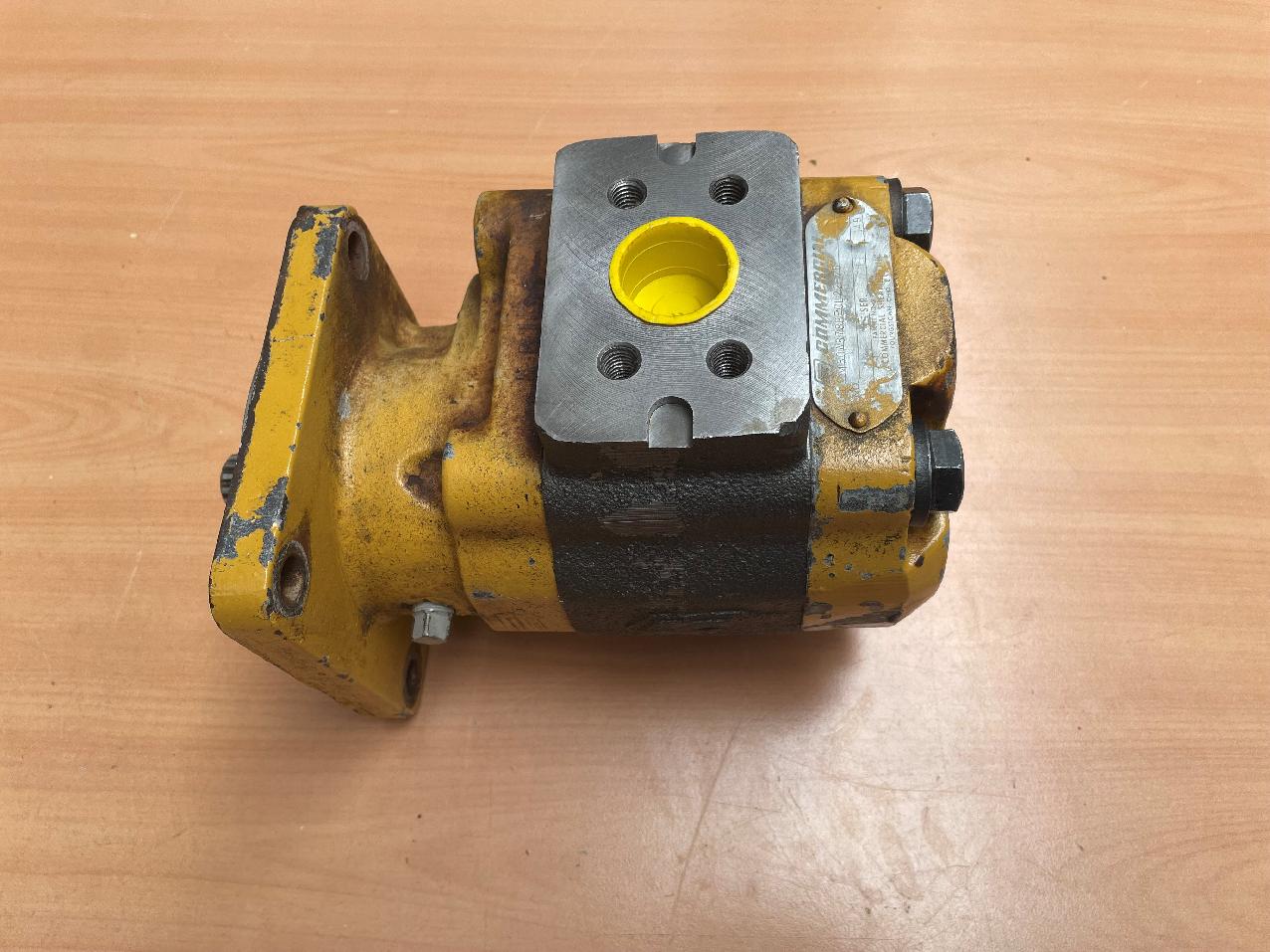

7632000032 Grove AT / RT / GMK HYDRAULIC MOTOR
