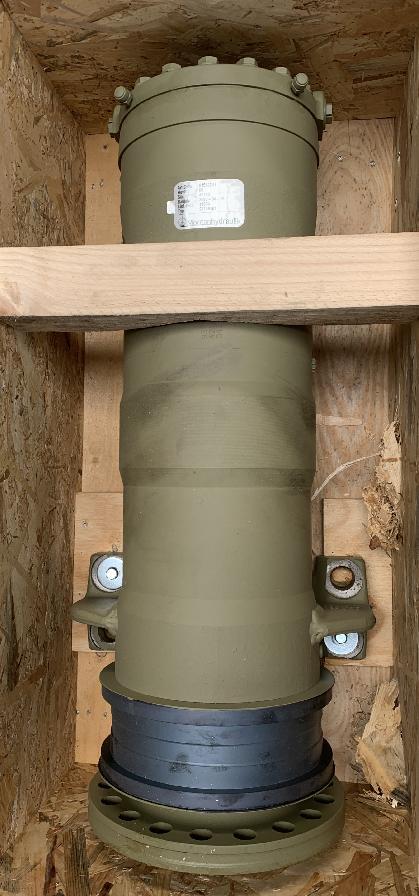

Grove 3324497 - SUSPENSION CYLINDER (MONTAN)

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3324497, 03324497, 003324497

Parts for Grove GMK 3050 V3, Figure 3078845-ETL:
Part Number 3324497: SUSPENSION CYLINDER (MONTAN)

Pos nr	Part number	Description	Weight in kg
1	3322084	BUSH	0.820
1	3324497	SUSPENSION CYLINDER (MONTAN)	140
1	3324499	SET OF SEALS	0.4
1	3324500	GUIDE BUSH	1.1
2	3324498	SUSPENSION CYLINDER (PACOMA)	140
2	3324554	SET OF SEALS	0.4
2	3324555	GUIDE BUSH	0.89
2.03	3324556	SLIDE BEARING	0.820
