Grove 1101788 -

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
1101788, 01101788, 001101788

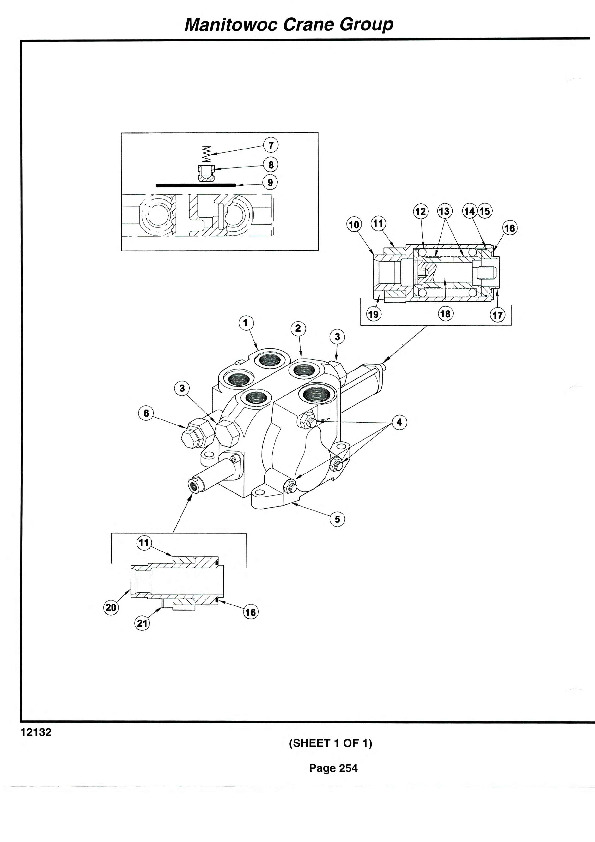

Parts for Grove YB 7722, Figure 12132:
Part Number 1101788:

Pos nr	Part number	Description	Weight in kg
-	1101788
1	1000511	VALVE SECTION, INLET
2	1901624	VALVE SECTION, WORKING
3	1901639	PLUG, SHUT OFF
4	1901638	KIT, TIE ROD
5	1901628	VALVE SECTION, OUTLET
6	1000534	VALVE, MAIN RELIEF
8	1901626	POPPET, LOAD CHECK
9	1000539	O-RING	0.001
10	1901632	CAP
11	1901634	PLATE, SEAL
12	1901140	SPRING
13	1901637	RETAINER, SPRING
14	1901137	O-RING
15	1901138	RING, BACKUP
16	1901139	O-RING
17	1901635	RETAINER
18	1901636	END, SPOOL
19	1901631	SCR, CAP, HS
20	1901633	PLATE, SEAL	0.001
21	1901630	SCR, CAP, HS
