Grove 9086100822 - KIT, LATCH

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9086100822, 09086100822, 009086100822

Parts for Grove YB 4411, Figure 80010699:

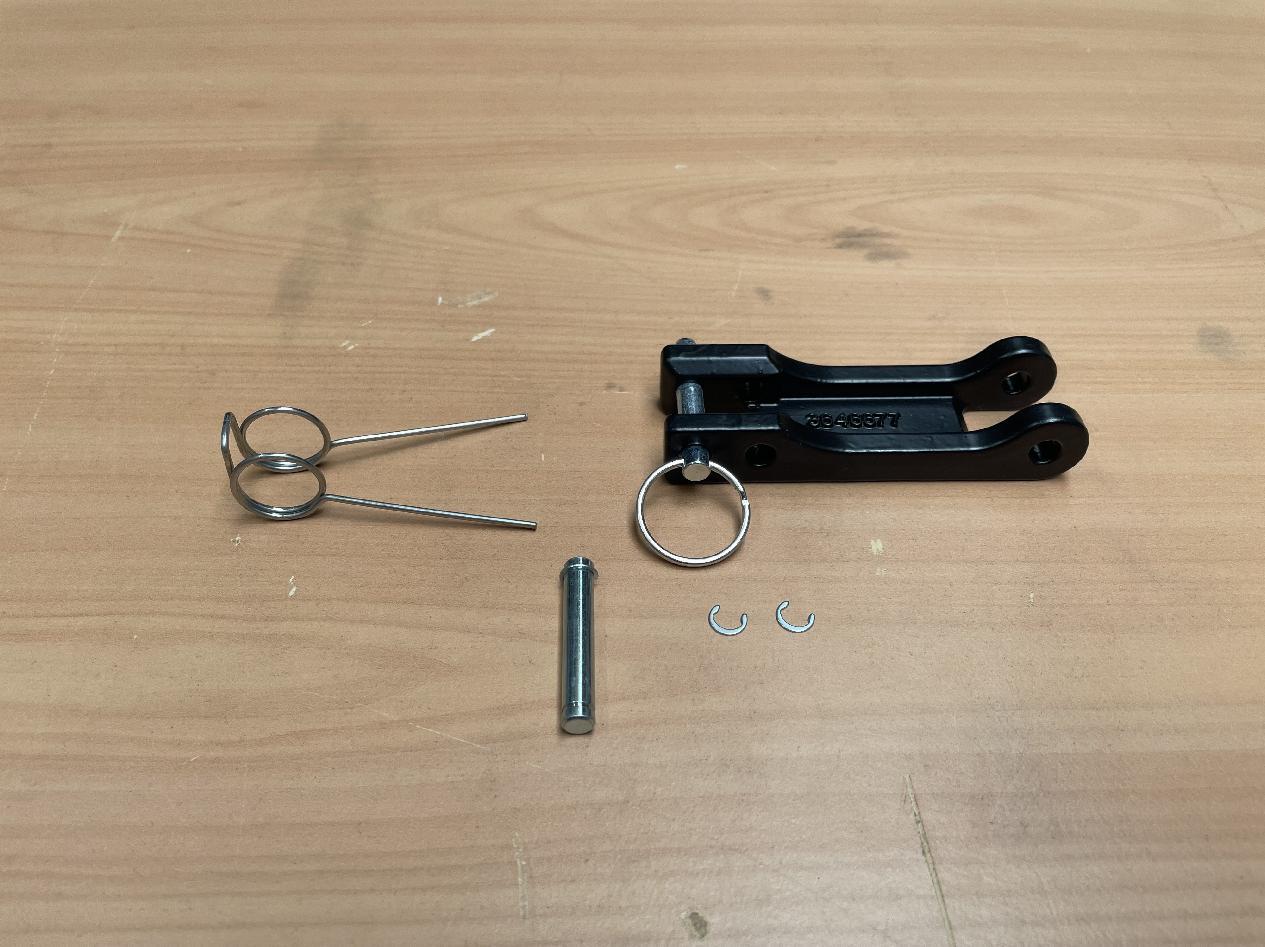

Part Number 9086100822: KIT, LATCH

Pos nr	Part number	Description	Weight in kg
1	9086101229	RING, SPLIT
2	9086100801	CAP SCREW,
3	9086100584	PIN	0.100
4	9086100822	KIT, LATCH	1.80
5	9086100820	GUIDE ASSEMBLY
6	9086100821	PIN
7	9086100933	WIRE, SAFETY
8	9086100805	BOLT
9	9086100919	CHAIN	0.030
10	9086100151	SCREW COUPLING
11	9086100383	BEARING, THRUST
12	9086101391	HOOK & NUT ASSY.
13	7440030000	FITTING, GREASE	0.125
14	9086100804	WASHER
15	90013004	SPACER
16	9086100576	HOUSING, HOOK PIVOT
17	9086100327	DRIVE SCREW
18	9086101383	PLATE, NAME / RATING
19	9086101396	BOLT, TIE
20	9086100014	BEARING, ROLLER	0.450
21	942500	WASHER
22	9086100136	SPACER
23	90013007	SPACER
24	9086100005	NUT
25	9086100691	PIN
26	90013008	SPACER
27	9086100011	PIM, ROLL
28	9086100813	S-HOOK
29	9086101384	PLATE, CAUTION
30	9086100920	PLATE
31	9086100204	DOWEL PIN	0.001
32	90013009	PLATE, SIDE WITH STABILIZER
33	90013013	S H EAVE
34	9086100577	RING,RETAINER C-CLIP
35	9086100579	SPRING	0.008
36	9086100578	PIN, WIGROOVE
37	9086100571	PIN, QUICK RELEASE
