Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
6974100141 (Grove RT 530E )
7974100044 (Grove RT 540E )
TMS 500-2 (Grove RT 770E )
Also known as:
9974102885, 09974102885, 009974102885
Parts for Grove RT 530E, Figure 6974100141:

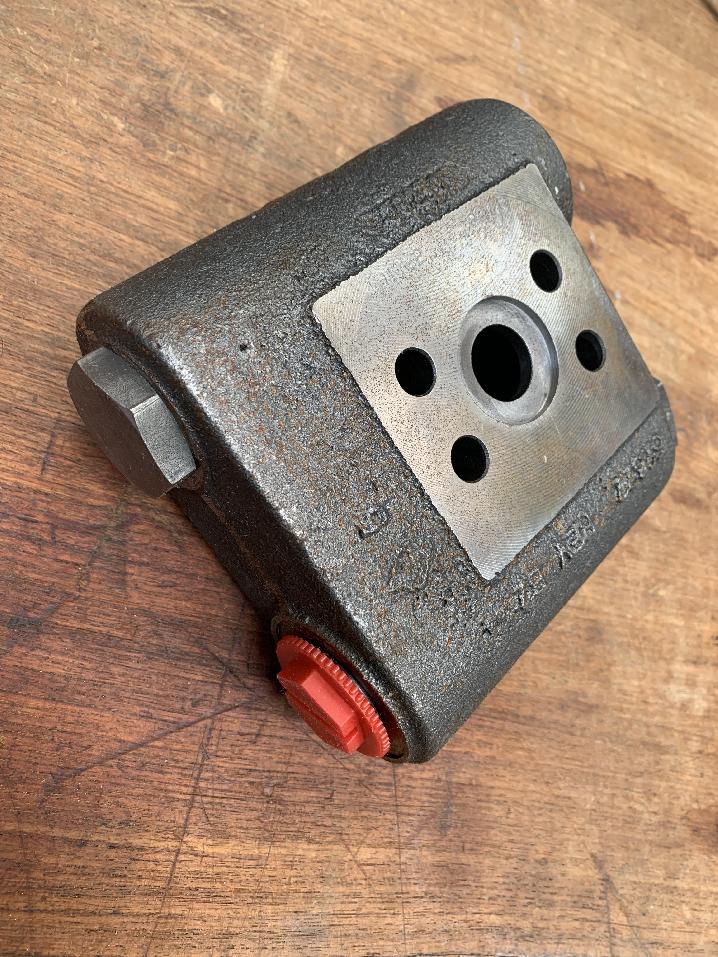

Part Number 9974102885: VAL VE, BRAKE
Pos nr Part number Description Weight in kg
7755908002 O-RING 0.050
9632102806 CAP SCREW
9632102811 KIT, SEAL
9974101280 KIT, SEAL
1 9974102861 CYLINDER, BRAKE 8
3 9974102177 PLATE, PRESSURE 0.520
4 9974102178 RING, BACK-UP 0.230
5 9974102179 SPRING 0.04
6 9974100594 DISC, FRICTION 0.04
7 9974102704 DISK, BRAKE 0.03
10 9974102666 PLANET CARRIER - PRIMARY
11 9974102667 GEAR - PLANET
12 9974102180 SHAFT
13 9974101182 BEARING, ROLLER 0.028
14 9974102181 WASHER, THRUST 0.140
15 9576100517 PIN
15 9974101183 PIN, SPIRAL
16 9974102668 CARRIER, PLANET
17 9974102671 GEAR, PLANET 2.082
18 9974102182 SHAFT
19 9974102183 BEARING 0.064
20 9974102672 SPACER
21 9974102185 WASHER, THRUST
22 9974102942 BASE 40
23 9974102846 SUPPORT, BEARING
25 9974102676 CLOSURE, CABLE DRUM 5.400
26 9974101211 BEARING, BALL 0.816
30 9974102191 RING, RETAINING 0.016
31 9974102849 WASHER, THRUST 0.108
32 9974102731 BASE MTG. MOTOR
34 9974102194 GEAR, SUN 0.059
35 9974102677 PRIMARY SUN GEAR
36 9974102195 SPACER 0.280
37 9974102196 PLATE, THRUST 0.115
38 9974102197 PLATE, THRUST 0.202
39 9974102822 BAR, SPACER
40 9974102854 CAP SCREW
41 9974100476 LOCKWASHER 1/2" I.D.
42 9974102198 CAP SCREW
43 9974102747 WASHER, THRUST 0.054
44 9974102855 GAUGE, SIGHT
45 9974102201 PLUG, FLUSH
46 9974102858 PLUG, VENT 0.006
51 9974102665 BEAIRING, SPRAG 0.070
52 9974102218 BEARING, THAUST 0.018
53 9974102219 RING, RETAINING 0.006
55 9974102221 RING, RETAINING 0.001
56 9974102891 CLUTCH ASSEMBLY
57 9974101201 CAP SCREW
58 9974102882 MANIFOLD
60 9974102883 CAP SCREW
61 9974102884 CAP SCREW
62 9974102885 VAL VE, BRAKE 4.812
63 9974102208 HOSE 0.194
65 9974102686 ADAPTER
66 9974102886 TEE
67 9974102875 FITTING, SWI VEL
68 9974102212 ELBOW
71 9974102852 HOSE
72 9974102887 MOTOR ASSEMBLY 20.750
73 9974102888 IREDUCER
74 9974102889 CAP SCREW
75 9974102890 WASHER, SEALING
78 9974102859 CAP SCREW 0.030
79 9974103066 SIDEPLATE, MOTOR
80 9974103067 SIDEPLATE, SUPPORT
83 9974102820 CAP SCREW
84 9974102821 WASHER
99 9974102705 SPACER 0.030
100 9974102844 WEDGE 0.250
101 9974102824 ROLLER 3.640
102 9974102825 PLATE 1.314
103 9974102826 GUIJDE, ROLLER
104 9974102827 PIN
105 9974102828 LEVER
106 9974102829 LEVER, ROLLER 0.590
107 9974102830 LEVER, ROLLER 0.586
108 9974102831 BRACKET
109 9974102810 ROD 0.038
110 9974102832 SPRING 0.320
111 9974102833 BUSHING
112 9974102834 PIN, COTTER
114 9974102835 CAP SCREW
115 9974102836 CAP SCREW
116 9974102837 LOCKWASHER
117 9974102838 LOCKNUT
118 9974102839 WASHER
119 9974102808 BUSHING 0.012
120 9974102814 ROLLPIN
121 9974102840 ROLLER 22.680
122 9974102841 SHAFT 4.500
123 9974102842 PIN, DOWEL
124 9974102843 WASHER
125 9974100853 CAP SCREW
127 9974102222 KIT, SEAL 0.90
