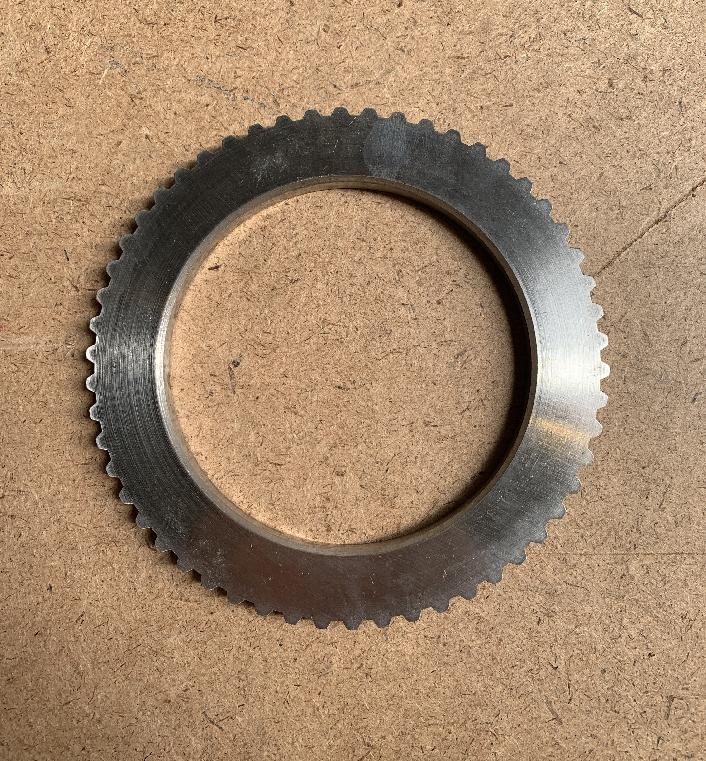

Grove 9904103633 - PLATE, BACKING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

AT part (Grove )
7904990090 (Grove AT 635 )
7904100009.10 (Grove RT 530E )
7904100009.11 (Grove RT 530E )
7904100009.13 (Grove RT 530E )
7904100009.14 (Grove RT 530E )

Also known as:
9904103633, 09904103633, 009904103633

Parts for Grove RT 530E, Figure 7904100009.13:
Part Number 9904103633: PLATE, BACKING

Pos nr	Part number	Description	Weight in kg
1	9904109603	LOW SHAFT,HUB & DRUM W/ VALVE
2	9904108934	PISTON, CLUTCH - ASSEMBLY	1.110
3	9904103637	SEAL	0.008
4	9904103638	SEAL, PISTON	0.002
5	9904103987	DISC, CLUTCH	17
6	9904103635	DISC, CLUTCH	14
7	9904103633	PLATE, BACKING	1
8	9904103632	RING, SNAP
9	9904107783	SPRING, DISC
10	9904103567	SNAP RING	0.012
11	9904109650	SPACER, DISC SPRING
12	9904101353	BEARING, GEAR
13	9904106000	BEARING, REAR
14	9904106001	SNAP RING
15	9904108795	SEGMENT	0.005
16	9904109574	BEARING, SHAFT
17	9904106002	SPACER
18	9904109604	BEARING
19	9904103906	RING, SNAP
20	9904107784	RETAINER, SPRING
21	9904109651	HUB,LOWGEAR
