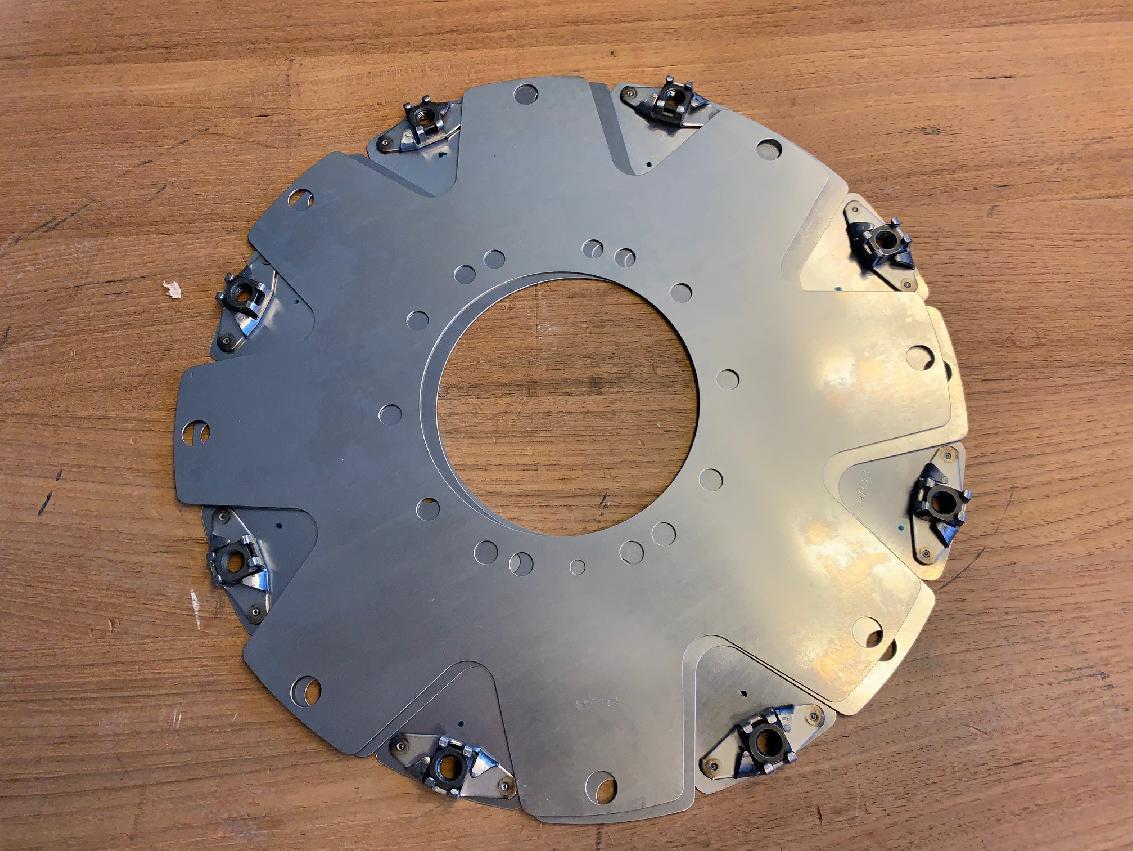

Grove 9904110141 - DRIVE PLATE GROUP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9904110141, 09904110141, 009904110141

Parts for Grove RT 875E, Figure 7904100047:
Part Number 9904110141: DRIVE PLATE GROUP

Pos nr	Part number	Description	Weight in kg
1	9904110163	CONVERTER HOUSING GROUP
2	9904110140	CASE,TRANSMISSION GROUP
3	9904110072	REAR COVER GROUP
4	9904110141	DRIVE PLATE GROUP	4.2
5	9904110164	TURBINE SHAFT/OIL BAFFLE GROUP
6	9904110143	TURBINE/IMPELLER GROUP	0.001
7	9904110165	PUMP DRIVE GROUP
8	9904110430	REVERSE & HIGH SHAFT GROUP
9	9904110431	FWD. & 2ND. SHAFT GROUP
10	9904110432	LOW SHAFT GROUP
11	9904110125	IDLER SHAFT GROUP
12	9904110145	OUTPUT SHAFT GROUP
13	9904110169	PRESSURE REGULATOR/VALVE GROUP
14	9904110170	CHARGE PUMP & COVER GROUP
15	9904110147	ELECT.CONTROL VALVE GROUP
16	9904110078	HI& LOW SHIFT CONTROL GROUP
17	9904110171	PUMP ADAPTOR GROUP
18	9904106243	FLANGE
19	9904101391	NUT	0.19
20	9904101392	WASHER
21	9904110194	O-RING	0.006
22	9904107866	SLEEVE ASSY - PUMP DRIVE
23	9904101190	RING, RETAINING
24	9904101077	RING, SNAP
