Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
GMK (Grove GMK )
7974100013 (Grove RT 875E )
80026025 (Grove RT 880E )
80026025 (Grove RT 890E )
Also known as:
9974102952, 09974102952, 009974102952
Parts for Grove RT 875E, Figure 7974100013:

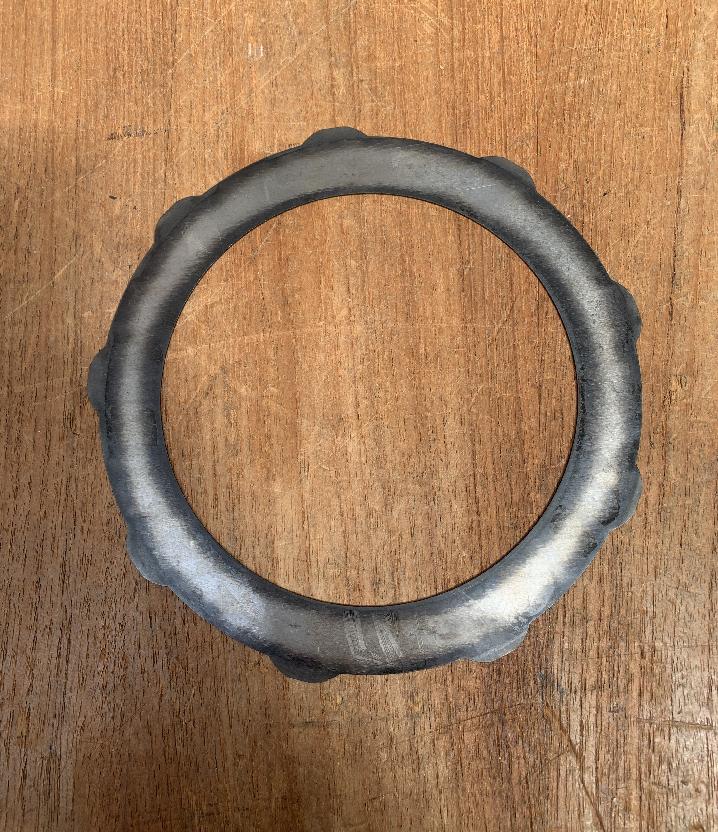

Part Number 9974102952: DISC,BRAKE
Pos nr Part number Description Weight in kg
7755908002 O-RING 0.050
7755904002 O-RING 0.005
9632103277 CAPSCREW
9632103278 KIT, SEAL 0.260
9632103304 SOLENOID 0.700
9632103305 CONNECTOR
9974102227 O-RING 0.001
1 9974103010 CLUTCH ASSY 3.2
2 9974103011 BRAKE CYLINDER ASSY. 14.200
3 9974103012 PLANET CARRIER ASSY. PRIMARY
4 9974103013 PLANET CARRIER ASSY. OUTPUT 0.001
10 9974103031 ROLLER ASSY. CABLE 22.727
40 9974103046 PLATE, SIDE MOTOR 70.227
41 9974102733 HOUSING, BEARING 7.43
42 9974103015 CAPSCREW
44 9974101194 REDUCER, BUSHING
45 9974102858 PLUG, VENT 0.006
46 9974102701 GAUGE, SIGHT 0.068
48 9974103047 PLATE, SIDE
51 9974102954 CAPSCREW
55 9974103017 GEAR, SUN/PRIMARY 1.976
56 9974103018 CLOSURE, DRUM
59 9974103020 DRUM, CABLE 227.272
60 9974103048 CAPSCREW 0.116
61 9974103049 BASE
62 9974103050 LOCKWASHER 0.010
64 9974702728 BEARING
65 9974102702 BEARING 1.650
66 9974103023 WASHER, THRUST 0.160
68 9974102730 O-RING 0.06
69 9974102703 SEAL 0.40
70 9974102963 SEAL 0.63
71 9974102973 WEDG E,CABLE
72 9974102201 PLUG, FLUSH
77 9632103276 MOTOR, HYDRAULIC 68.181
78 9974103036 MANIFOLD 1.160
79 9974103061 VALVE ASSY. BRAKE
81 9974102982 CAPSCREW
82 9974103052 SENSOR ASSEMBLY 0.120
83 9974102681 O-RING 0.010
84 9974103054 FITTING, TEE
85 9974102929 HOSE ASSY 0.224
86 9974103055 FITTING, ELBOW 0.066
89 9974102984 CAPSCREW
90 9974103037 CAPSCREW
91 9974103038 LOCKWASHER
97 9974102985 FITTING,REDUCER
98 9974103039 O-RING 0.010
99 9974102931 PLUG
143 9576100566 RING, RETAINING 0.001
144 9974103032 BEARING 0.180
145 9974103028 BAR TIE
146 9974103029 RING,SNAP 0.001
147 9974103030 ADAPTER
152 9974103033 RING, RETAINER 0.014
203 9974102952 DISC,BRAKE 0.09
204 9974102953 DISC,FRICTION 0.06
205 9974102955 SEAL,U-CUP 0.18
206 9974102974 RING,BACK-UP 0.230
207 9974102975 PLATE,PRESSURE 0.936
208 9974102976 SPACER 0.350
209 9974101168 BRAKE SPRING 0.022
210 9974102977 SPACER,SPRING 0.058
211 9974102978 O-RING 0.17
212 9974102979 RING,BACK-UP 0.005
213 9974102980 O-RING 0.002
214 9974103034 CAPSCREW
216 9974103035 PLUG
330 9974101174 ROLLER 0.045
331 9974102718 PIN
347 9974102191 RING, RETAINING 0.016
357 9974103019 GEAR, SUN/OUTPUT 2.110
401 9974103002 SPACER 0.020
437 9974103003 WASHER,THRUST
438 9974100902 ROLLER 0.012
610 9974103040 ROLLER 6.900
611 9974102987 BRACKET
612 9974102988 BRACKET,MTG.
613 9974103041 SHAFT, ROLLER
614 9974102990 LEVER
615 9974102991 ARM,PIVOT R.H.
616 9974102992 ARM,PIVOT L.H.
617 9974102831 BRACKET
618 9974102810 ROD 0.038
619 9974102993 SPRING
620 9974102833 BUSHING
621 9974102834 PIN, COTTER
622 9974102807 WASHER
623 9974103042 CAPSCREW
624 9974100476 LOCKWASHER 1/2" I.D.
625 9974102995 NUT
626 9974102839 WASHER
627 9974103043 CAPSCREW
628 7950160020 WASHER, LOOK 3/8" I.D.
629 9974102808 BUSHING 0.012
630 9974102996 ROLLPIN
631 9974102181 WASHER, THRUST 0.140
637 9974102997 CAPSCREW
638 9974103027 CAPSCREW
700 9974103044 KIT, SEAL 1.250
