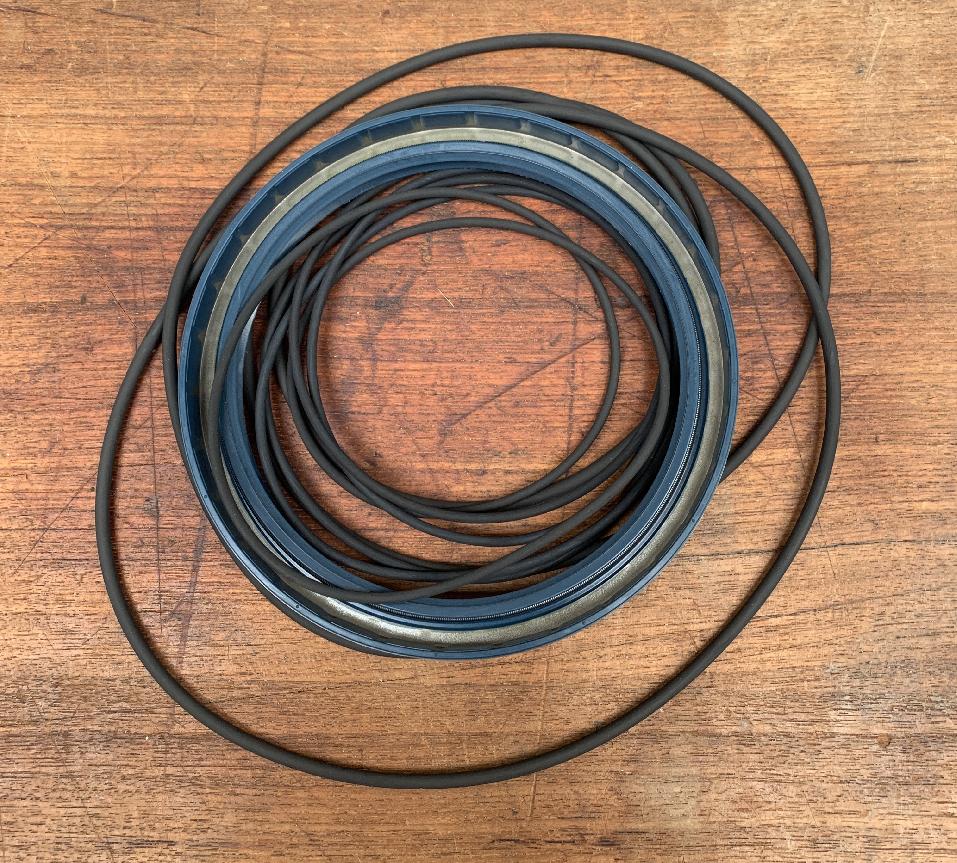

Grove 9576101228 - KIT, SEAL PLANETARY

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9576101228, 09576101228, 009576101228

Parts for Grove RT 880E, Figure 7576134157:
Part Number 9576101228: KIT, SEAL PLANETARY

Pos nr	Part number	Description	Weight in kg
	7755904002	O-RING	0.005
	9576101153	KIT,SEAL	0.024
1	9576101209	PINION	11.940
2	9576101107	425
3	9576101108	425
4	9576101210	SHAFT, OUTPUT
6	9576101211	BEARING
8	9576101212	KIT, SHIM
9	9576101213	BEARING
11	9576101214	NUT, RING
12	9576101223	GEAR, SUN
13	9576101224	SHAFT
14	9576101117	425	0.454
16	9576101225	WASHER
17	9576101119	BEARING,NEEDLE	0.005
19	9576101215	GEAR, RING
20	9576101226	RING, RETAINER
21	9576101123	SHAFT
24	9576101124	WASHER
25	9576101216	CAPSCREW
26	9576101126	GEAR,RING	2.460
27	9576101127	BEARING,NEEDLE	0.002
35	9576101132	CAPSCREW
38	9576101133	RING,RETAINER	0.010
39	9576101176	GEARSUN
40	9576101135	BEARING	0.260
41	9576101136	COUPLING
42	9576101137	RING,RETAINER	0.160
43	9576101105	MOTOR ASSY. HYD.	11.950
45	9576101138	RING,RETAINER	0.024
53	7709800001	PLUG, SAE #4	0.009
57	9576101140	RING,RETAINER	0.165
59	9576101141	PLUG
60	9576101142	PLATE,END
62	9576101217	PIN
63	9576101227	PLATE, END
64	9576101218	RING, RETAINER
65	9576101219	COVER, OUTPUT
67	9576101220	PLUG
69	9576101148	CAPSCREW
70	9576101149	PIPE
71	9576101189	BREATHER	0.175
73	9576101151	DIPSTICK
74	9576101152	ELBOW
78	9576101157	KIT,BRAKE ASSY.	22.727
79	9576101096	KIT,SEAL BRAKE	0.2
80	9576101097	KIT, DISC BRAKE	2.7
81	9576101228	KIT, SEAL PLANETARY	0.280
