AT Parts (Grove )
6176002603 (Grove RT 9100 )
RT 9100 (Grove RT 9100 )

Also known as:
6188000707, 06188000707, 006188000707

Parts for Grove RT 9100, Figure 6176002603:

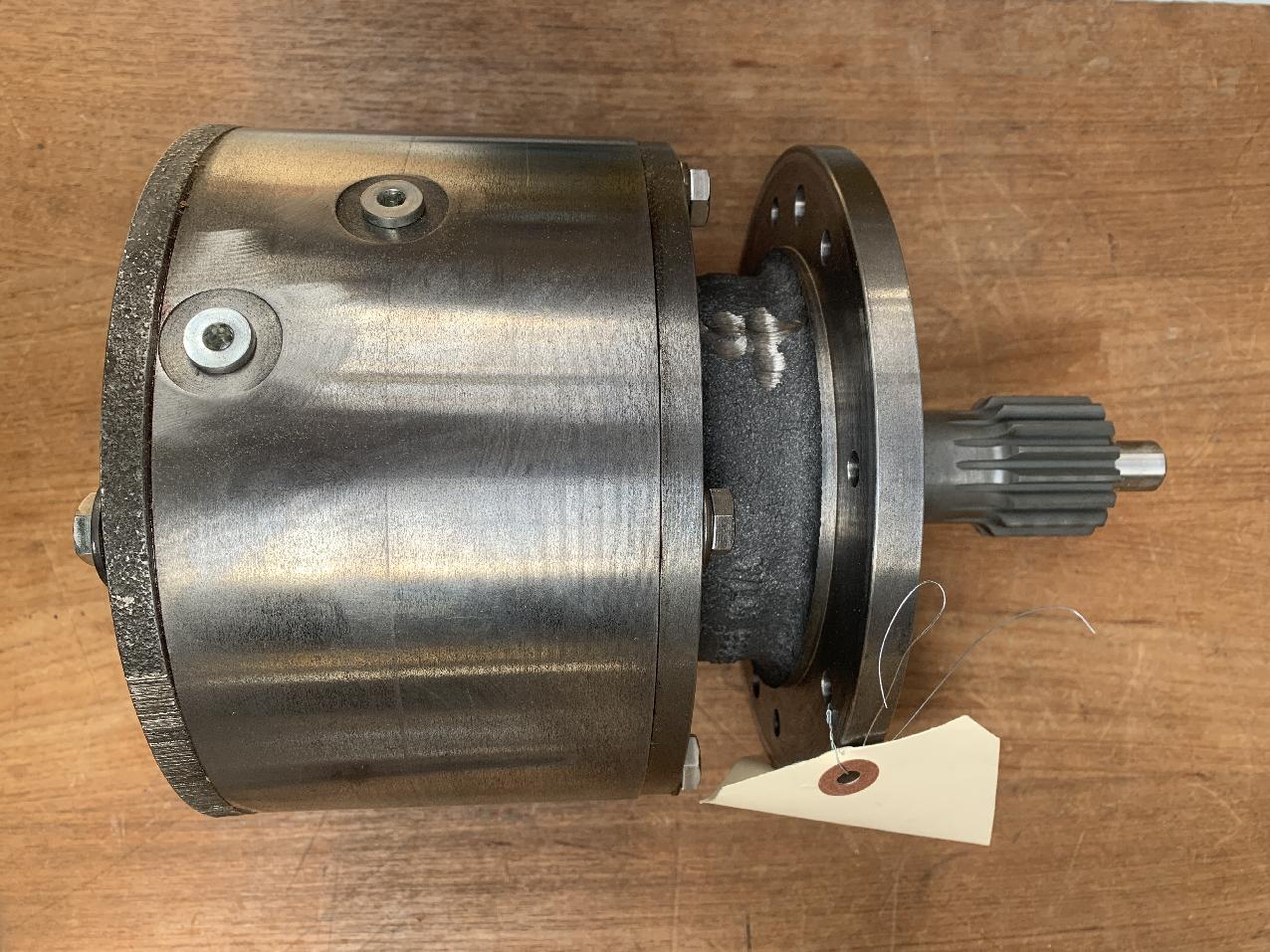

Part Number 6188000707: BRAKE ASSEMBLY - SWING

Pos nr	Part number	Description	Weight in kg
1	6547000109	HOUSING, GEAR
2	6258000425	COVER, GEAR HOUSING
3	6188000707	BRAKE ASSEMBLY - SWING	42
4	6250000017	PLANET CAGE AND SHAFT	29.51
5	7690171624	DOWEL, GROUND
6	6176000278	SHIM, LAMINATED
7	6199000530	BEARING SPACER	0.074
8	6176000075	INTERNAL GEAR	16.75
9	7176000073	GEAR, PLANET AND PINION	6.6
10	7176000074	PLANET SHAFT	0.47
11	7069001153	BEARING
12	7115151050	CAPSCREW	0.014
13	7949000534	WASHER, HARDENED ROUND
14	7115182050	CAP SCREW	0.078
15	7660180008	NUT, HEX
16	7950180020	LOCK WASHER, 1/2" I.D.
17	7690141444	PIN, EXPANSION ROLL	0.001
18	7069000111	BEARING PLANET	0.09
19	7069000107	BEARING	0.12
20	7794000145	SEAL SHAFT	0.1
21	7755358000	O-RING	0.012
22	6794000266	RETAINER, SEAL	1.7
23	7069000110	BEARING	2.34
24	7115181250	CAPSCREW	0.045
25	7115181050	BOLT, HEX 112"-13 HC I 1 1/4"-GRD S	0.042
26	7444040021	PIPE PLUG
27	7444060021	PLUG, PIPE
28	6608000234	LUG, LIFTING
29	7440000000	FITTING, GREASE 1/8"NPT	0.006
30	7705002044	NAMEPLATE
31	7790040404	SCREW, SELF-TAPPING
32	7949000235	WASHER 1/2 ID	0.006
