Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT part (Grove )
9333101692 (Grove AT 422 )
9333102436 (Grove RT 9100 )
RT 9100 (Grove RT 9100 )
Also known as:
9333101459, 09333101459, 009333101459
Parts for Grove RT 9100, Figure 9333102436:

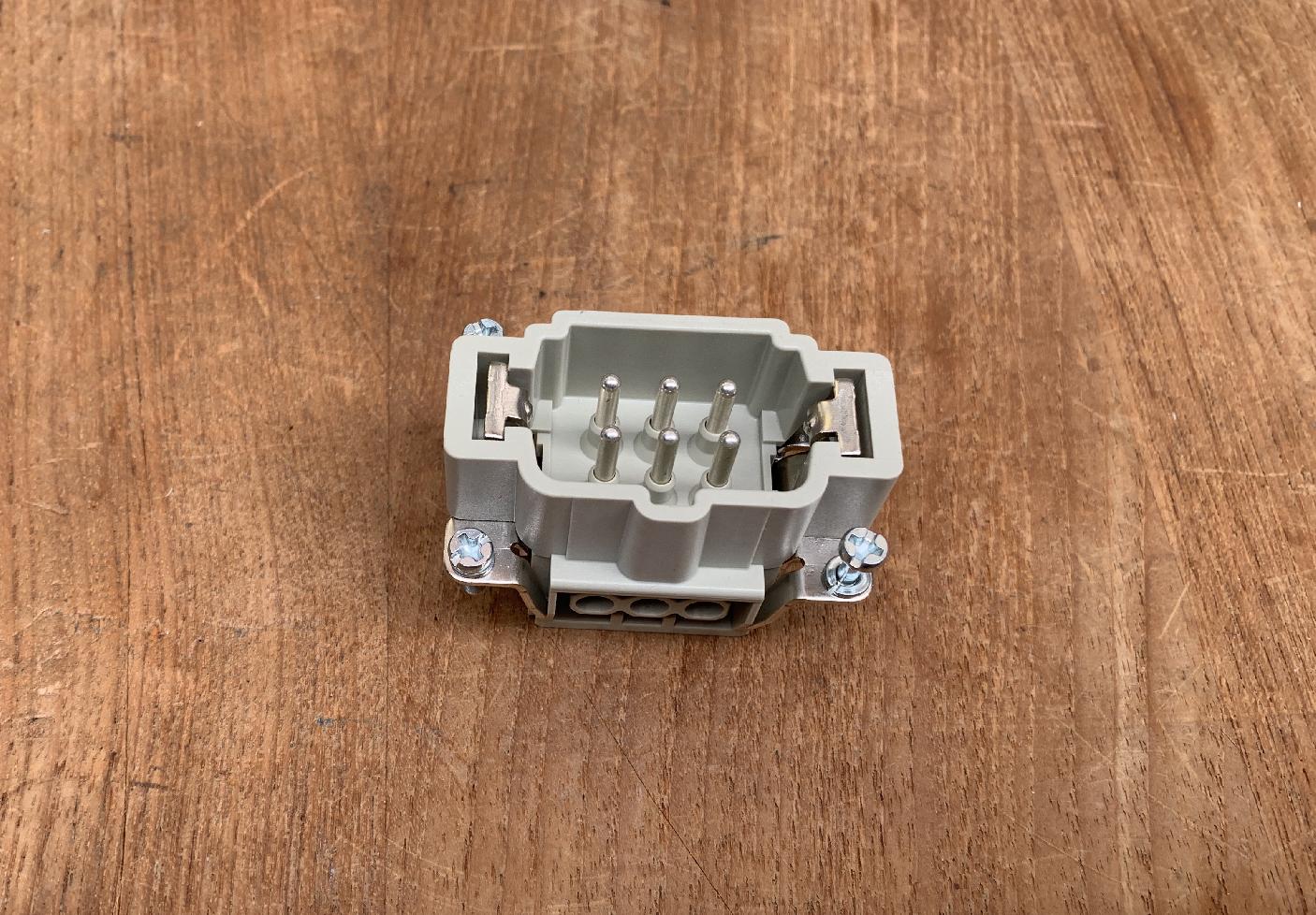

Part Number 9333101459: INSERT, MALE -6 PIN
Pos nr Part number Description Weight in kg
1 9333102576 FRAME, WATER DEFLECTION
1 9333102644 DEVICE ASSEMBLY, THIRD WRAP
1 9333101461 PLUG -6PIN 0.110
1 9333101662 HOUSING
1 9333102181 CONSOLE ASSEMBLY - DS350GW
2 9333102343 401
2 9333102627 HARDWARE, FRAME MOUNTING
2 9333101448 CENTRAL UNIT ASSEMBLY, 12 VOLT
2 9333101589 COVER
2 9333101743 CABLE, ELECTRICAL
2 9333102058 REDUCER, PG13.5-9
3 9333101995 403
3 9333102729 PLATE, MOUNTING
3 9333101425 RECEPTACLE -6 PIN 0.240
3 9333101590 PLATE, MOUNTING
4 9333101591 SEALING, COVER(1 1/2.MTR LENGTH) 0.108
4 9333101459 INSERT, MALE -6 PIN 0.050
4 9333101469 TRANSDUCER, PRESSURE 0.420
5 9333101472 203 0.004
5 9333102852 CABLE, 7 X 0.5 S.S
5 9333101426 INSERT, FEMALE -6 PIN 0.450
5 9333101438 PLUG - 10 PIN
5 9333101663 BOARD, TERMINAL
6 9333101442 INSERT, MALE - 10 PIN
6 9333101533 PLUG - 16 PIN
6 9333101593 BOARD, MAIN 0.862
6 9333101765 FASTON, FEMALE
6 9333102396 CABLE
7 9333101473 FASTON, FEMALE
7 9333101540 INSERT, FEMALE - 16 PIN
7 9333101594 CABLE, CONNECTING
8 9333102586 SCREW
8 9333101595 CABLE, CONNECTING
8 9333102030 STRAIN RELIEF
9 9333102674 STRAIN RELIEF 0.026
9 9333101664 RELAY
9 9333101733 REDUCER
10 9333102238 A2B SWITCH, WITHOUT CRIMP 0.850
10 7112150850 BOLT, HEX S/16"-10 HC I 1" - GRD 2
10 9333101443 PLUG, HOLE 0.014
10 9333101648 RELAY
11 9333102923 LIGHTBAR, EXTERNAL
11 9333101579 STRAIN RELIEF 0.058
11 9333102233 STRAIN RELIEF
12 7112150650 CAPSCREW
12 9333102924 LIGHTBAR DRIVER ASSEMBLY
12 9333101450 PLATE, ADAPTER
12 9333101599 STRAIN RELIEF
13 7115140850 CAPSCREW 0.020
13 7110151205 CAP SCREW 0.016
13 9333101665 SWITCH, OVERRIDE
14 7950150050 LOCK WASHER 5116" RED 0.002
14 9333101666 HOLDER, FUSE
15 7950150141 WASHER 5/16" I.D. 0.24
15 9333101667 FUSE, 2 AMP 0.450
16 7866142140 STUD 0.060
16 7482000019 FUSE, 10 AMP
17 7660140000 NUT. HEX 114 0.004
17 7105100611 SCREW, #10X32
17 9333102854 CABLE, 14 X 0.5 D.S.
17 9333101654 KEY
18 7950100141 #10 DIA PLAIN W 0.004
18 7950140050 LOCK WASHER 0.006
18 9333102023 TIMER, MODULE
19 7950140141 WASHERI/IT" HARROW 0.050
19 9333102517 CABLE
19 9333102643 DIODE
20 7300000101 CLAMP, TUBING 0.014
20 7296000004 INHIBITOR, CORROSION 0.140
20 7660101130 NUT, HEX 0.100
20 9333102626 FRAME ASSEMBLY - WATER
20 9333102848 CABLE, 2 X 0.5 S.S.
21 7111100410 SCREW, MACHINE
21 9333101918 DESSICANT PACK, MOISTURE 0.180
22 7950100050 #10 DIA HELICAL 0.005
22 9333102987 CABLE, 10 X .5 SS (BULK)
23 7110150605 CAP SCREW,
23 9333101740 CABLE, ELECTRICAL
24 9333102646 NUT, HEX
25 9333102810 GEAR, WI PLATE
25 9333101545 STORAGE, CABLE
26 9333102811 CONTACT BRUSH ASS
26 9333101735 STRAIN RELIEF
26 9333101838 CABLE, ELECTRICAL
27 9333102812 SLIPRING, 10COND.
27 9333102888 DECAL, WARNING (CONSOLE)
27 9333102221 TRANSDUCER, FORCE
28 9333102813 SET SCREW
28 9333101837 PLUG, FILTER
29 9333102219 PREAMPLIFIER
30 9333101744 CABLE, ELECTRICAL
31 7112160850 REPLACED BV 7115160850
32 7950160141 WASHER, 3/8" PLAIN NARROW 0.004
33 7950160050 LOCK WASHER 3/8" PEG 0.080
34 7660160000 NUT, HEX 0.018
36 9333102057 REDUCER 0.019
37 9333102235 ELECTRIC CONDUIT PER FEET 0.402
37 6099000432 BOLT, ROOK
38 7850000102 TIE, CABLE (NATURAL)
39 9333102420 CABLE
* Selected parts are automatically added to your RFQ list *
9333101459 Grove RT 9100 INSERT, MALE -6 PIN
