Parts for Grove RT 9150E, Figure 03130063:

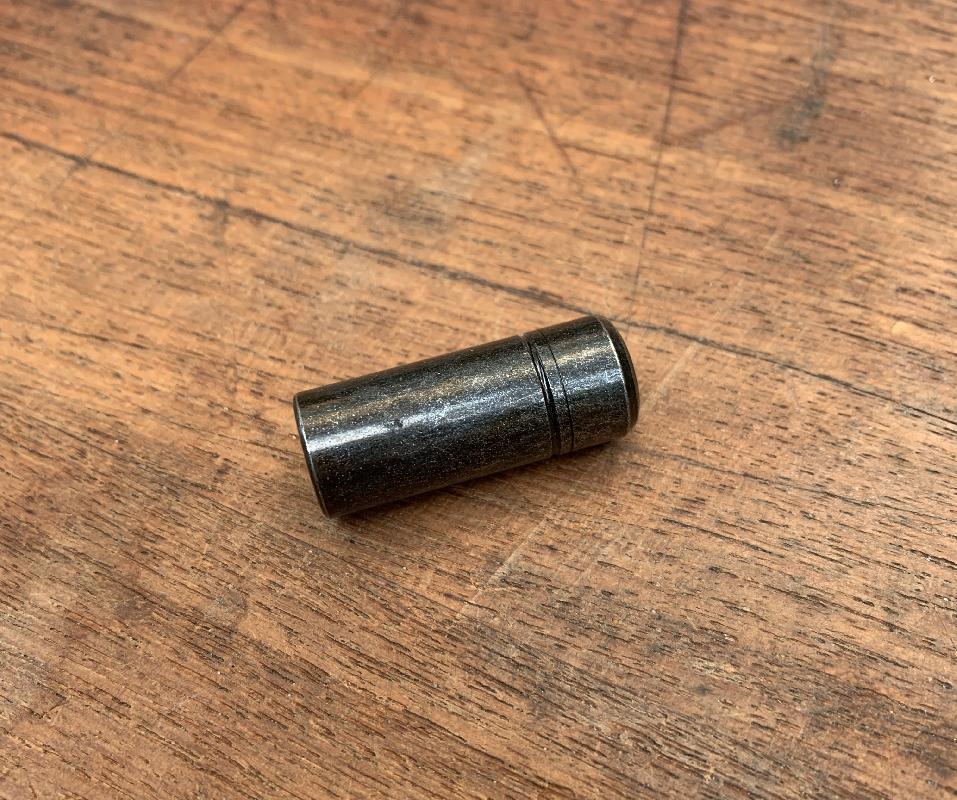

Part Number 03041087: SOCKET 432-23787-1 LINCOLN
Pos nr Part number Description Weight in kg
1 3130388 SLIDER 1
2 3145496 SLIDING PIECE 2
2 03041087 SOCKET 432-23787-1 LINCOLN 0.01
3 3092226 SLIDER 3 1.060
3 2257479 HIGH PRESSURE HOSE 0.05
4 3130389 SLIDER 4
4 1682055 NOZZLE 0.005
5 3145497 SLIDING PIECE 5
5 0117506 CUTTING RING 0.015
6 3092375 PROTECTION STRIP 2.94
7 3092376 SLIDER 0.92
8 3092302 LOCK
9 3092303 LOCK
10 3093984 STRIP T10
11 3093985 STRIP T=1 1
12 3093986 STRIP T12
13 3093987 STRIP T=13
14 3093988 STRIP T=14
15 3093989 STRIP T=15
16 3093990 STRIP T=16
17 3093991 STRIP T=17
18 3093992 STRIP T=18
19 3093993 STRIP T=19
20 3093994 STRIP T=20
21 3093995 STRIP T=21
22 3093996 STRIP T=22
106 3103086 PLATE
107 3103087 PLATE
108 3103088 PLATE
109 3113826 PLATE
110 3113827 PLATE
111 3113828 PLATE
112 3113829 PLATE
113 3130374 SLIDER
114 3125407 PLATE
115 0100782 HEXAGON SOCKET HEAD CAP SCREW
116 2250017 THREADED PIN 0.11
117 3125535 SLIDER T=16
118 3125534 SLIDER T=17
119 3125533 SLIDER T=18
120 3125532 SLIDER T=19
121 3125531 SLIDER T=20
122 3125513 SLIDER T=21
123 3125514 SLIDER T=22
124 3125515 SLIDER T=23
125 3125516 SLIDER T=24
126 3125517 SLIDER T=25
127 3125518 SLIDER T=26
128 3125519 SLIDER T=27
129 0100794 HEXAGON SOCKET HEAD CAP SCREW 0.03
130 1146639 HEXAGON BOLT
131 3130393 PLATE
132 3134113 STRIP T=8
133 3134114 STRIP T=9
134 3134115 STRIP T=10
135 3134116 STRIP T=1 1
136 3134117 STRIP T=12
137 3134118 STRIP T=13
138 3134119 STRIP T=14
139 3134120 STRIP T=15
140 3134121 STRIP T=16
141 3134122 STRIP T=17
142 3134123 STRIP T=18
143 3134124 STRIP T=19
144 3134125 STRIP T=20
145 3134126 STRIP T=21
146 3134127 STRIP T=22
147 3134128 STRIP T=23
148 3134129 STRIP T=24
149 3134130 STRIP T=25
150 0437745 HEXAGON NUT 0.015
