Figures in which the part appears:
Also known as:
03041086, 3041086, 003041086, 0003041086
03041086, 3041086, 003041086, 0003041086
Parts for Grove RT 9150E, Figure 80008127:

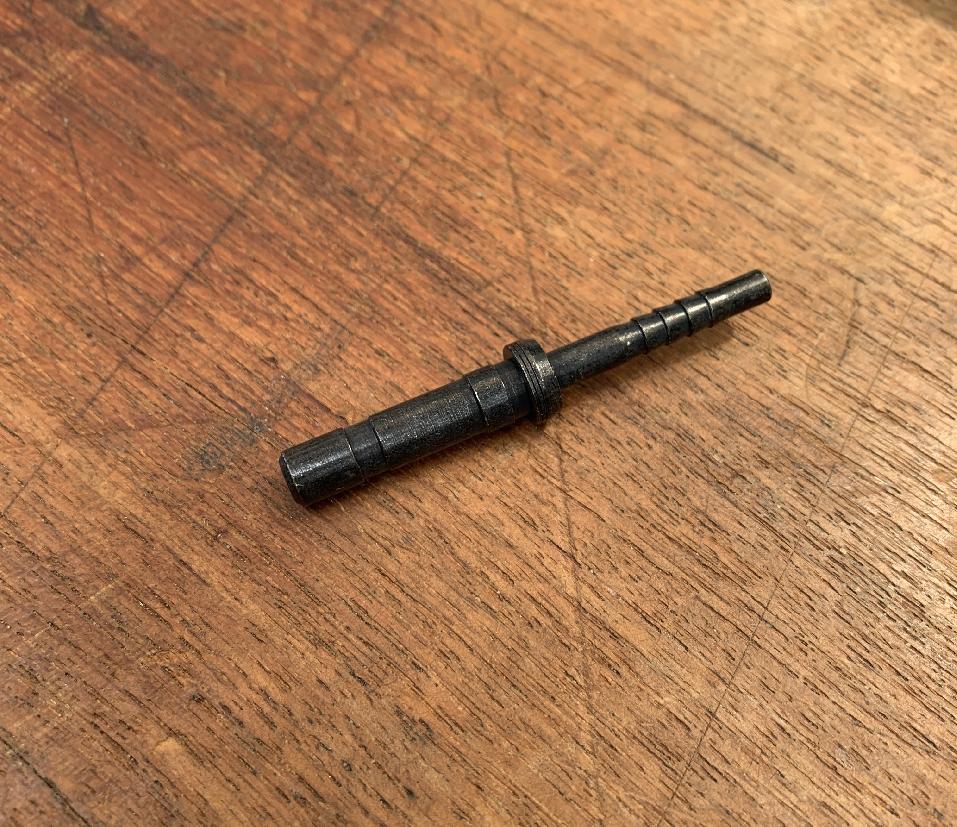

Part Number 03041086: NOZZIE 432-23781-1 LINCOLN
Part Number 03041086: NOZZIE 432-23781-1 LINCOLN
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 9926108423 | KIT, SEAL | 0.004 | |
| 1 | 03041086 | NOZZIE 432-23781-1 LINCOLN | 0.005 |
| 2 | 9926108422 | VALVE, CARTRIDGE | |
| 2 | 03041087 | SOCKET 432-23787-1 LINCOLN | 0.01 |
| 3 | 2257479 | HIGH PRESSURE HOSE | 0.05 |
| 3 | 90015312 | COILS ASSY. 24V. | 0.164 |
| 4 | 1682055 | NOZZLE | 0.005 |
| 4 | 9926107745 | NUT | 0.010 |
| 5 | 0117506 | CUTTING RING | 0.015 |
| 6 | 0437819 | COUPLING NUT | 0.010 |
