Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT part (Grove )
80026704 (Grove RT 9150E )
Also known as:
7750000058, 07750000058, 007750000058
Parts for Grove RT 9150E, Figure 80026704:

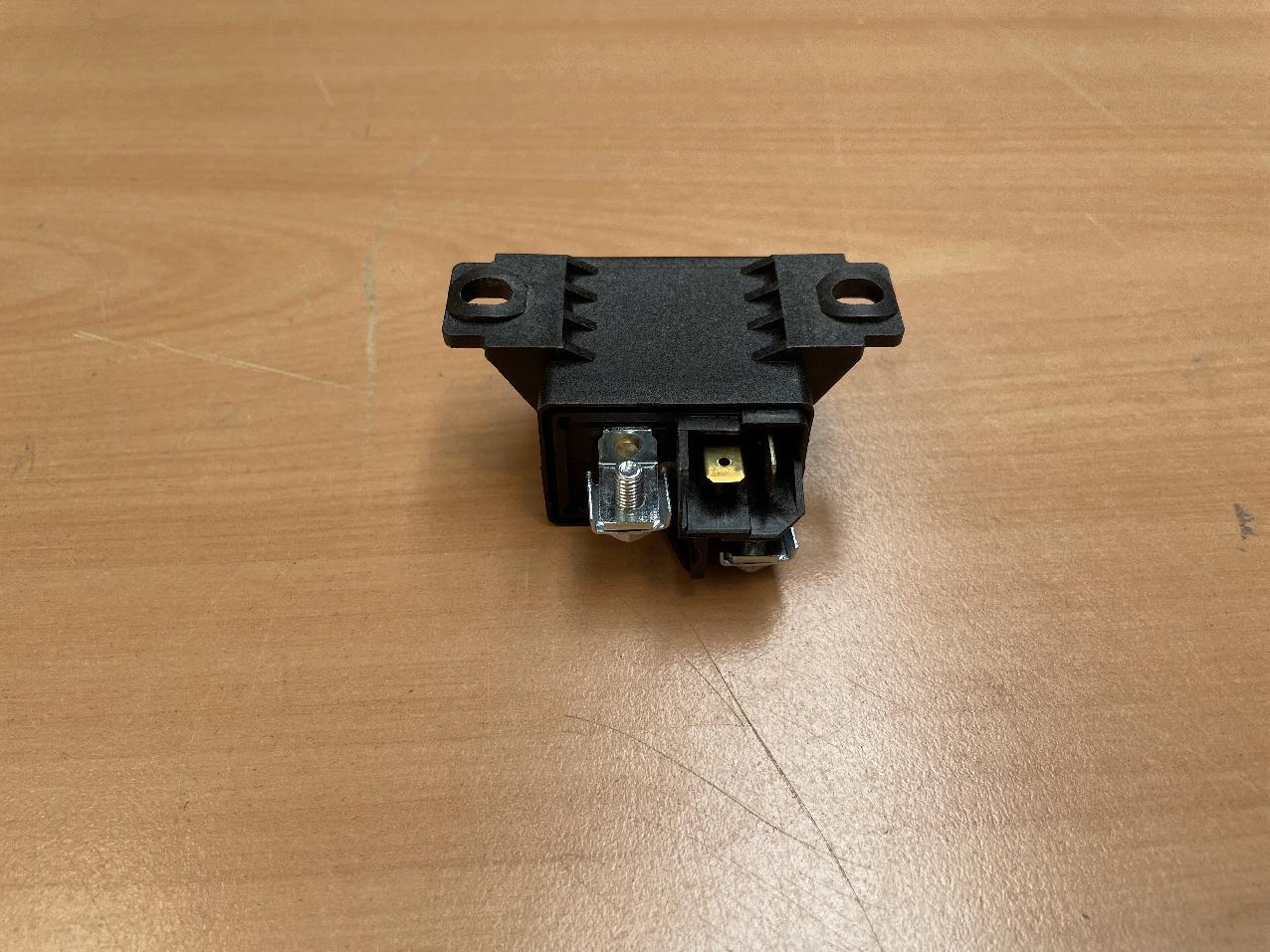

Part Number 7750000058: RELAY, 24 VOLT
Pos nr Part number Description Weight in kg
8 7850000208 TIE, CABLE 1
9 1926578 PLUG HOUSING 0.01
10 2311615 PLUG HOUSING 0.005
11 2318058 PLUG CONNECTION 0.001
12 3041214 HOUSING 0.210
13 3317499 TIMER HOUSING 0.01
14 3327156 TIMER HOUSING 0.005
15 3327154 TIMER HOUSING 0.010
16 7086100052 TERMINAL BLOCK
17 7750000058 RELAY, 24 VOLT 0.090
18 7709000883 PLUG 0.014
19 7246100322 CABLE 20GAI2COND TWST,SHD/DRN
20 7557000680 RESISTOR, 121 OHMS 0.06
21 3318970 CONTACT SPRING BAND 0.022
22 3318969 CONTACT SPRING 0.005
23 7826000626 SOCKET CONTACT 0.005
24 7826000087 SOCKET CONTACT 0.010
25 7689000503 PLUG SEAL 0.005
26 7345191401 TERMINAL 0.004
27 7345241901 TONGUE, INSULATED RING 0.001
28 7364002417 RECEPTACLE,
29 2257093 BUSH 0.001
30 3041448 SINGLE PIN CONTACT
31 7345001752 TERMINAL 16-I4AWG 0.005
32 7892000282 RECEPTACLE, WITH TANG
33 2311919 INSULATING SLEEVE 0.080
34 3318953 RECEPTACLE 0.002
35 1148125 RECEPTACLE 0.010
36 7892001000 FERRULE, SINGLE WIRE
38 7892001002 FERRULE, SINGLE WIRE 0.005
39 3317968 BLIND PLUG 0.010
40 7345211701 TONGUE, INSULATED RING 0.100
41 7345211901 TERMINAL 12- 10 AWG 0.005
42 7345001744 TERMINAL, FEMALE 16 - 14 AWG 0.160
43 7345001444 TERMINAL, FEMALE 0.005
45 1148081 RECEPTACLE 0.005
48 3041217 MICRO TIMER CONTACT 0.01
49 3041215 JUNIOR POWER TIMER CONTACT 0.004
51 3041216 SINGLE-LINE SEAL 0.01
52 7892000195 PARALLEL - NON-INSULATED 0.005
53 7892000194 PARALLEL - NON-INSULATED
54 7892000196 PARALLEL - NON-INSULATED 0.003
55 8594100256 TUBING, HEAT SHRINK 1/4" I.D. 0.010
56 8594100257 H.S. TUBING - 1
57 7826000109 SOCKET, RELAY
58 7826000079 SOCKET, RELAY 0.043
60 7345001852 TERMINAL 0.005
61 3041213 PROTECTIVE COVER 0.020
62 2318057 FULL METAL HOOD 0.05
63 7086001800 BLOCK, TERMINAL
64 80030421 LONG WIRE PIN-BLUE
65 80030422 LONG WIRE PIN-YELLOW
66 80030419 TERM-20 FERRULE SINGLE INSUL8
* Selected parts are automatically added to your RFQ list *
7750000058 Grove RT 9150E RELAY, 24 VOLT
