Grove 3324106 - DRIVE GROUP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3324106, 03324106, 003324106

Parts for Grove GMK 3060-2, Figure 3057659-ETL:

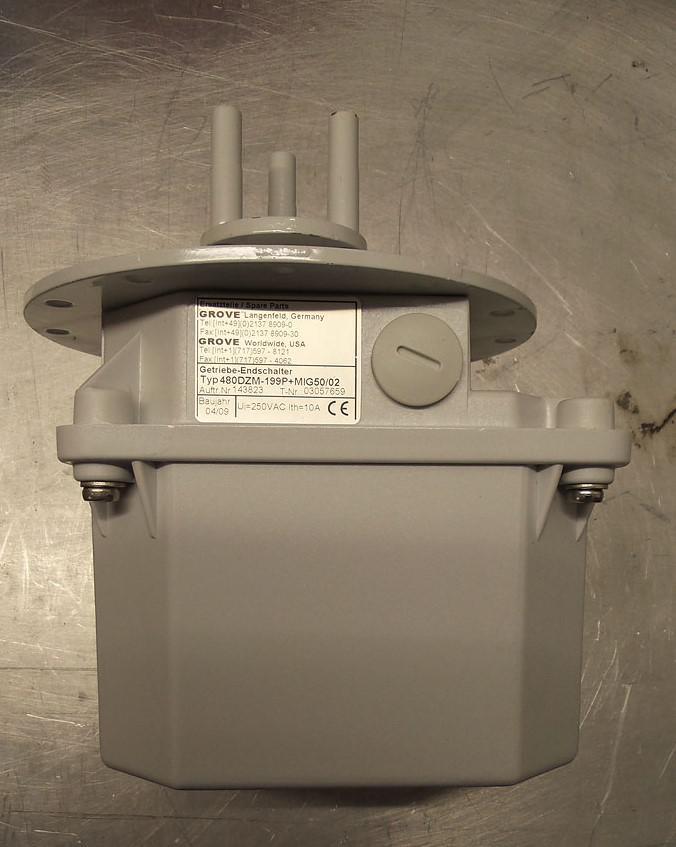

Part Number 3324106: DRIVE GROUP

Pos nr	Part number	Description	Weight in kg
1	3322896	GEAR-TAPPET GROUP	0.010
2	3324106	DRIVE GROUP	1.7
3	3322897	CONTACT GROUP	0.35
4	2315305	O-RING, 135 X 4	0.005
5	3324107	O-RING, 5,3 X 2,4	0.001
6	3043870	O-RING, 18 X 2	0.005
7	3135690	HOOD	1
8	3137793	CONDUCTOR BOARD GROUP	0.001
9	4161787	HOUSING REAR
10	3135800	FLANGE
11	2311745	COUNTERSUNK SCREW
12	3322899	ROTARY SHAFT SEAL	0.005
13	3322898	GROOVED BALL BEARING	0.05
14	0103718	HEXAGON SOCKET HEAD CAP SCREW
15	4161788	SAFETY SCREW
