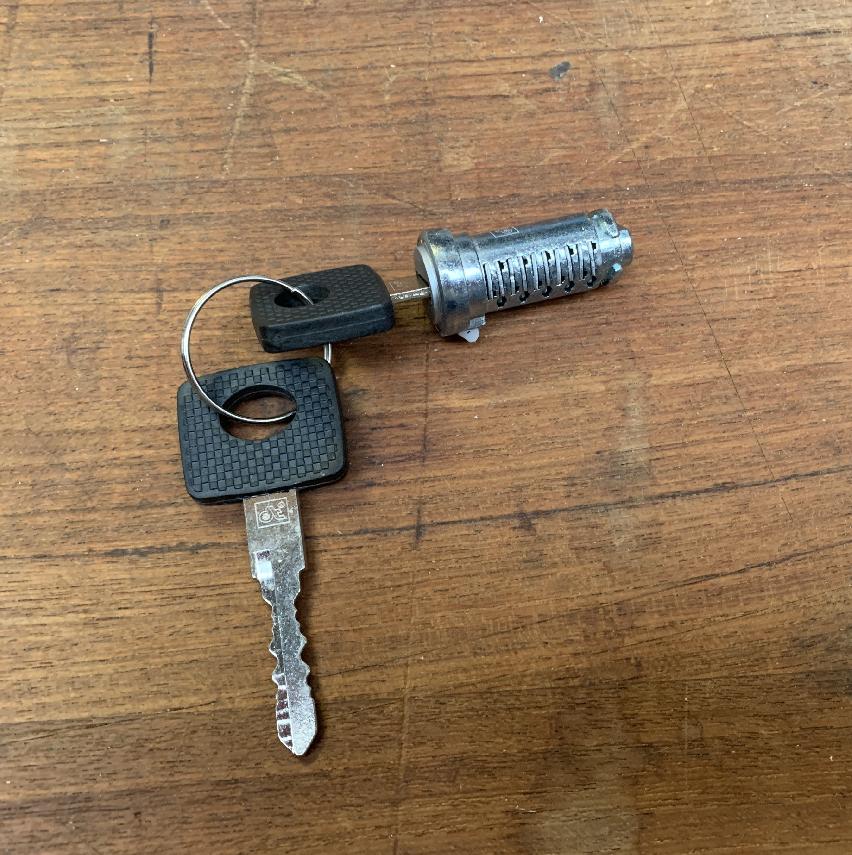

Grove 4181353 - LOCK ASSY.

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
4181353, 04181353, 004181353

Parts for Grove GMK 3060-2, Figure 4240263-ETL:
Part Number 4181353: LOCK ASSY.

Pos nr	Part number	Description	Weight in kg
1	3135065	STEERING COLUMN ADJUSTMENT
2	3200298	STEERING WHEEL WITHOUT AIRBAG
3	3193986	END COVER
4	3320956	STEERING ROD SWITCH, LEFT	0.84
5	3326687	STEERING LOCK WITHOUT LOCKCYLI	0.980
6	2311113	BOLT	0.015
7	4181353	LOCK ASSY.	2
8	4158313	PROTECTING CAP
9	3200303	SHELL
10	3200302	SHELL
11	3254386	DECKING
12	3135070	BOLT
13	3315199	NUT
14	3315207	BOLT
15	3382184	SCREW
16	3383612	SLEEVE
17	3101038	BELLOWS	0.001
018	3199920	CARDAN SHAFT	3.65
19	2311116	BOLT
20	4158323	HEXAGON NUT
21	3254381	HEXAGON SCREW
22	2316935	WASHER	0.005
23	3044936	HEXAGON NUT M8	0.005
24	4257028	LENSE FLANGE HEAD WITH HEXAGON SOCKET
25	3134390	LABEL "GROVE"	0.003
