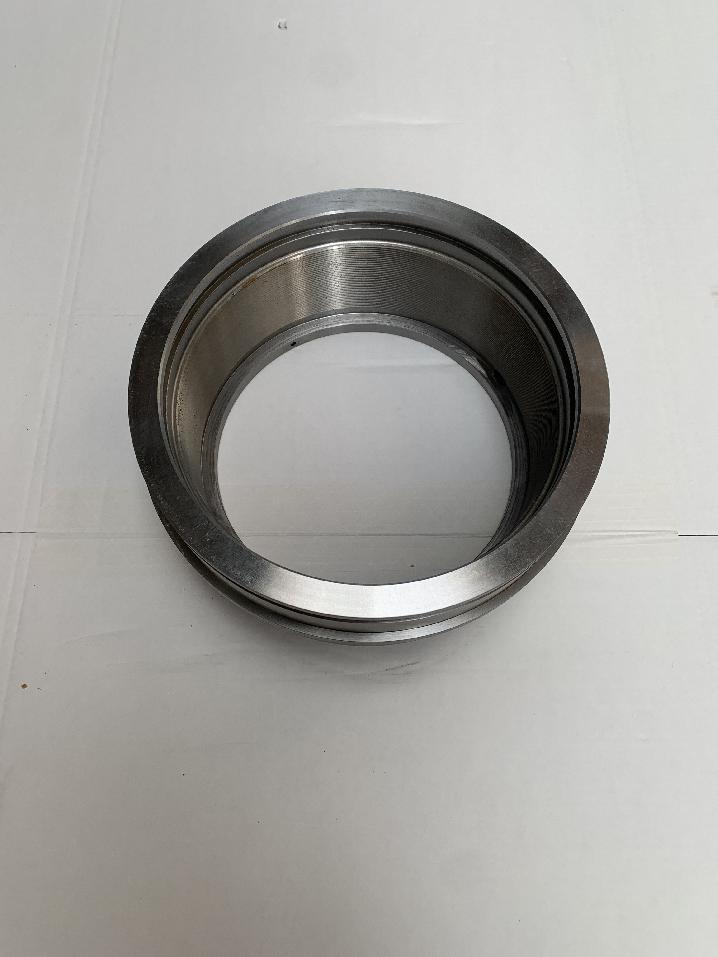

Grove 6701001017 - PISTON, 12" CYLINDER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
6701001017, 06701001017, 006701001017

Parts for Grove TMS 700 E, Figure 6372100195:
Part Number 6701001017: PISTON, 12" CYLINDER

Pos nr	Part number	Description	Weight in kg
	7755021002	O-RING	2.320
	7755906002	O-RING	0.045
	7755904002	O-RING	0.005
	7755916002	O-RING	0.002
	7199100008	LINER BUSHING	1.942
	7199100001	LINER BUSHING	4.450
1	6372100174	BARREL, 12" CYLINDER
2	6768100114	ROD WELD-10.00 DIA	432
3	6701001017	PISTON, 12" CYLINDER	17.300
4	6372100134	HEAD, 12" CYLINDER	6.808
5	7926003679	VALVE ASSEMBLY - HOLDING	5.830
6	6753001446	RING, RETAINING	15.508
7	7794000662	SEAL	0.425
8	7753100020	BACK-UP RING 10.00 ROD
9	7754000708	O-RING, LOW TEMPERATURE
10	7754000178	O-RING, LOW TEMPERATURE
11	7755451609	O-RING, HEAD PARBAK
12	7753000301	RING, WEAR
13	7794001598	SEAL	0.115
14	7794001600	SEAL, ROD	0.264
15	6753000306	RING, BACK-UP	0.450
16	7753000300	RING, WIPER	0.170
17	7110161605	CAPSCREW	0.090
18	7099000137	INSERT	0.045
19	7115182450	CAPSCREW
20	7949000235	WASHER 1/2 ID	0.006
21	7709000031	PLUG, SAE #6	0.032
22	7709000028	PLUG, SAE #4
23	7099000378	SET SCREW	7.940
24	7910014249	TUBE
25	7447161601	STRAIGHT THREAD	0.280
26	7709000026	PLUG, PIPE	0.163
27	7440000000	FITTING, GREASE 1/8"NPT	0.006
28	7440000200	FITTING, 45 DEGREE GREASE 118-
29	7373100009	KIT, CYLINDER SEAL	4.46
