Grove 9498100053 - RAIL ASSY.W/LATCH ASSY

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9498100053, 09498100053, 009498100053

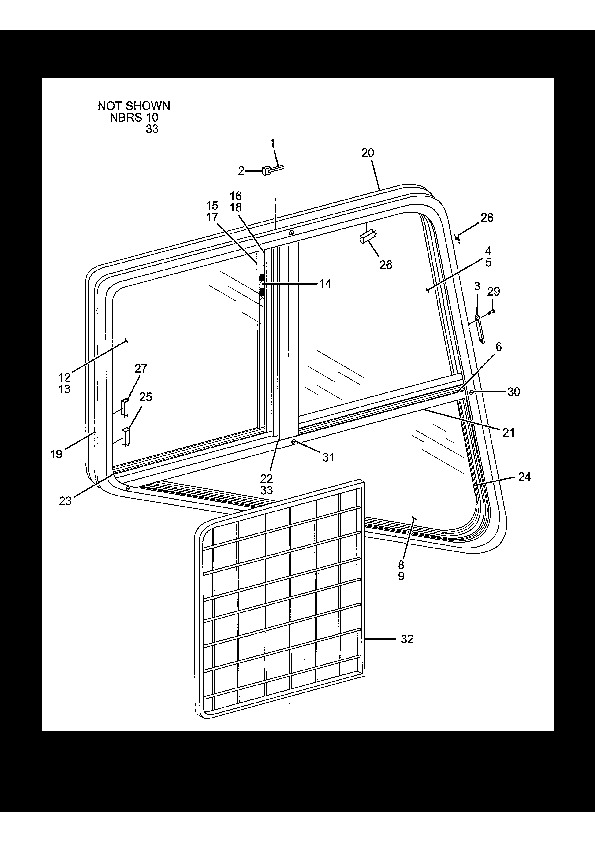

Parts for Grove TMS 700 E, Figure 7498000898:
Part Number 9498100053: RAIL ASSY.W/LATCH ASSY

Pos nr	Part number	Description	Weight in kg
1	9498100145	BRACKET, RAIL
2	9498100121	RETAINER, KEEPER
3	9498100122	NUT
4	9498100146	GLASS, STATIONARY
5	9498100147	GLASS, STATIONARY
6	9498100148	GLAZING, PVC
8	9498100149	GLASS ASSEMBLY
9	9498100150	GLASS
10	9498100151	GLAZING, PVC
12	9498100152	GLASS ASSEMBLY
13	9498100153	GLASS
15	9498100053	RAIL ASSY.W/LATCH ASSY	0.170
16	9498100156	SPRING	0.010
17	9498100154	HANDLE, LOCK
18	9498100155	LOCK
19	9498100157	FRAME, MAIN
20	9498100158	INNERLINER
21	9498100159	BAR, MULL
22	9498100160	KEEPER ASSEMBLY
23	9498100161	STOP, TRIM
24	9498100162	COVER, TRIM
25	9498100163	COVER, TRIM
26	9498100164	RUBBER, FLKD. REL.
27	9498100165	CHANNEL, RUBBER
28	9498100174	TAPE, BUYTL
29	9498100135	SCREW
30	9498100167	SCREW, PLASTIC
31	9498100168	SCREW 5/32 X 1 1/2
32	9498100169	GUARD
33	9498100170	SEAL
