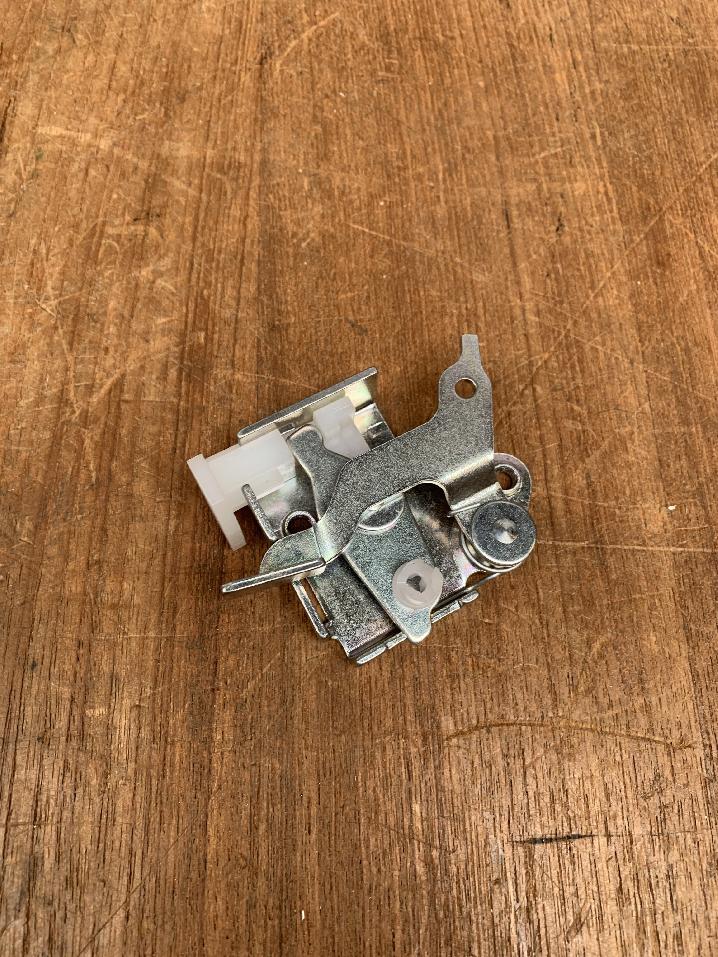

Grove 3134925 - LOCK LEFT HAND

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3134925, 03134925, 003134925

Parts for Grove GMK 4080-3, Figure 4271237-ETL:
Part Number 3134925: LOCK LEFT HAND

Pos nr	Part number	Description	Weight in kg
1	3134921	DOORHANDLE OUTSIDE	0.360
2	3200404	TAPPING SCREW	0.001
3	3134925	LOCK LEFT HAND	0.011
4	3226118	INTERNAL LOCKING RIGHT MGR	0.34
5	4282321	ROD DOOR LOCK LH
6	4282322	PLATE DOOR LOCK LH
7	4271268	PLATE HOLDER HANDLE
8	4271269	ROD LOCK 2
9	4271238	ROD LOCK 2
10	4271239	ROD LOCK RH
11	1577656	HEXAGON SCREW	0.005
12	1374620	WASHER	0.005
13	3044413	HEXAGON NUT
14	4271240	PLATE COVERLOCK LH
15	3323512	CABLE SLEEVE
16	3238705	HEXAGON SOCKET BUTTON HEAD SCREW
17	4160378	SLOTTED RAISED COUNTERSUNK FLANGE
18	4257205	PAN HEAD TAPPING SCREW	0.005
