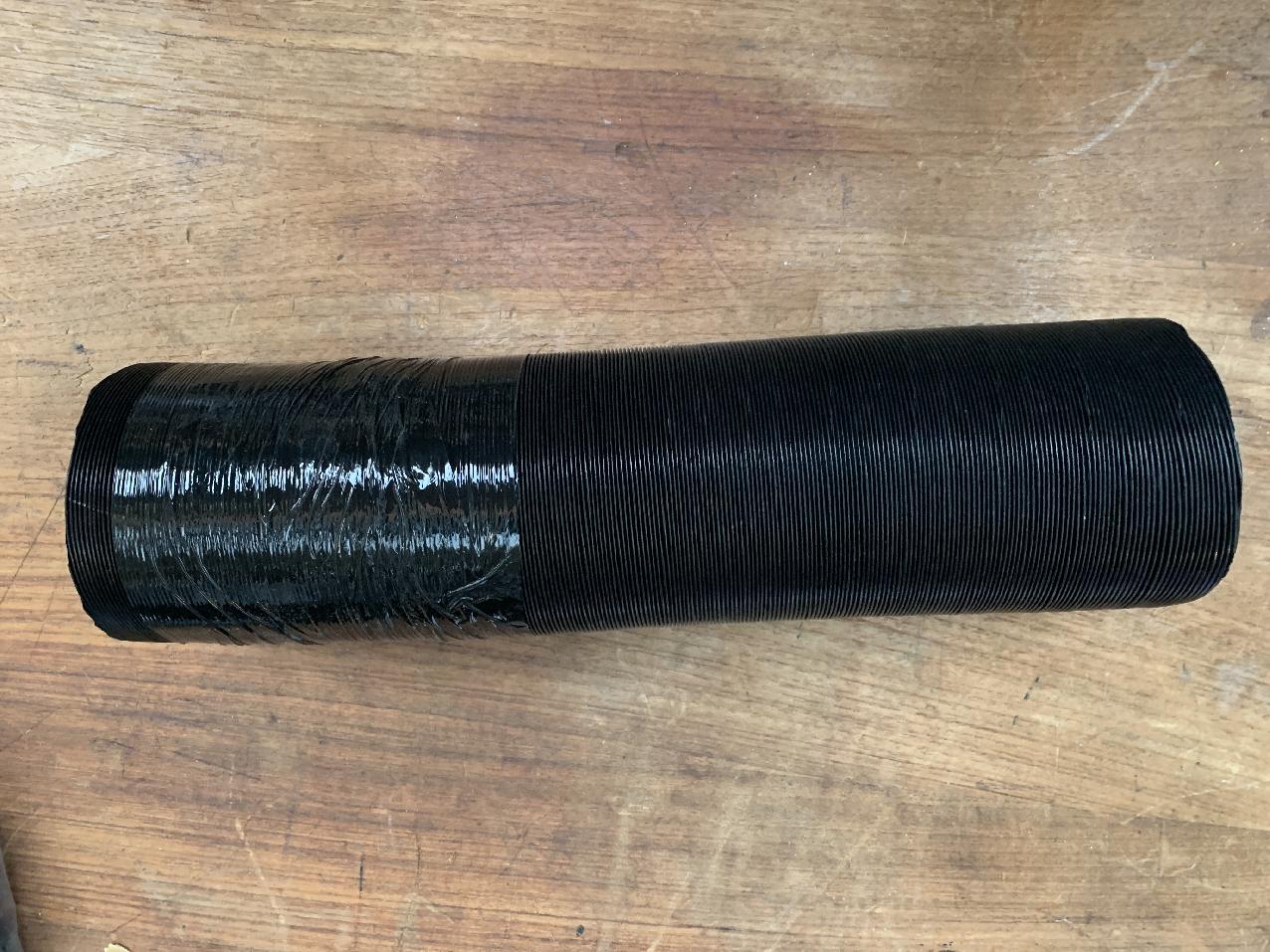

Grove 3139010 - WARM AIR HOSE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3139010, 03139010, 003139010

Parts for Grove GMK 4080-3, Figure 4292138-ETL:
Part Number 3139010: WARM AIR HOSE

Pos nr	Part number	Description	Weight in kg
1	4292139	HEATER ASSY
2	4230372	VENTILATING APLIANCE
3	4206764	ADAPTER AIR DUCT
4	3139726	LENSE FLANGE HEAD WITH HEXAGON SOCKET
5	0436029	WASHER 8	0.01
6	0027071	HEXAGON SCREW	0.010
7	3326470	AIR OUTLET	0.001
8	3318990	RIVET-NUT KNURLED M5X12,7	0.001
9	2313837	TAPPING SCREW M5X16	0.005
10	3312491	WIRE
11	4295641	WARM AIR DUCTING
12	4295642	WARM AIR DUCTING
13	4295643	WARM AIR DUCTING
15	3139010	WARM AIR HOSE	0.175
16	3132278	WARM AIR HOSE	0.265
17	1925398	HOSE CLAMP	0.050
18	2216281	HOSE CLAMP	0.07
19	3304261	SEAL HVAC
20	4292723	SEAL HVAC
21	3134897	CABLE CONNECTION
22	3134898	PIN CARRIER
