Demag 34385599 - SPRING WASHER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-1036 (Demag AC 155 )
Demag (Demag AC )
62-1218 (Demag CC 2800 )
62-6280 (Demag CC 2800 )
90-1036 (Demag CC 2800 )

Also known as:
34385599, 034385599, 0034385599

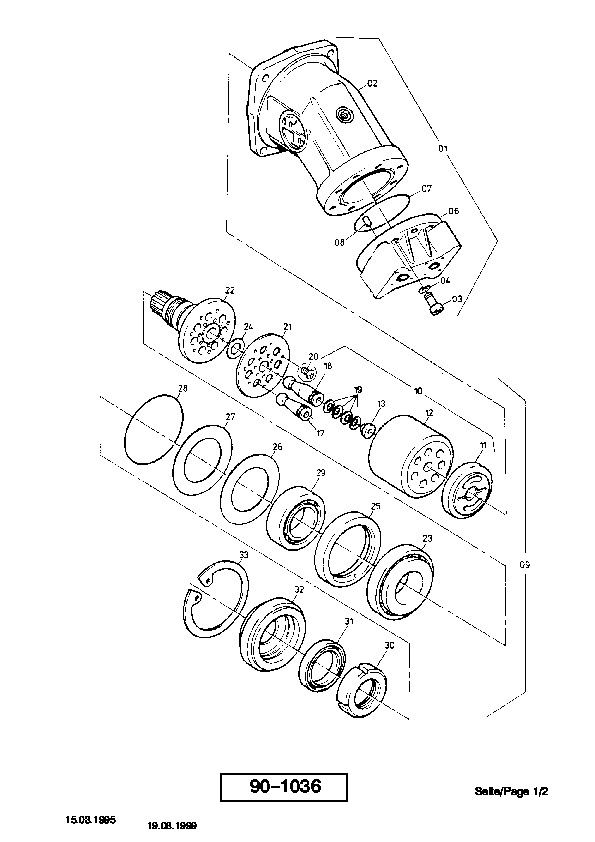

Parts for Demag AC 155, Figure 90-1036:
Part Number 34385599: SPRING WASHER

Pos nr	Part number	Description
	75781673	RING, ASSY.CONSIST. OF FIG-NOS: 31+32
1	51553940	HYDR.-MOTOR
2	75358800	HOUSING
3	31914799	SCREW
4	34385599	SPRING WASHER
6	75781273	CONNECTOR PLATE
7	97109600	RING
8	34477799	PARALLEL PIN
9	77181073	TRANSMISSION, ASSY. FIG-NOS. 10,20-32
10	75781373	TRANSMISSION, HYDR. PARTFIG-NOS. 11-13,17-19
11	77182973	CONTROL PLATE
12	77183073	CYLINDER
13	75781473	SPRING PLATE
17	77181573	PISTON
18	75359700	TRUNNION
19	75359600	CUP SPRING
20	50260798	SCREW
21	75446900	WITHDRAWEL PLATE
22	75675773	DRIVE SHAFT WITH BEARING SET
28	97219900	O-RING
31	75781573	SHAFT SEAL
32	75447100	COVER
33	34267199	RING
