Demag 34050999 - DISC NEW12640999

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-1794 (Demag AC 155 )
90-1795 (Demag AC 155 )
Demag (Demag AC )
62-1410 (Demag CC 2800 )
62-1905A (Demag CC 2800 )

Also known as:
34050999, 034050999, 0034050999

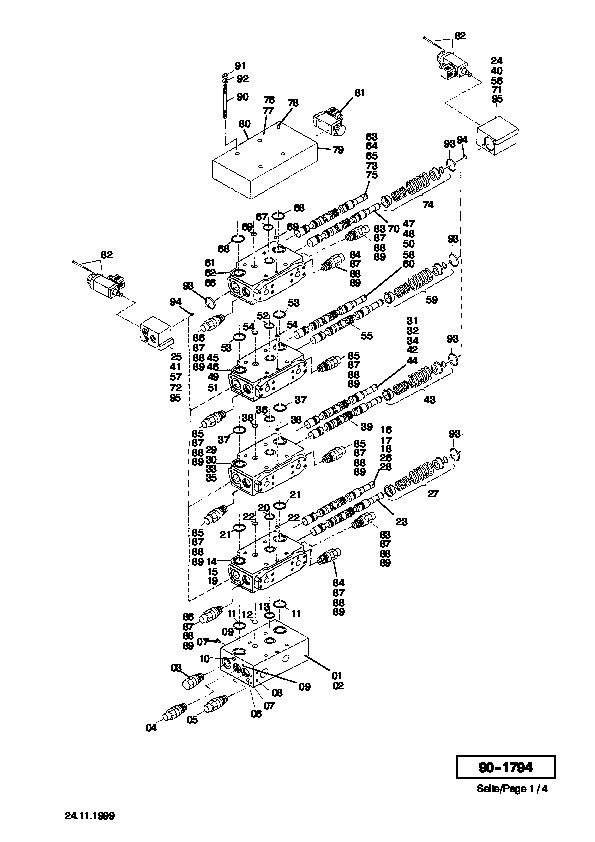

Parts for Demag AC 155, Figure 90-1794:
Part Number 34050999: DISC NEW12640999

Pos nr	Part number	Description
-	75789573	SEAL KIT
-	75803973	SEAL KIT
-	76090673	SEAL KIT
-	75804073	SEAL KIT
-	76502773	SEAL KIT
-	76502973	SEAL KIT
-	76502873	SEAL KIT TO FIG-NO. 76
-	97944873	MAGNET TO FIG-NO. 81
-	75806573	SEAL KIT TO FIG-NO. 83
0	55116440	CONTROL BLOCK, ASSY.
1	75803773	INTAKE SECTION ASSY. FIG-NOS. 02-10
2	76502673	SEAL KIT
3	75803873	VALVE
4	76266573	VALVE
5	75791973	VALVE
6	75804173	FILTER
7	75804273	COUPLING
8	75804373	PLUG
9	75471000	SCREW PLUG
10	75804473	PLUG
11	46193540	O-RING EF 51341098
12	96904300	O-RING
13	50426198	O-RING
14	75804573	INTERMEDIATE ELEMENT ASSY. FIG-NOS. 15-28
16	75804673	PIN
17	75804773	COMPRESSION SPRING
18	75804873	PLUG SCREW
19	75470800	PLUG
23	75804973	PISTON
24	75805073	COVER
25	75805173	COVER
26	75805273	PISTON
27	75805373	SPRING PACKAGE
28	75805473	PISTON
29	75805573	INTERMEDIATE ELEMENT ASSY. FIG-NOS. 30-44
33	75805673	PLUG
39	75805773	PISTON
44	75805873	PISTON
45	75805973	INTERMEDIATE ELEMENT ASSY. FIG-NOS. 46-60
55	75806073	PISTON
61	75786373	INTERMEDIATE ELEMENT ASSY. FIG-NOS. 62-75
70	75806173	PISTON
73	75605273	PISTON
76	75806273	END PLATE ASSY. FIG-NOS. 77-81
81	75806373	VALVE
82	63478440	SOLENOID VALVE
83	75806473	VALVE
84	75792173	VALVE
85	75792073	VALVE
86	75792273	VALVE
87	97123100	O-SEAL
88	99429600	O-RING EF96468100
89	75806673	SUPPORT RING
90	75806773	STUD
91	33220099	FRAME
92	34050999	DISC NEW12640999
93	51303498	O-RING
94	668598	O-RING
95	43127373	NUT
