Demag 33971499 - GASKET RING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
33971499, 033971499, 0033971499

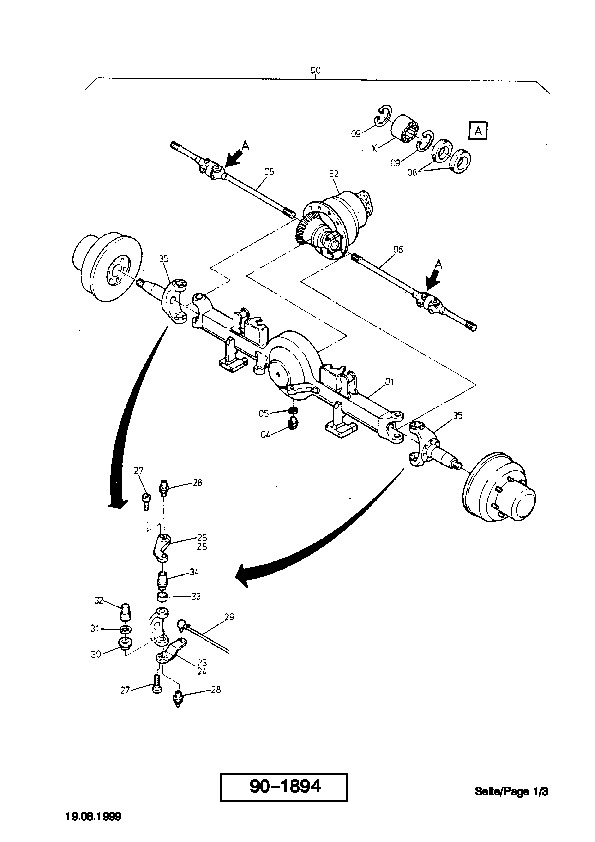

Parts for Demag AC 155, Figure 90-1894:
Part Number 33971499: GASKET RING

Pos nr	Part number	Description	Weight in kg
00	55276640	STEERING DRIVE AXLE
1	77816073	AXLE HOUSING
4	31339699	SCREW
5	33971499	GASKET RING	0.01
6	68829400	UNIVERSAL JOINT L=1417 MM
8	50542098	SHAFT SEAL	0.04
9	50021398	SNAP RING	0.02
10	50019198	NEEDLE BEARING
11	99741500	NUT
12	35036299	SCREW
13	36316799	BEARING
14	95734000	INSIDE RING
15	95733900	BEARING
16	674998	SEAL EF99450000
17	50020098	SHAFT SEAL EF 50163898
19	77237173	WHEEL HUB EF77992473	25
20	96572900	WHEEL STUD
21	77992573	BRAKE DRUM
22	32027199	SCREW
23	77127900	TRACK ROD LEVER, L.H.
24	77128000	TRACK ROD LEVER, R.H.
25	77815673	STEERING LEVER, L.H.
26	77815773	STEERING LEVER, R.H,
27	30761599	HEXAGON SCREW
28	35056299	GREASE NIPPLE	0.01
29	96574800	TUMBLER
30	95613900	BUSHING WITH DISC EF997111009
31	95614000	WASHER STEEL
32	77985873	STEER.KNUCKLE BOLT	2.22
33	95614200	BUSHING
34	95614300	BOLT EF76309673
35	77992873	STEERING KNUCKLE
