993-0772 (Demag AC 25 )

Also known as:
42110312, 042110312, 0042110312

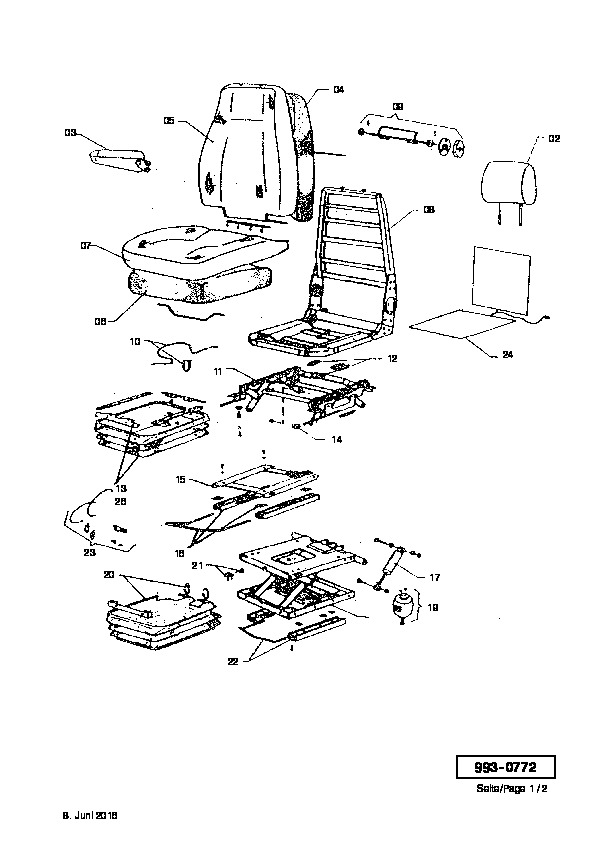

Parts for Demag AC 25, Figure 993-0772:
Part Number 42110312: NECK-REST

Pos nr	Part number	Description
-	00069412	OPERATOR
2	42110312	NECK-REST
3	42110412	ARMREST ASSY.
4	42110512	CUSHION
5	42110612	BACK COVER ASSY. KIT EF97826073
6	42110712	SEAT UPHOLSTERY
7	42110812	SEAT COVER KIT
9	42110912	LUMBAR SUPPORT KIT
10	42066512	BOWDENCABLE
11	42109912	HEIGHT RISER ASSY.KIT
12	42111912	SPRING KIT
13	42111112	FALTENBALG
14	42111212	CONTROL KNOB KIT
15	42111312	PLINTH KIT
16	42111412	RAIL SUPPORT
17	42110112	DAMPER
18	42110212	SUSPENSION
19	42111512	AIR SPRING KIT
20	42111612	GUARD
21	42112212	STOP
22	42111712	RAIL SUPPORT SET LOWER
23	42106612	AIR-VALVE-SET
24	42111812	SEAT HEATER
