Demag 21522099 - LOCK WASHER

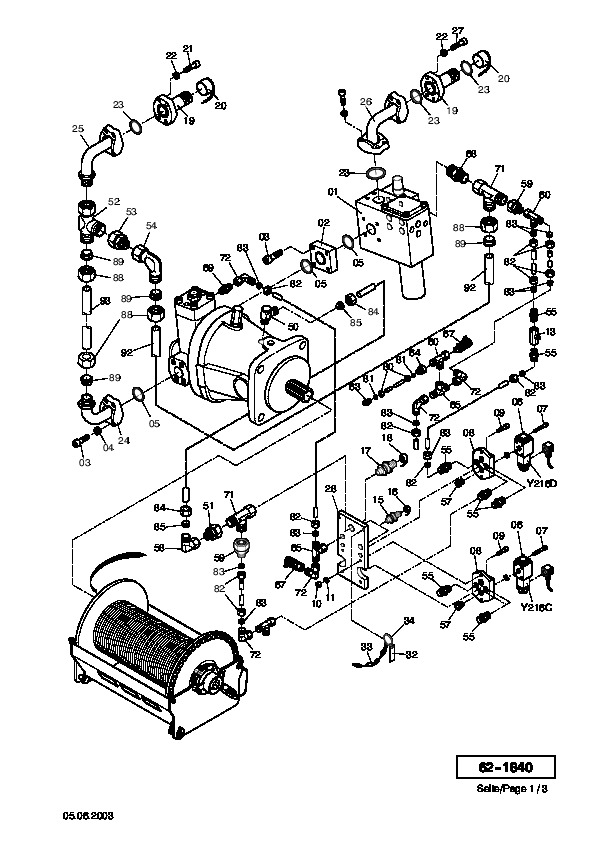

Pos nr	Part number	Description	Weight in kg
*	47268799	CHAIN
1	00059212	LOWERING BRAKE VALVE
2	00055812	ADAPTER
3	31928799	SCREW
4	34386699	SPRING WASHER
5	59257640	O-RING	0.01
6	22695940	VALVE
7	31917499	SCREW
8	18032540	BASE PLATE
9	31913299	SCREW
10	33220699	NUT
11	34385399	SPRING WASHER
12	25697740	PLANETARY CARRIER,ASSY.
13	22648040	VALVE
14	27082540	NOZZLE
15	56707440	SLEEVE
16	55158840	NUT
17	55159440	SLEEVE
18	55159640	NUT
19	00056212	COUPLING SLEEVE
20	00057712	LOCK NUT
21	31928899	HEXSOCK SCREW
22	34650299	DISK
23	59258140	SEAL
24	00056012	PIPE BEND
25	00056112	PIPE BEND
26	00055912	PIPE BEND
27	31929899	SCREW
28	13100812	SHEET
29	30759799	SCREW
30	33462699	NUT
31	34385499	SPRING WASHER
32	25357740	PLATE
34	24342040	RING
50	00066312	SOCKET
51	55140440	SOCKET	0.19
52	62101140	SOCKET
53	62101340	SOCKET
54	55148040	SOCKET
55	59213540	SOCKET
57	25569440	PISTON
58	57643840	SOCKET
59	57640640	SOCKET
60	55138040	SOCKET
63	55161640	SOCKET
64	55137940	SOCKET
65	62179640	SOCKET
66	50275298	SUPPORT EF50275240
67	15364640	TEST UNION
68	55130640	SOCKET	0.1
69	63439340	SOCKET
70	00048212	SOCKET
71	57646940	SOCKET
72	55195840	SOCKET
73	18011340	PLUG NEW#18011399
80	37127399	UNION NUT ED63474940
81	37124099	OLIVE
82	37127499	UNION NUT
83	37124199	OLIVE
84	37127699	UNION NUT
85	37124399	OLIVE
86	51001798	UNION NUT
87	37124499	OLIVE
88	37128099	NUT
89	37124799	OLIVE
92	21522099	LOCK WASHER
93	21550699	TUBE
