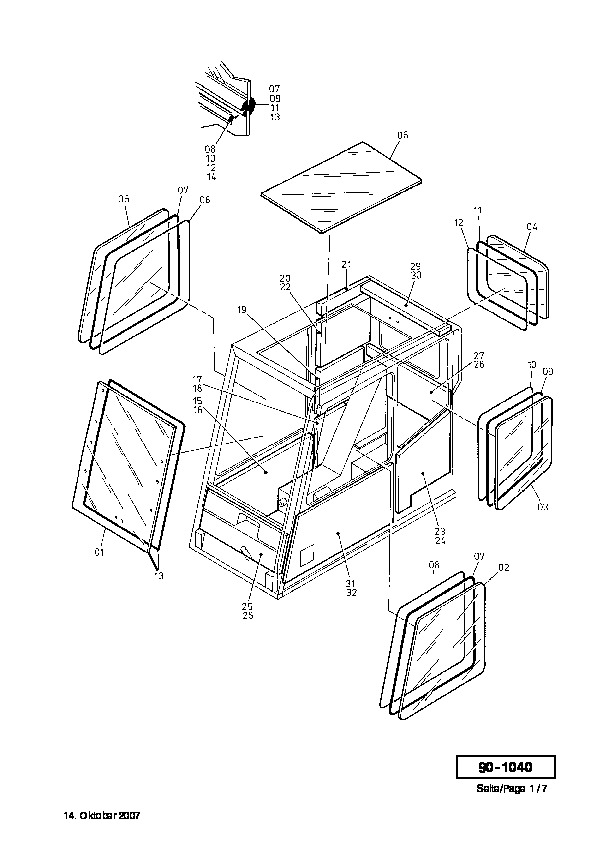

Parts for Demag AC 155, Figure 90-1040:
Part Number 35029599: SCREW
Pos nr Part number Description Weight in kg
99607973 PUMP, WATER
- 52850440 CAB, ASSY.
1 56560240 FRONTGLASS
2 56560540 DOOR WINDOW GLASS
3 56560040 SIDE GLASS LEFT
4 56560340 REAR PANE
5 56560440 SIDE WINDOW R.H.
6 56560140 ROOF WINDOW
7 69858973 JAM PROFILE
8 69859073 FILLER PROFILE
13 76236973 FRONT WINDOW
15 69858873 FOAM INSULATING LOARDING
16 69857173 PLASTIC SHEATING
17 69858773 FOAM INSULATING LOARDING
18 69857273 PLASTIC SHEATING
19 69858673 FOAM INSULATING LOARDING
20 69858573 FOAM INSULATING LOARDING
21 69858473 FOAM INSULATING LOARDING
22 69857373 PLASTIC SHEATING
23 69858373 FOAM INSULATING LOARDING
24 69857473 PLASTIC SHEATING
25 69858273 FOAM INSULATING LOARDING
26 69857573 PLASTIC SHEATING
27 69858173 FOAM INSULATING LOARDING
28 69857673 PLASTIC SHEATING
29 69858073 FOAM INSULATING LOARDING
30 69057773 PLASTIC SHEATING
31 69857973 FOAM INSULATING LOARDING
32 69857873 PLASTIC SHEATING
33 69856973 WIPER MOTOR
34 49069840 WIPER ARM
35 49070640 BRUSH
36 69857073 WIPER MOTOR
37 49070240 WIPER ARM
38 49070340 GUIDE ARM
39 69856473 BRUSH
40 69856373 ADAPTER
41 19648840 TECALAN TUBE
42 69856273 VALVE
43 46163540 WATER CAN WITH PUMP 0.762
44 31838099 BOLT
45 76230773 SUN VISOR
45 76257073 SUN VISOR TRANSPARENT
46 35029599 SCREW
47 69856173 DOCUMENT BOX
48 69856073 DOME LAMP
49 69855973 BULB
50 31837998 BOLT
51 16769840 HOOK
52 69055873 LOCK PIN
53 50478498 SCREW
54 34090499 WASHER
55 33464999 NUT
56 69855773 LOCKING PLATE
57 69855673 LOCK PIN
58 31837598 BOLT
59 34046199 DISC
60 34310699 SPRING WASHER
61 34046399 DISC
62 69855573 SAFETY COLLAR
63 69855473 SPEAKER
64 69855373 ANTENNA
65 46156240 CABLE
66 69855173 GAS OPER.POSITION
67 69855073 HANDLE
68 69854973 KNOCK OUT
69 69854873 SPACER
70 69854773 SAFETY GRATING
71 76220173 DOOR HANDLE
72 69854573 LINKAGE
73 69854473 LOCK PIN
74 69854373 HANDLE
75 76196673 DOOR
76 22697240 NOZZLE
77 76230973 DOOR LOCK
78 49037840 NOZZLE
79 76244373 NYLON-ROLLER
80 76244473 GUIDE RAIL
81 76244573 GUIDE RAIL
82 76244673 DISTANCE SLEEVE
83 97838973 WASHER
84 76237173 PROFILE
85 76237273 PROFILE
87 97965873 WIPER-GEAR
88 44201912 PLASTIC WASHER
89 44202012 PLASTIC WASHER
90 47196412 WASHER
100 61155240 CHAUFFAGE RP 30037512
102 76216673 EXHAUST STUB
103 76216773 INTAKE GRILLE
104 97543473 AIR DISTRIB.FLAP
105 76216873 BOWDEN CABLE
106 76216973 CONTROL SWITCH
107 97536300 PIPE BEND
108 76210973 ADAPTER
109 97535000 HOSE CLIP
110 97536500 HOSE
111 76210673 BASE
112 97542073 3/2- DIRECTIONAL SLENOID VALVE
113 76217073 FLEX. PIPE
